拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，四脚贴片晶振，石英晶体谐振器，无源贴片晶振，进口石英晶体，编码为：H13-6.000-16-5050-EXT-TR，频率：6 MHz，频率稳定为：±50ppm，频率公差为：±50ppm，负载电容为：16 PF，工作温度范围：-30℃至+85℃，晶振体积尺寸为：7.0x5.0mm，贴片石英晶振，欧美无源贴片晶振，美国拉隆无源晶体谐振器，H13系列石英晶振，该产品采用SMD编带盘装包装方式，焊接可以采用自动贴片系统，满足无铅高温回流焊接曲线，从而提高晶振生产效率，节省人工成本。

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，四脚贴片晶振，石英晶体谐振器，无源贴片晶振，进口石英晶体，编码为：H13-6.000-16-5050-EXT-TR，频率：6 MHz，频率稳定为：±50ppm，频率公差为：±50ppm，负载电容为：16 PF，工作温度范围：-30℃至+85℃，晶振体积尺寸为：7.0x5.0mm，贴片石英晶振，欧美无源贴片晶振，美国拉隆无源晶体谐振器，H13系列石英晶振，该产品采用SMD编带盘装包装方式，焊接可以采用自动贴片系统，满足无铅高温回流焊接曲线，从而提高晶振生产效率，节省人工成本。

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
H13-6.000-16-5050-EXT-TR	拉隆晶振	H13	6 MHz	±50ppm	±50ppm	16pF	-30°C ~ 85°C	7.00mm x 5.00mm

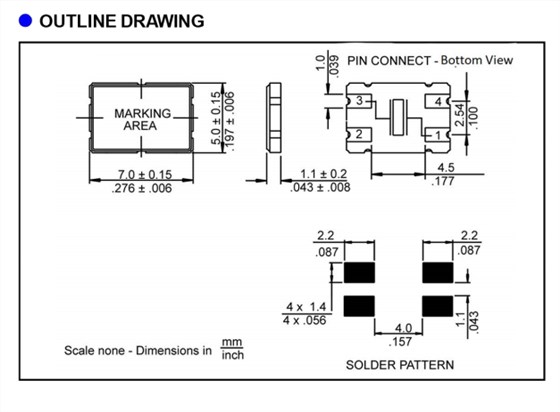

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，尺寸图

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
H13-6.000-16-5050-EXT-TR	Raltron Crystal	H13	6 MHz	±50ppm	±50ppm	16pF	-30°C ~ 85°C
