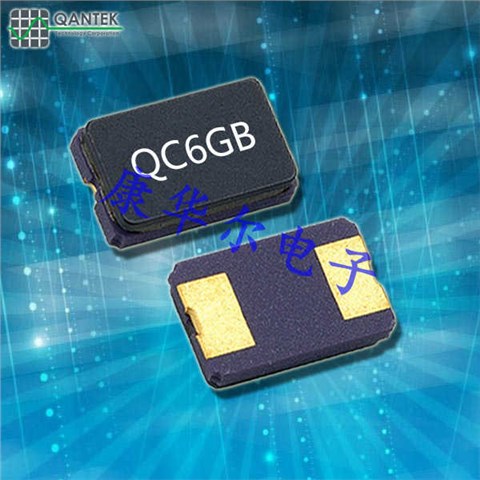

QC5GB,QC5GB12.0000F12B33R,5032mm,12MHz,Qantek康泰克晶振，美国进口晶振，Qantek康泰克晶振，型号：QC5GB系列晶振，编码为：QC5GB12.0000F12B33R，频率为：12.000MHz，小体积晶振尺寸：5.0x3.2mm陶瓷SMD封装，普通接缝密封包装的低成本替代品，通过豁免符合RoHS，两脚贴片晶振，5032晶振，无源晶振，陶瓷晶振，石英晶体谐振器，石英晶振，SMD晶体，无铅环保晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，紧密的公差和稳定性，耐热及耐环境等特点。无源贴片晶振，适用于：计算机外围设备，机顶盒、电视机，办公室自动化，音频和视频，通讯设备等应用。
QC5GB,QC5GB12.0000F12B33R,5032mm,12MHz,Qantek康泰克晶振,参数表
Frequency Range
12.000MHz
Mode of Oscillation
Fundamental
8.000 to 54.000MHz
Third Overtone
40.000 to 60.000MHz
Frequency Tolerance at 25°C
±20 to ±50ppm (±30ppm standard)
Frequency Stability over Temperature Range
See Stability vs. Temperature Table
Storage Temperature
-55 to +125°C
Aging per Year
±3ppm
Load Capacitance CL
8 to 32pF and Series Resonance
Shunt Capacitance C0
5.0pF max.
Equivalent Series Resistance (ESR)
See ESR Table
Drive Level
100μW TYP, 300μW max.
Insulation Resistance (MΩ)
500 at 100Vdc ±15Vdc

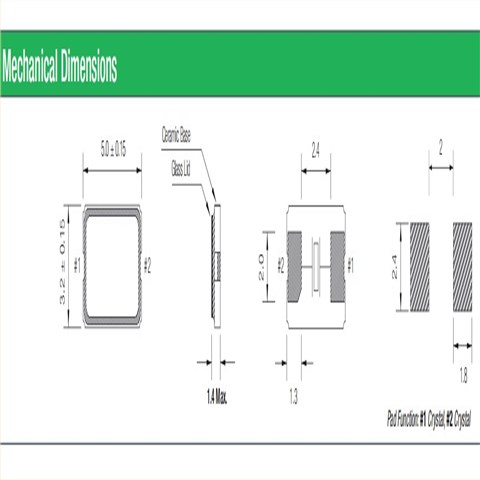

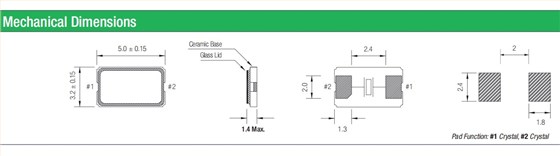

QC5GB,QC5GB12.0000F12B33R,5032mm,12MHz,Qantek康泰克晶振,尺寸图
QC5GB,QC5GB12.0000F12B33R,5032mm,12MHz,Qantek康泰克晶振
产品特点：
外形尺寸：5.0x3.2mm石英晶振
频率范围：8MHz~60MHz
普通接缝密封包装的低成本替代品
通过豁免符合RoHS
应用程序：
计算机外围设备
机顶盒、电视机
办公室自动化
音频和视频
