Aker安碁无源晶振,C3E-25.000-8-1010-R,微处理器6G晶振

频率：25.0000 MHz

尺寸：3.2x2.5mm

Aker安碁无源晶振,C3E-25.000-8-1010-R,微处理器6G晶振，台湾AKER安碁晶振，C3E系列编码为：C3E-25.000-8-1010-R，频率为：25.0000 MHz，小体积晶振尺寸：3.2x2.5mm，四脚贴片晶振，无源贴片晶振，石英晶体谐振器，石英贴片晶振，标称频率25.000MHz，负载电容8pF，1010：±10PPM频率容差和±10PPM频率稳定，R：磁带和卷轴包装- 1000pcs卷轴。C3E系列具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境等特点。3225晶振应用于：移动通讯设备，汽车电子设备，车载控制器，可穿戴设备，无线网络，蓝牙模块，智能手机，平板电脑，仪器仪表设备，医疗设备，安防设备，数码电子等应用。

订购热线：0755-27838351

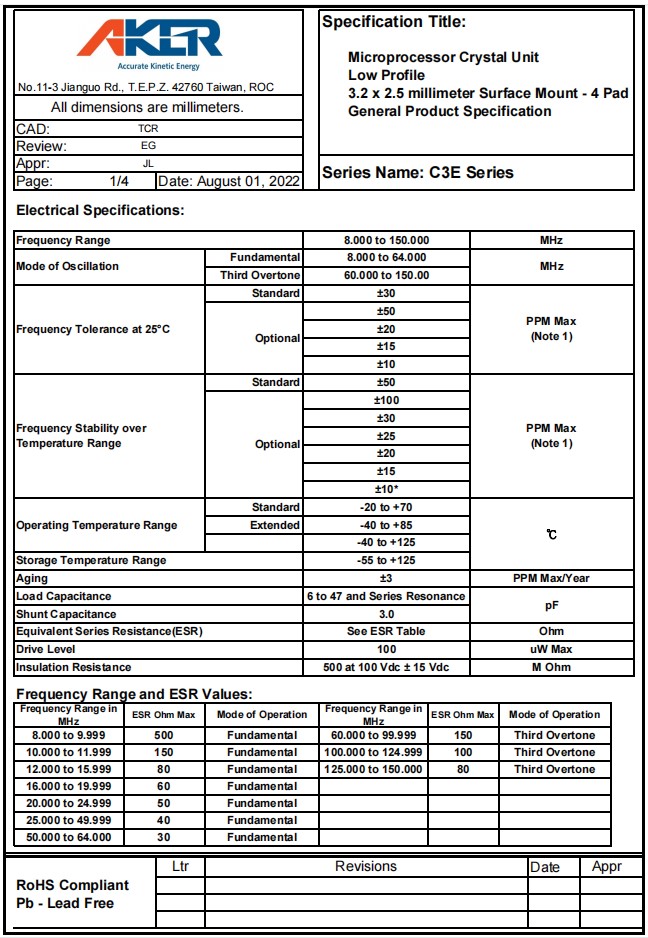

Aker安碁无源晶振,C3E-25.000-8-1010-R,微处理器6G晶振，参数表

Frequency Range		8.000 to 150.000	MHz
Mode of Oscillation	Fundamental	8.000 to 64.000	MHz
	Third Overtone	60.000 to 150.00
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
		±10*
Operating Temperature Range	Standard	-20 to +70	℃
	Extended	-40 to +85
		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		6 to 47 and Series Resonance	pF
Shunt Capacitance		3.0
Equivalent Series Resistance(ESR)		See ESR Table	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm

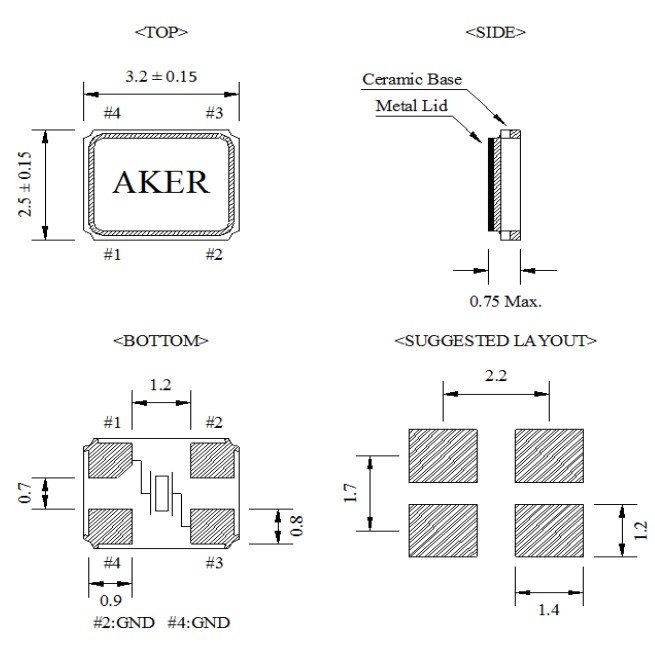

Aker安碁无源晶振,C3E-25.000-8-1010-R,微处理器6G晶振，尺寸图

Aker安碁无源晶振,C3E-25.000-8-1010-R,微处理器6G晶振

3225mm体积非常小的SMD石英晶振器件,是民用小型无线数码产品的最佳选择,小体积的晶振被应用于,手机蓝牙,GPS定位系统,无线通讯集,高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.

晶振料号	品牌	描述	系列	频率
C3E-16.000-18-3030-X-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 18PF SMD	C3E	16 MHz
C3E-20.000-12-3030-X-R	Aker安碁晶振	CRYSTAL 20.0000MHZ 12PF SMD	C3E	20 MHz
C3E-16.000-12-3030-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-25.000-18-3030-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-18-3030-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-18-2030-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-8-3030-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-25.000-8-1010-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-25.000-8-1520-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-16.000-12-3030-X-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-32.000-10-1010-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-12.000-8-1520-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-32.000-12-1010-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-25.000-8-1015-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-12.000-18-3030-X-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-12-3030-X-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 12PF SMD	C3E	25 MHz
C3E-25.000-10-3030-X-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 10PF SMD	C3E	25 MHz
C3E-24.000-8-1015-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 8PF SMD	C3E	24 MHz
C3E-24.000-10-1010-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-32.000-12-1530-X-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-12.000-8-1010-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-16.000-8-1015-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-32.000-10-1015-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-24.000-12-1530-X-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-12-3030-X-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-18-1010-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz
C3E-20.000-10-1530-X-R	Aker安碁晶振	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz
C3E-25.000-8-1530-X-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-24.000-12-1015-X-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-10-1015-X-R	Aker安碁晶振	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-16.000-12-1015-X-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-40.000-10-1015-X-R	Aker安碁晶振	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz
C3E-32.000-8-1015-X-R	贴片晶振	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz
C3E-32.000-10-1015-X-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-32.000-12-1015-X-R	Aker安碁晶振	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-8.000-10-3030-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-10-3030-X-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-18-3030-X-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-18-3030-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-16.000-12-1015-X-M	Aker安碁晶振	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-24.000-9-1010-R	Aker安碁晶振	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-12.000-12-1020-X-R	Aker安碁晶振	CRYSTAL 12MHZ 12PF SMD	C3E	12 MHz
C3E-12.000-18-1020-X-R	Aker安碁晶振	CRYSTAL 12MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-20-1015-X-R	Aker安碁晶振	CRYSTAL 25MHZ 20PF SMD	C3E	25 MHz
C3E-24.000-9-1015-X-R	Aker安碁晶振	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-16.000-9-1015-X-R	Aker安碁晶振	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C3E-8.000-20-1020-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-8.000-18-1020-X-R	Aker安碁晶振	CRYSTAL 8MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-8-1015-R	Aker安碁晶振	CRYSTAL 8MHZ 8PF SMD	C3E	8 MHz
C3E-8.000-18-1020-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-12-1020-M	Aker安碁晶振	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz
C3E-8.000-10-1020-M	Aker安碁晶振	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz
C3E-24.576-12-3030-X-R	Aker安碁晶振	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-30.000-12-1020-X-R	Aker安碁晶振	CRYSTAL 30MHZ 12PF SMD	C3E	30 MHz
C3E-12.000-12-1015-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-25.000-8-1015-X-R	Aker安碁晶振	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-26.000-10-1015-X-R3	Aker安碁晶振	CRYSTAL 26.0000MHZ 10PF SMD	C3E	26 MHz
C3E-8.000-12-1020-R	Aker安碁晶振	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-12.000-12-3030-X-R	Aker安碁晶振	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-27.120-12-1010-R	Aker安碁晶振	CRYSTAL 27.1200MHZ 12PF SMD	C3E	27.12 MHz
C3E-24.576-12-1010-R	Aker安碁晶振	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-16.000-12-1015-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-13.560-12-1530-X-R	Aker安碁晶振	CRYSTAL 13.5600MHZ 12PF SMD	C3E	13.56 MHz
C3E-27.120-12-1020-X-R	Aker安碁晶振	CRYSTAL 27.120MHZ 12PF SMD	C3E	27.12 MHz
C3E-16.000-9-1010-R	Aker安碁晶振	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C3E-16.000-8-50100-X1-R	Aker安碁晶振	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
