爱普生HCSL差分晶振EG-2102CA,X1M0000910009,低抖动6G无线晶振

频率：312.500000MHz

尺寸：7.0x5.0mm

爱普生HCSL差分晶振EG-2102CA,X1M0000910009,低抖动6G无线晶振，日本进口晶振，EPSON爱普生株式会社，型号为：EG-2102CA，编码为：X1M0000910009，频率为：312.500000MHz，小体积晶振尺寸为7.0x5.0mm，HCSL输出差分晶体振荡器，六脚贴片晶振，电源电压3.3V，能够轻易识别网络信号以及精确的处理双极信号。高性能有源晶体，具有超小型，轻薄型，低抖动，低功耗，低损耗，低相位噪声，低电源电压，满足产品低消耗电流的特点。应用于：通讯设备晶振，工业控制，消费电子，智能安防，无线网络，蓝牙模块，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，安防设备及各种频率控制设备上。

订购热线：0755-27838351

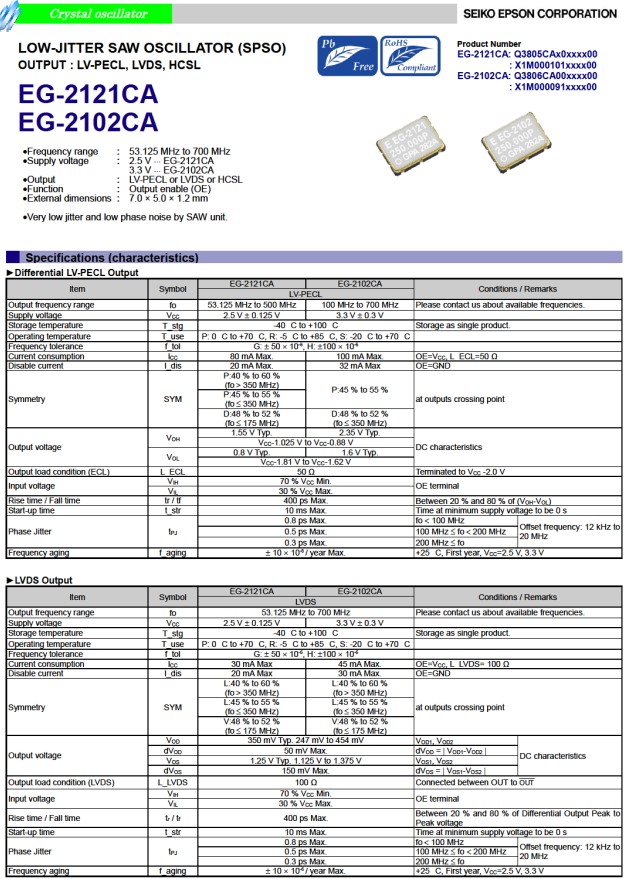

爱普生HCSL差分晶振EG-2102CA,X1M0000910009,低抖动6G无线晶振，参数表

型号		EG-2102CA 参数说明
Item	Symbol	HCSL	Conditions/Remarks
Output frequency range	f0	312.500MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ± 0.125V
Storage temperature	T_stg	-40°C to +125°C	Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C ,
		R : -5°C to +85°C ,
		S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6
		H : ±100 × 10-6
Current consumption	ICC	80mA Max.	OE = VCC , L_HCSL = 50Ω
Disable current	I_dis	20mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75V Typ.	DC characteristics
	VOL	-0.3V Typ.
Output load condition	L_HCSL	50Ω	Terminated to GND
(HCSL)
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
Rise time / Fall time	tr / tf	500ps Max.	Between 0.175V and 0.525V of output
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.8ps Max.	f0 < 100MHz	Offset frequency:
		0.5ps Max.	100MHz ≦ f0 < 200MHz	12kHz to 20MHz
		0.3ps Max.	200MHz ≦ f0
Frequency aging	f_aging	± 10 × 10-6 / year Max.	+25°C , First year , VCC = 2.5V

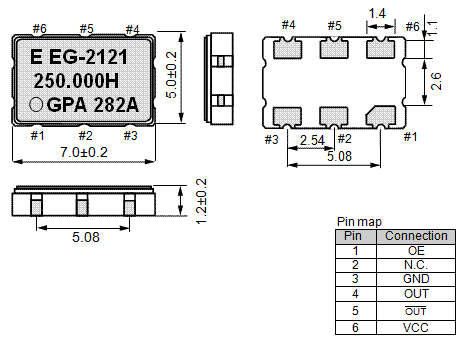

爱普生HCSL差分晶振EG-2102CA,X1M0000910009,低抖动6G无线晶振，尺寸图

爱普生HCSL差分晶振EG-2102CA,X1M0000910009,低抖动6G无线晶振

差分晶振有不同的输出信号，LV-PECL，LVDS，HCSL，是差分输出晶振通用的输出信号.一般为六脚晶振，能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的.实现高频高精度等要求，更加保障了各种系统参考时钟的可靠性，具有高性能，低功耗，低噪声，低抖动，低损耗等特点.被广泛用于通讯设备，机顶盒，光端机，安防设备及各种频率控制设备上.
