爱普生LVDS差分晶振EG-2102CB,X1M0002210004,6G光模块应用晶振

频率：266.500000 MHz

尺寸：5.0x3.2x1.2mm

爱普生LVDS差分晶振EG-2102CB,X1M0002210004,6G光模块应用晶振，日本进口晶振，EPSON爱普生株式会社，型号为：EG-2102CB，编码为：X1M0002210004，频率为：266.500000 MHz，小体积晶振尺寸为5.0x3.2x1.2mm，六脚贴片晶振，LVDS输出差分晶体振荡器，电源电压3.3V，具有超小型，轻薄型，低抖动，低功耗，低损耗，低相位噪声，低电源电压，满足产品低消耗电流的特点，能够轻易识别网络信号以及精确的处理双极信号。EG-2102CB有源晶振应用于：通讯设备晶振，无线网络，蓝牙模块，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，光模块，以太网，安防设备及各种频率控制设备上。

订购热线：0755-27838351

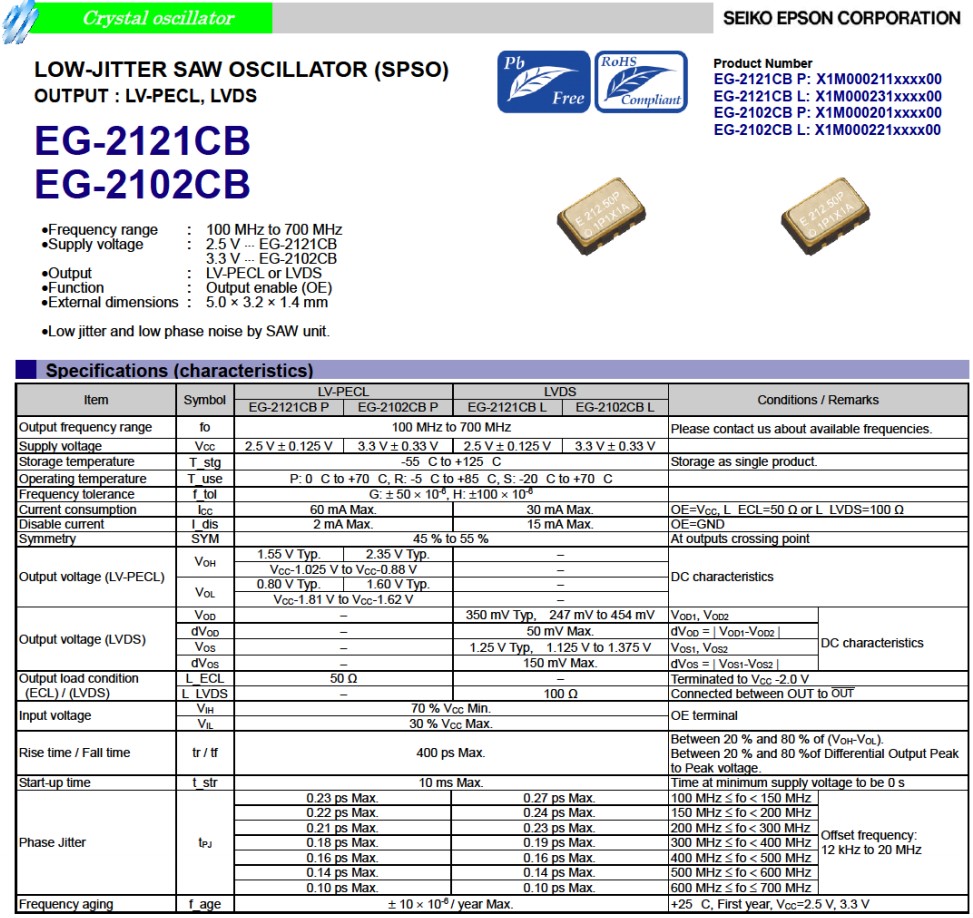

爱普生LVDS差分晶振EG-2102CB,X1M0002210004,6G光模块应用晶振，参数表

型号		EG-2102CB 参数说明
Item	Symbol	LVDS	Conditions/Remarks
Output frequency range	f0	266.500000MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ± 0.125V
Storage temperature	T_stg	-40°C to +100°C	Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C
		R : -5°C to +85°C
		S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6
		H : ±100 × 10-6
Current consumption	ICC	30mA Max.	OE = VCC , L_LVDS = 100Ω
Disable current	I_dis	20mA Max.	OE = GND
Symmetry	SYM	L : 40% to 60%	at outputs crossing point
		( f0 > 350MHz )
		L : 45% to 55%
		( f0 ≦ 350MHz )
		V : 48% to 52%
		( f0 ≦ 175MHz )
Output voltage	VOD	350mV Typ.	VOD1 , VOD2	DC characteristics
		247mV to 454mV
	dVOD	50mV Max.	dVOD = \| VOD1 - VOD2 \|
	VOS	1.25V Typ.	VOS1 , VOS2
		1.125V to 1.375V
	dVOS	150mV Max.	dVOS = \| VOS1 - VOS2 \|
Output load condition	L_LVDS	100Ω	Connected between OUT to OUT
(LVDS)
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
Rise time / Fall time	tr / tf	400ps Max.	Between 20% and 80% of Differential Output peek to peek voltage
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.8ps Max.	f0 < 100MHz	Offset frequency:
		0.5ps Max.	100MHz ≦ f0 < 200MHz	12kHz to 20MHz
		0.3ps Max.	200MHz ≦ f0
Frequency aging	f_aging	± 10 × 10-6 / year Max.	+25°C , First year , VCC = 2.5V

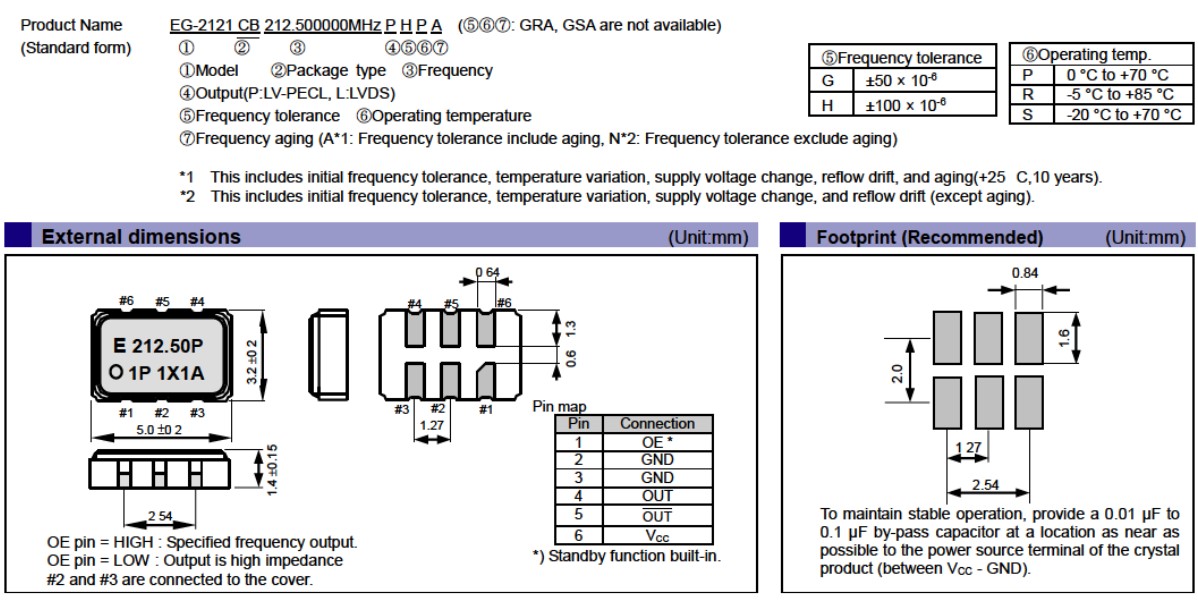

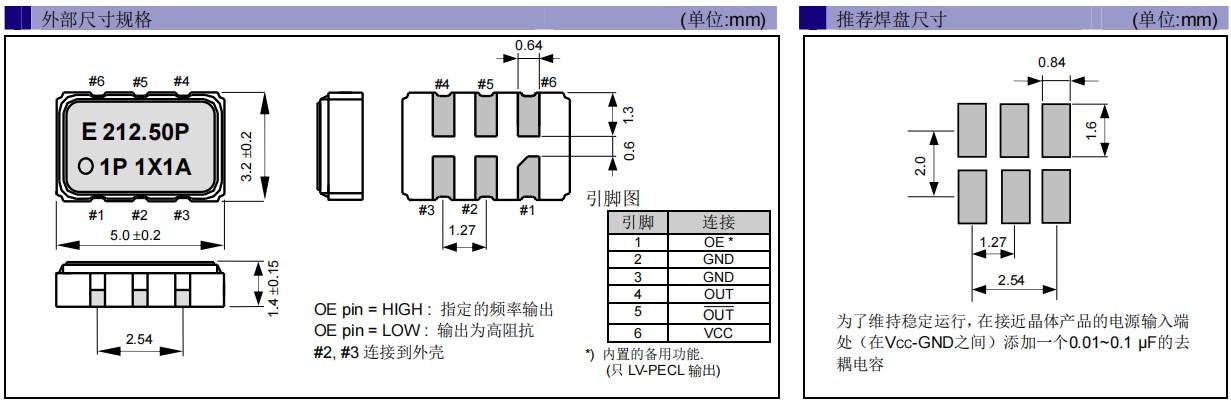

爱普生LVDS差分晶振EG-2102CB,X1M0002210004,6G光模块应用晶振，尺寸图

爱普生LVDS差分晶振EG-2102CB,X1M0002210004,6G光模块应用晶振

LVDS差分晶振我们可以称为是一种低电压差分信号，主要就是一种低功耗、低误码率、低串扰和低辐射的差分信号技术。其中LVDS的核心技术主要是采用了一种非常低的电压摆幅高速差来传输数据，实现点对点或者点对多的连接，传输的介质一般是pcb连线或者平衡电缆。

EG-2121CB，EG-2102CB -1

进口有源晶体	型号	频率	尺寸	输出方式	电源电压	工作温度
X1M0001210001	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	3.000 to 3.600 V	-5 to 85 °C
X1M0002210002	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210003	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210004	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210005	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210006	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210007	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002210008	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210009	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210010	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210011	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002310002	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310003	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310004	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310005	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310006	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0002310007	EG-2121CB	133.000000 MHz	5032晶振	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310010	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310011	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310013	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310014	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310015	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310016	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310017	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310018	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310019	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310020	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310021	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002810003	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810004	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810006	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
