XG-2121CAP差分晶体振荡器,X1M0003110032,EPSON低抖动6G无线晶振

频率：250.000000 MHz

尺寸：7.0x5.0mm

XG-2121CAP差分晶体振荡器,X1M0003110032,EPSON低抖动6G无线晶振，日本进口晶振，EPSON爱普生晶振，型号XG-2121CA系列，编码为：X1M0003110032，频率为：250.000000 MHz，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，低抖动表面声波(SAW)振荡器 (SPSO) ，SAW单元极低的抖动振荡器，LV-PECL输出差分晶体振荡器，石英晶振，有源晶振，石英晶体振荡器，具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声等特点，能够轻易识别网络信号以及精确的处理双极信号。XG-2121CA有源晶振被广泛应用于：通讯设备晶振、机顶盒、GPS定位系统，无线网络，蓝牙模块，光端机、安防设备、路由器/交换机、仪器仪表、物联网，数码产品等应用。

订购热线：0755-27838351

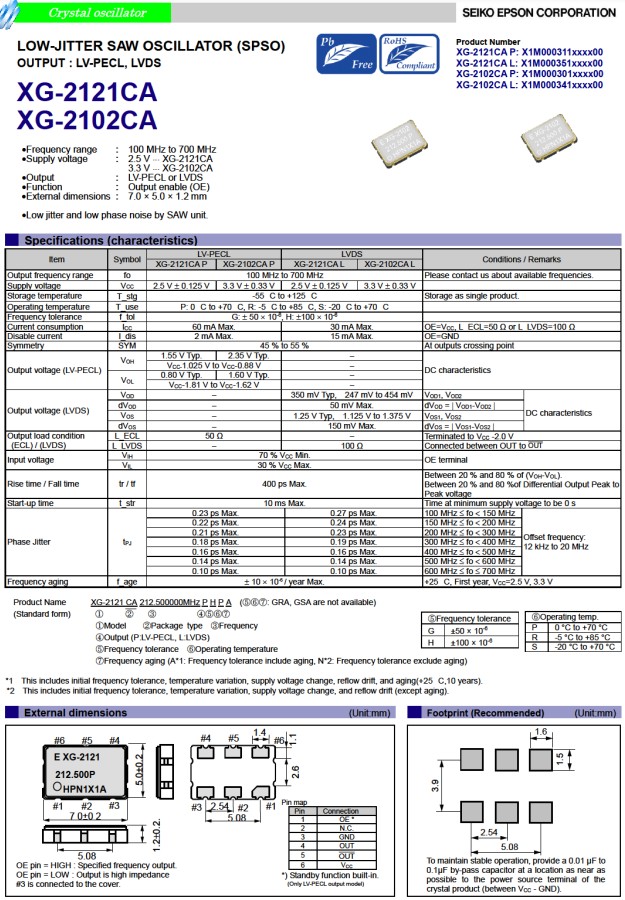

XG-2121CAP差分晶体振荡器,X1M0003110032,EPSON低抖动6G无线晶振，参数表

项目	符号	LV-PECL		LVDS		条件
		XG-2121CAP	XG-2102CAP	XG-2121CAL	XG-2102CAL
输出频率范围	f0	100 MHz ~ 700 MHz				请联系我们以便获取其它可用频率的相关信息
电源电压	VCC	2.5V 土0.125V	3.3V 土0.33V	2.5V 土0.125V	3.3V 土0.33V
储存温度	T_stg	-55℃ ~ +125℃				裸存
工作温度	T_use	P:0℃ ~ +70℃ ,R:-5℃ ~ +85℃ ,S:-20℃ ~ +70℃
频率稳定度	f_tol	G: 土 50 x 10-6 ,H: 土100 x 10-6
功耗	ICC	60 mA Max.		30 mA Max.		OE=Vcc, L_ECL=50 Ω or L_LVDS=100 Ω
输出禁用电流	I_dis	2 mA Max.		15 mA Max.		OE=GND
占空比	SYM	45 % ~ 55 %				在输出交叉点
输出电压 (LV-PECL)	VOH	1.55 V Typ.	2.35 V Typ.			DC 特征
		VCC-1.025 V ~ VCC-0.88 V		一
	VOL	0.80 V Typ.	1.60 V Typ.
		VCC-1.81 V ~ VCC-1.62 V
输出电压 (LVDS)	VOD			350 mV Typ, 247 mV ~ 454 mV		VOD1 , VOD2	DC 特征
	dVOD			50 mV Max.		dVOD = \| VOD1-VOD2 \|
	VOS	一		1.25 V Typ, 1.125 V ~ 1.375 V		VOS1 , VOS2
	dVOS	一		150 mV Max.		dVOS = \| VOS1-VOS2 \|
输出负载条件 (ECL) / (LVDS)	L_ECL	50 Ω				终止于 VCC -2.0 V
	L_LVDS			100 Ω		连接到 OUT 与 OUT 之间
输入电压	VIH	70 % VCC Min.				OE 终端
	VIL	30 % VCC Max.
上升/下降时间	tr / tf	400 ps Max.				20 % ~ 80 % (VOH-VOL). 20 % ~ 80 % 微分输出峰-峰值
振荡启动时间	t_str	10 ms Max.				在电源电压最低时，所需时间为 0 秒
相位抖动	tPJ	0.23 ps Max.		0.27 ps Max.		100 MHz < f0 < 150 MHz	抵消频率： 12 kHz ~ 20 MHz
		0.22 ps Max.		0.24 ps Max.		150 MHz < f0 < 200 MHz
		0.21 ps Max.		0.23 ps Max.		200 MHz < f0 < 300 MHz
		0.18 ps Max.		0.19 ps Max.		300 MHz < f0 < 400 MHz
		0.16 ps Max.		0.16 ps Max.		400 MHz < f0 < 500 MHz
		0.14 ps Max.		0.14 ps Max.		500 MHz < f0 < 600 MHz
		0.10 ps Max.		0.10 ps Max.		600 MHz < f0 < 700 MHz
频率老化	f_aging	土 10 x 10-6 / year Max.				+25℃，第一年， VCC=2.5 V, 3.3 V

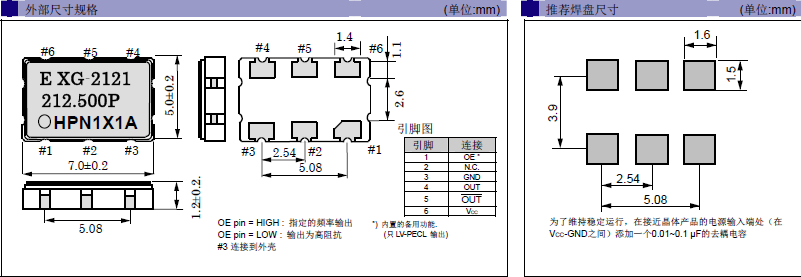

XG-2121CAP差分晶体振荡器,X1M0003110032,EPSON低抖动6G无线晶振，尺寸图

XG-2121CAP差分晶体振荡器,X1M0003110032,EPSON低抖动6G无线晶振

差分晶体振荡器(DXO)是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，常用的差分输出类型分为：LVDS，LV-PECL，HCSL，具有低电平,低抖动，低功耗等特性。

晶振料号	型号	频率	尺寸	输出方式	电源电压	工作温度
X1M0003110002	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110003	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110004	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110005	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110006	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110007	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110008	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110009	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110010	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110011	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110012	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110013	XG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110014	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110015	XG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110016	XG-2121CA	127.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110017	XG-2121CA	136.718750 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110018	XG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110020	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003110021	XG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110022	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110023	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110024	XG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110025	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110026	XG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110027	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110028	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110029	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110030	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110031	XG-2121CA	156.250000 MHz	7050晶振	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110032	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
