12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振

频率：32.768KHz

尺寸：3.2x1.5x0.75mm

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振，丹麦进口晶振，Geyer晶振，格耶电子晶振，型号：KX-327NHF系列，编码为：12.87181，频率：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+125℃，小体积晶振尺寸：3.2x1.5x0.75mm，两脚贴片晶振，石英晶振，耐高温晶振，无源晶振，SMD晶振，3215晶振，无铅晶振，石英晶体谐振器，具有超小型晶振，轻薄型晶振，高可靠性晶振，高品质晶振，耐热及耐环境特点。应用于：移动通讯晶振，无线蓝牙晶振，钟表电子晶振，汽车电子晶振，仪器设备晶振，航空电子晶振，数码电子晶振等应用。

订购热线：0755-27838351

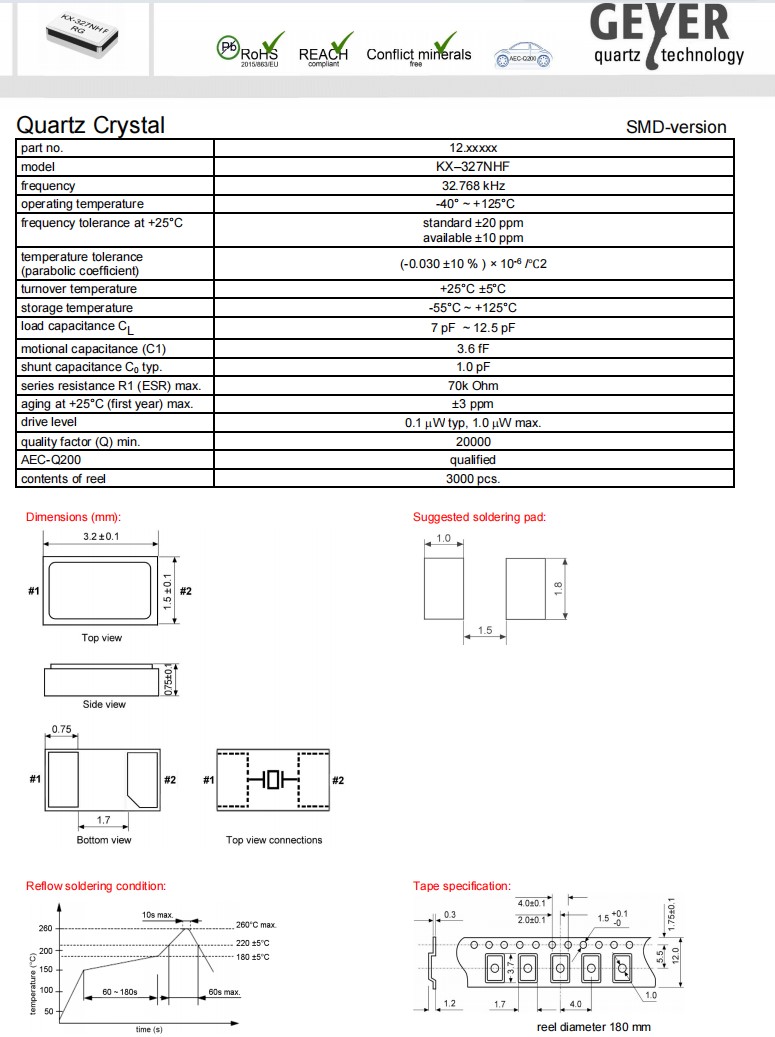

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振,参数表

part no.	12.87181
model	KX–327NHF
frequency	32.768 kHz
operating temperature	-40° ~ +125°C
frequency tolerance at +25°C	standard ±20 ppm available ±10 ppm
temperature tolerance (parabolic coefficient)	(-0.030 ±10 % ) × 10-6 /℃2
turnover temperature	+25°C ±5°C
storage temperature	-55°C ~ +125°C
load capacitance CL	7 pF ~ 12.5 pF
motional capacitance (C1)	3.6 fF
shunt capacitance C0 typ.	1.0 pF
series resistance R1 (ESR) max.	70k Ohm
aging at +25°C (first year) max.	±3 ppm
drive level	0. 1 μW typ, 1.0 μW max.
quality factor (Q) min.	20000
AEC-Q200	qualified
contents of reel	3000 pcs.

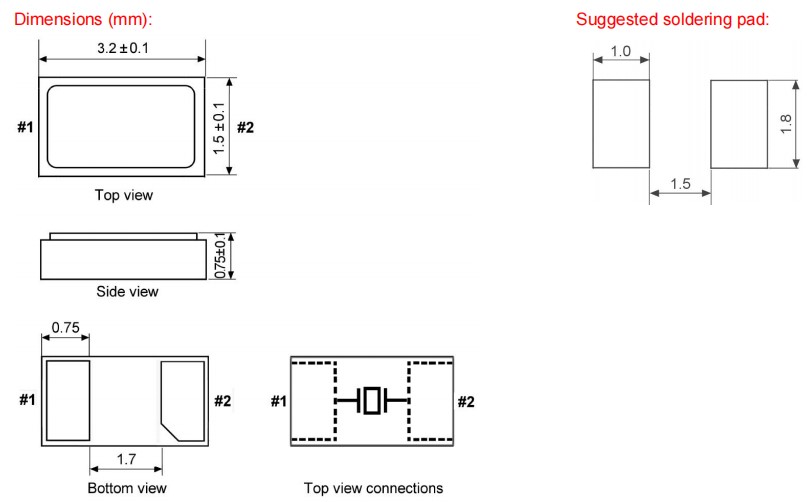

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振,尺寸图
