9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振

9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振

产品简介

9HT12-32.768KDZY-T,1610贴片晶振,RTC实时时钟晶振,32.768kHz标准计时频率,1.6×1.0mm超小贴片尺寸,解决轻薄数码产品空间紧缺痛点.电气指标标准化,25℃基础频差±20ppm,工作温度覆盖零下40至85摄氏度,高低温环境下频率偏移可控,保障全天候精准计时.晶体内部精密调校,ESR参数控制严苛,降低MCU计时电路驱动负担,适配纽扣电池供电低功耗设备.金属屏蔽封装具备一定抗干扰能力,可抵御主板微弱电磁干扰.


产品详情

Japan1

9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振

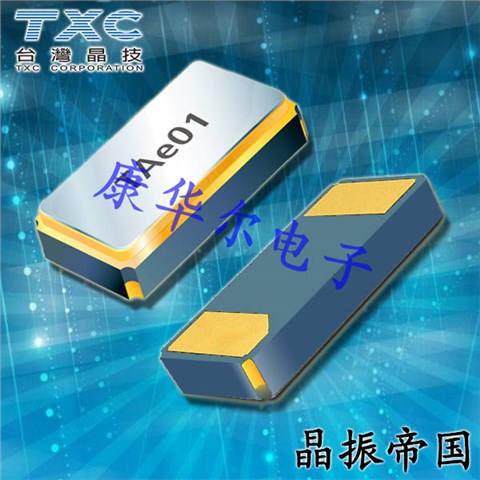

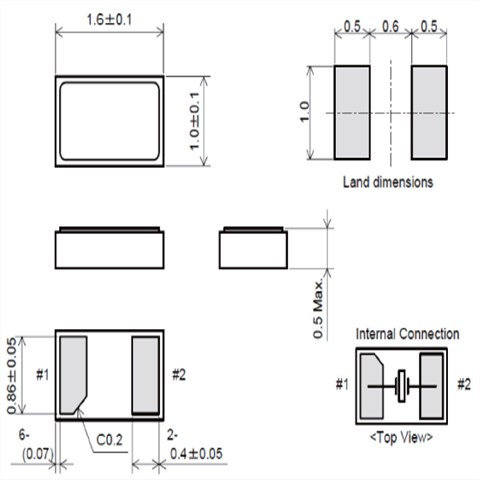

9HT12-32.768KDZY-T为1610晶振微型贴片,标准32.768kHz时钟晶振频率,专为RTC实时时钟晶振电路定制,尺寸仅1.6×1.0×0.5mm,超轻薄封装适配小型化设备PCB布局.产品常温精度±20ppm,负载电容6pF,串联ESR数值低,驱动功耗极小,适配各类低功耗计时芯片.内置高稳定音叉晶体,温度漂移控制优秀,常规工作温区-40℃~85℃,温变下走时误差微弱.气密金属封装防潮抗尘,抗跌落,抗轻微震动,长期老化漂移低.广泛用于智能手环,蓝牙耳机,物联网传感器,家用智能面板RTC计时单元,支持全自动SMT贴片焊接,无铅RoHS合规,原厂原装货源稳定,是便携低功耗设备时钟基准优选器件.

Japan2

9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振

品牌 TXC
编码 9HT12-32.768KDZY-T
型号 9HT12晶振
频率 32.768K
精度 ±20ppm
负载 7pF
尺寸 1610
工作温度 -40+85℃

Japan3

9HT12-32.768KDZY-T,1610晶振,RTC实时时钟晶振

9HT12 1610
