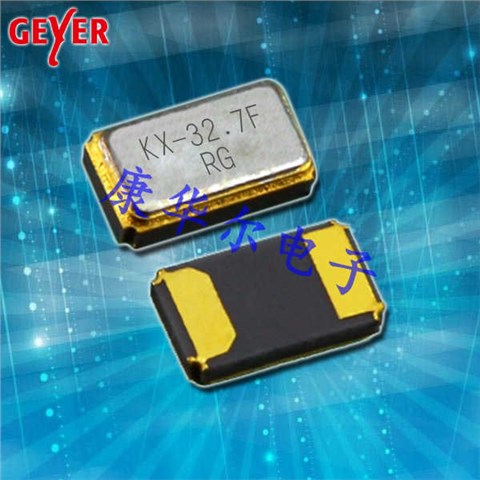

12.8717,KX-327FT,32.768KHz,1610mm,Geyer超小型晶振，丹麦进口晶振，Geyer晶振，格耶电子晶振，型号：KX-327FT系列，编码为：12.8717，频率：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0x0.5mm，无源贴片晶振，两脚贴片晶振，石英晶振，SMD晶振，无铅晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高可靠性晶振，高品质晶振，耐热及耐环境特点。1610贴片晶振，应用于：移动通讯晶振，无线蓝牙晶振，钟表电子晶振，可穿戴设备晶振，仪器仪表晶振，数字显示等应用。

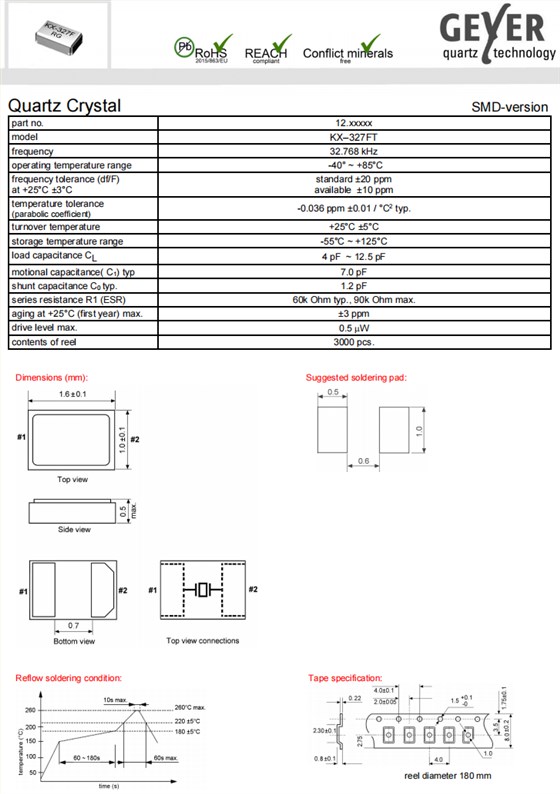

12.8717,KX-327FT,32.768KHz,1610mm,Geyer超小型晶振,参数表
part no.
12.8717
model
KX–327FT
frequency
32.768 kHz
operating temperature range
-40° ~ +85°C
frequency tolerance (df/F)
at +25°C ±3°C
standard ±20 ppm
available±10 ppm
temperature tolerance
(parabolic coefficient)
-0.036 ppm ±0.01 / °C2 typ.
turnover temperature
+25°C ±5°C
storage temperature range
-55°C ~ +125°C
load capacitance CL
4 pF~ 12.5 pF
motional capacitance( C1) typ
7.0 pF
shunt capacitance C0 typ.
1.2 pF
series resistance R1 (ESR)
60k Ohm typ., 90k Ohm max.
aging at +25°C (first year) max.
±3 ppm
drive level max.
0.5μW
contents of reel
3000 pcs.

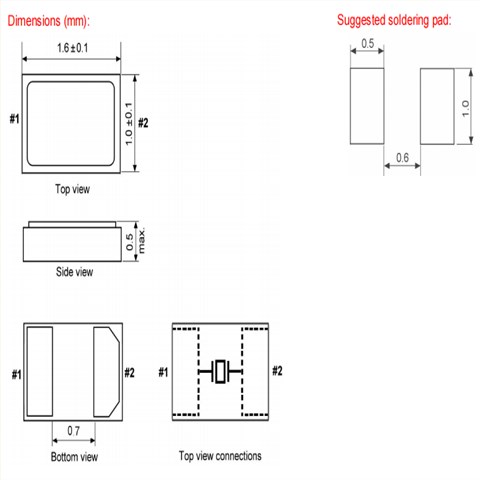

12.8717,KX-327FT,32.768KHz,1610mm,Geyer超小型晶振,尺寸图
