斯塔克陶瓷晶体,CX16SCSM1-32.0M,30/20/-/S,3pF,6G发射器晶振，尺寸2.0x1.2mm，频率32MHZ，美国Statek晶振，无源贴片晶振，陶瓷谐振器，无源晶振，SMD晶体谐振器，2012mm小体积晶振，两脚贴片晶振，无源谐振器，航空航天专用晶振，通信晶振，发射器晶振，数据通信晶振，军事专用晶振，跟踪信号专用晶振，低损耗晶振，低耗能晶振，高性能晶振，高品质晶振，高性能AT-Cut石英晶体谐振器高可靠性设计和制造应用程序。
2012贴片晶体产品可广泛应用于医疗遥测，心律管理，耳蜗植入设备，军事和航空航天，航空电子指示器和仪器，座舱仪表显示，数据通信，遥测，工业及通讯，通信，发射器，脉冲发电机，跟踪信号，野生动物遥测等领域.斯塔克陶瓷晶体,CX16SCSM1-32.0M,30/20/-/S,3pF,6G发射器晶振.
斯塔克陶瓷晶体,CX16SCSM1-32.0M,30/20/-/S,3pF,6G发射器晶振参数表
Fundamental Frequency
24.0 MHz
32.0 MHz
48.0 MHz
Motional Resitance R1(Ω)
45
45
30
Motional Capacitance C1(fF)
1.6
1.8
2.3
Quality Factor Q
90,000
60,000
50,000
Shunt Capacitance C0 (pF)
0.7
0.8
0.8
Calibration Tolerance1
±50 ppm to ± 10 ppm
Load Capacitance
Customer specified (9 pF standard)
Drive Level
100 µW MAX
Frequency-Temperature
Stability1,2,3
±50 ppm to ± 10 ppm (Commercial)
±50 ppm to ± 20 ppm (Industrial)
±50 ppm to ±30 ppm (Military)
Aging, First Year4
3 ppm MAX
Shock Survival
5,000 g, 0.3 ms, 1/2 sine
Vibration Survival5
20 g, 10-2,000 Hz swept sine
Operating Temperature Range3
- 10°C to +70°C (Commercial)
-40°C to +85°C (Industrial)
-55°C to +125°C (Military)
Storage Temperature Range3
-55°C to +125°C
Max Process Temperature
260°C for 20 seconds
Moisture Sensitivity Level (MSL)
This component is hermetically sealed and is not moisture sensitive.

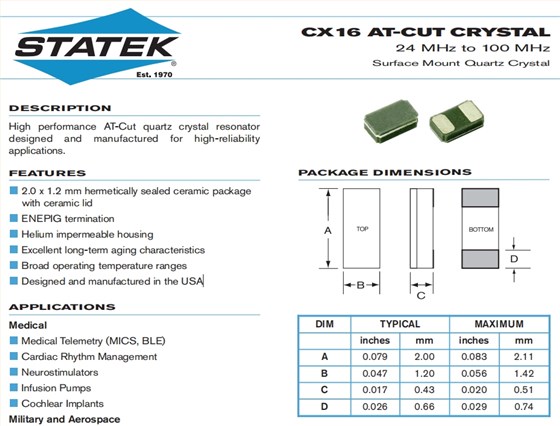

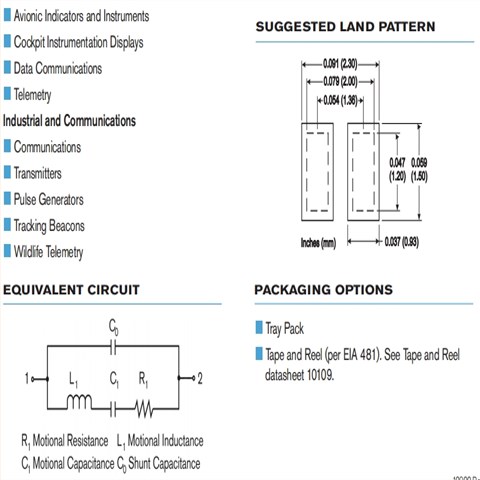

斯塔克陶瓷晶体,CX16SCSM1-32.0M,30/20/-/S,3pF,6G发射器晶振尺寸图
斯塔克陶瓷晶体,CX16SCSM1-32.0M,30/20/-/S,3pF,6G发射器晶振
贴片晶振产品特性：
