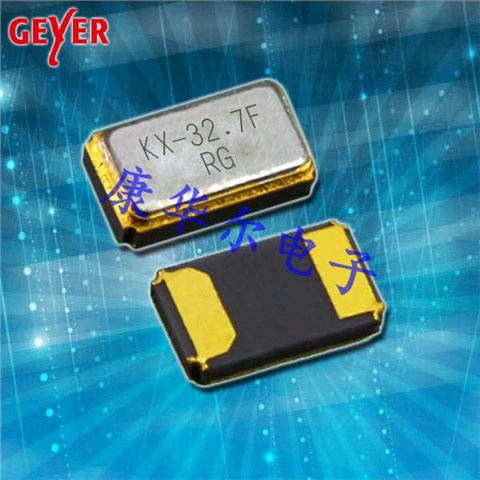

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振，丹麦进口晶振，Geyer晶振，格耶电子晶振，型号：KX-327NHF系列，编码为：12.87181，频率：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+125℃，小体积晶振尺寸：3.2x1.5x0.75mm，两脚贴片晶振，石英晶振，耐高温晶振，无源晶振，SMD晶振，3215晶振，无铅晶振，石英晶体谐振器，具有超小型晶振，轻薄型晶振，高可靠性晶振，高品质晶振，耐热及耐环境特点。应用于：移动通讯晶振，无线蓝牙晶振，钟表电子晶振，汽车电子晶振，仪器设备晶振，航空电子晶振，数码电子晶振等应用。

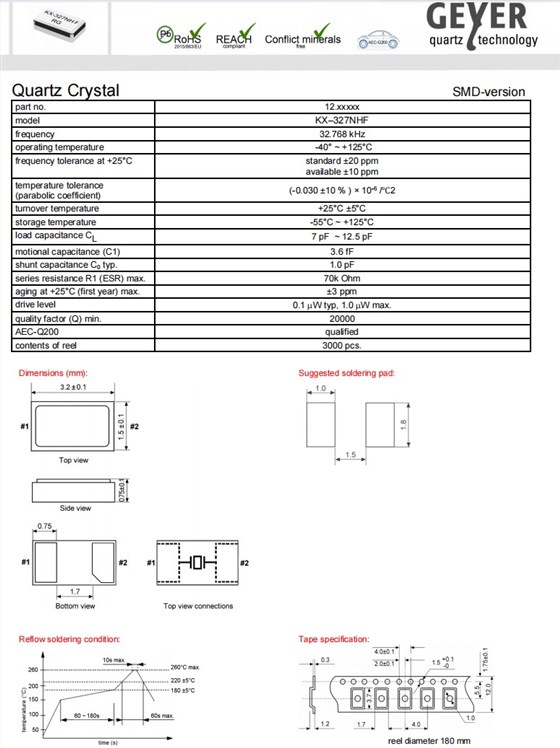

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振,参数表
| part no. | 12.87181 |
| model | KX–327NHF |
| frequency | 32.768 kHz |
| operating temperature | -40° ~ +125°C |
| frequency tolerance at +25°C |
standard ±20ppm available ±10ppm |
|
temperature tolerance (parabolic coefficient) |
(-0.030 ±10 % ) × 10-6 /℃2 |
| turnover temperature | +25°C ±5°C |
| storage temperature | -55°C ~ +125°C |
| load capacitance CL | 7 pF~ 12.5 pF |
| motional capacitance (C1) | 3.6 fF |
| shunt capacitance C0typ. | 1.0 pF |
| series resistance R1 (ESR) max. | 70k Ohm |
| aging at +25°C (first year) max. | ±3 ppm |
| drive level | 0. 1μW typ, 1.0μW max. |
| quality factor (Q) min. | 20000 |
| AEC-Q200 | qualified |
| contents of reel | 3000 pcs. |

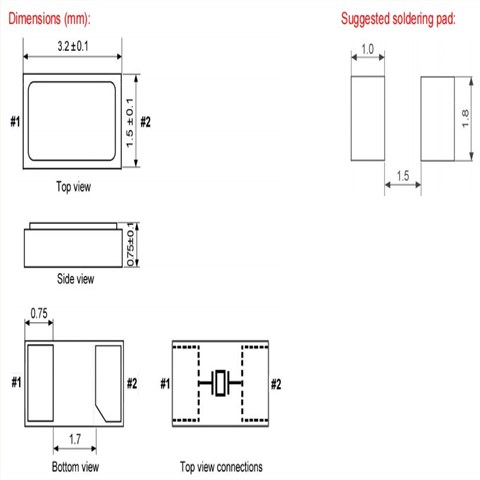

12.87181,KX-327NHF,3215mm,32.768kHz,Geyer航空电子晶振,尺寸图
