ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体

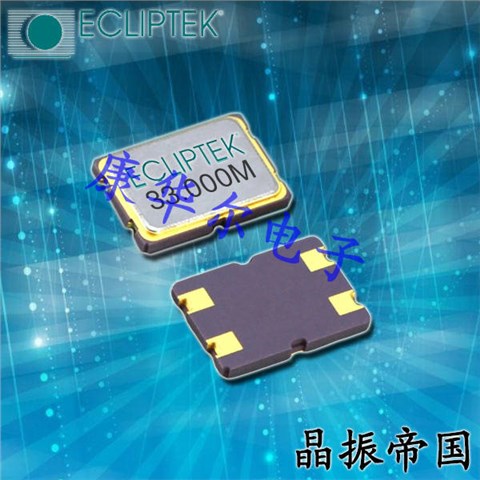

ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体,日蚀晶振,石英晶体谐振器,无源晶振,石英贴片晶振,7050mm晶振,型号EA5070,编码EA5070GA27-6.000M是一款金属面贴片型的无源晶体,尺寸7050mm,频率6MHZ,负载7pF,精度20ppm,工作温度0°C ~+70°C采用优异的原料结合高超的生产技术打磨而成,产品具备高质量低损耗的特点,非常适合用于办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.

EA5070GA30-6.000M石英晶体的真空封装技术：是指石英晶振在真空封装区域内进行封装.1.防止外界气体进入组件体内受到污染和增加应力的产生；2.使晶振组件在真空下电阻减小；3.气密性高.此技术为研发及生产超小型、超薄型石英晶振必须攻克的关键技术之一.ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体

EA5070GA27-6.000M晶振参数表

ECLIPTEK晶振	单位	EA5070晶振	石英晶振基本条件
标准频率	f_nom	6MHZ	标准频率
储存温度	T_stg	-55°C～+125°C	裸存
工作温度	T_use	-0°C～+70°C	标准温度
激励功率	DL	50μW Max.	推荐:1μW～100μW
频率公差	f_— l	±20ppm(标准)	+25°C对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.muratacrystal.com/
频率温度特征	f_tem	±30 × 10-6/-20°C～+70°C	超出标准的规格请联系我们.
负载电容	CL	7pF	不同负载要求,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C —+85°C,DL = 100μW
频率老化	f_age	±3× 10-6/ year Max.	+25°C,第一年

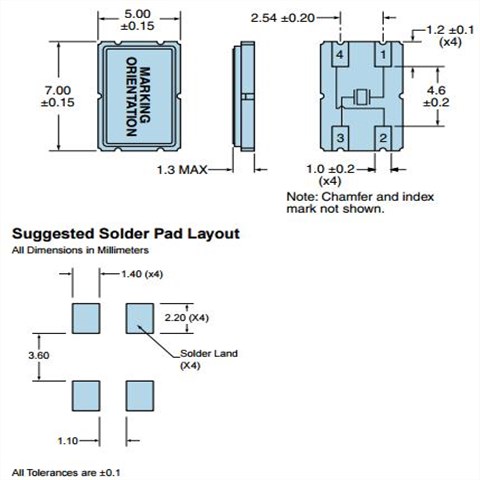

ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体尺寸图

EA5070GA27-6.000M晶振使用注意事项

耐焊性

将晶振加热包装材料至+150°C以上会破坏产品特性或损害产品。如需在+150°C以上焊接石英晶振,建议使用SMD晶振产品。在下列回流条件下,对石英晶振产品甚至SMD石英晶振使用更高温度,会破坏晶振特性。建议使用下列配置情况的回流条件。安装这些贴片晶振之前,应检查焊接温度和时间。同时,在安装条件更改的情况下,请再次进行检查。如果需要焊接的晶振产品在下列配置条件下进行焊接,请联系我们以获取耐热的相关信息。ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体
PCB设计指导:

(1) 理想情况下,机械蜂鸣器应安装在一个独立于5032晶体器件的PCB板上。如果您安装在同一个PCB板上,最好使用余量或切割PCB。当应用于PCB板本身或PCB板体内部时,机械振动程度有所不同。建议遵照内部板体特性。

(2) 在设计时请参考相应的推荐封装。

(3) 在使用焊料助焊剂时,按JIS标准(JIS C 60068-2-20/IEC 60,068-2-20).来使用。

(4) 请按JIS标准(JIS Z 3282, Pb 含量 1000ppm, 0.1wt% 或更少)来使用无铅焊料。
存储事项

(1) 在更高或更低温度或高湿度环境下长时间保存金属面晶振时,会影响频率稳定性或焊接性。请在正常温度和湿度环境下保存这些晶体产品,并在开封后尽可能进行安装,以免长期储藏。正常温度和湿度：温度：+15°C 至 +35°C,湿度 25 % RH 至 85 % RH。

(2) 请仔细处理内外盒与卷带。外部压力会导致卷带受到损坏.ECLIPTEK晶振EA5070,EA5070GA27-6.000M无源晶体

Part Number	Cut/Mode	ECLIPTEK晶振尺寸	Frequency Stability	Operating Temperature Range	Aging
EA5070GA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070GAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	0°C to +70°C	±3ppm
EA5070HA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070HAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-20°C to +70°C	±3ppm
EA5070JA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-40°C to +85°C	±3ppm
EA5070JA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-40°C to +85°C	±3ppm
EA5070JA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-40°C to +85°C	±3ppm
EA5070JA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-40°C to +85°C	±3ppm
EA5070JA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±20ppm	-40°C to +85°C	±3ppm
