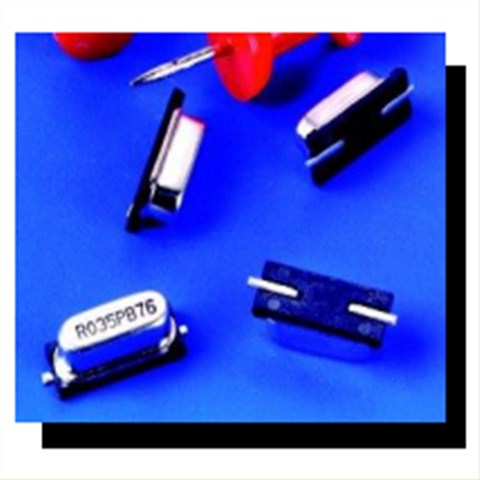

拉隆石英晶振,AS-6.000-12-2020-EXT-SMD-TR,欧美晶振,SMD晶振

拉隆石英晶振,AS-6.000-12-2020-EXT-SMD-TR,欧美晶振,SMD晶振，无源晶体，高精度石英晶振，石英晶体谐振器，欧美无源晶振，美国进口晶振，编码为：AS-6.000-12-2020-EXT-SMD-TR，频率：6 MHz，频率稳定为：±20ppm，频率公差为：±20ppm，负载电容为：12PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：12.0x4.8mm，小型SMD无源晶体谐振器，AS-SMD系列晶振，拉隆无源石英晶振，具备高可靠的环保性能，SMD编带盘装，可应用于高速自动贴片机焊接，被广泛应用于小型智能化晶振，蓝牙耳机晶振和数码相机晶振等产品中。

拉隆石英晶振,AS-6.000-12-2020-EXT-SMD-TR,欧美晶振,SMD晶振，无源晶体，高精度石英晶振，石英晶体谐振器，欧美无源晶振，美国进口晶振，编码为：AS-6.000-12-2020-EXT-SMD-TR，频率：6 MHz，频率稳定为：±20ppm，频率公差为：±20ppm，负载电容为：12PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：12.0x4.8mm，小型SMD无源晶体谐振器，AS-SMD系列晶振，拉隆无源石英晶振，具备高可靠的环保性能，SMD编带盘装，可应用于高速自动贴片机焊接，被广泛应用于小型智能化晶振，蓝牙耳机晶振和数码相机晶振等产品中。

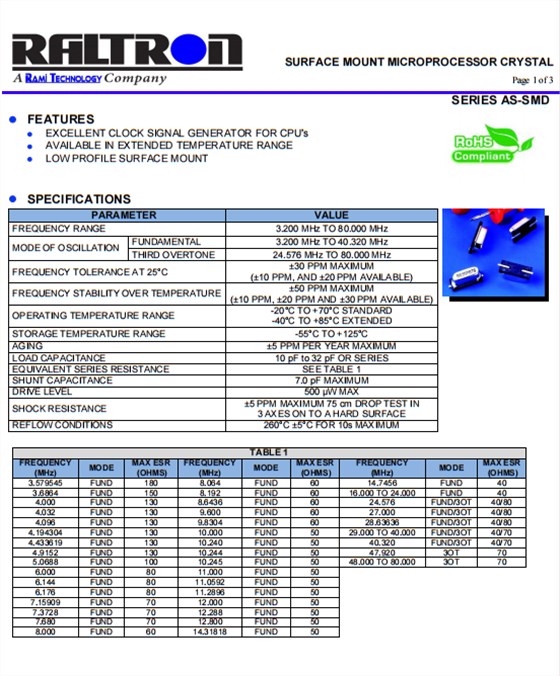

拉隆石英晶振,AS-6.000-12-2020-EXT-SMD-TR,欧美晶振,SMD晶振，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
AS-6.000-12-2020-EXT-SMD-TR	拉隆晶振	AS-SMD	6 MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C	12.00mm x 4.80mm

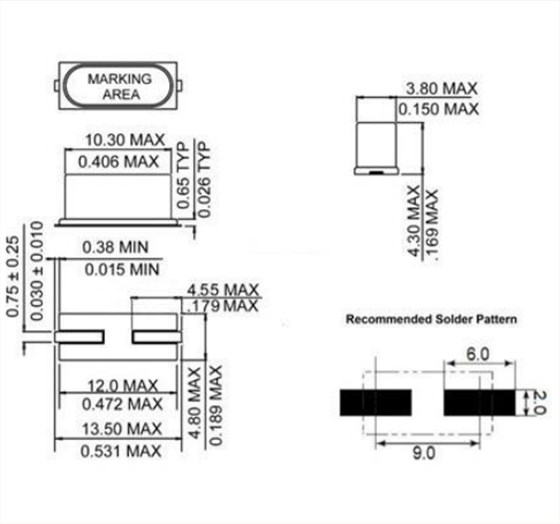

拉隆石英晶振,AS-6.000-12-2020-EXT-SMD-TR,欧美晶振,SMD晶振，尺寸图

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
AS-6.000-12-2020-EXT-SMD-TR	Raltron Crystal	AS-SMD	6 MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
RH100-25.000-10-F-3030-EXT-TR	Raltron Crystal	RH100	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
RH100-12.000-18-2020-EXT-TR	Raltron Crystal	RH100	12 MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-25.000-13-F-0715-EXT-TR-NS1	Raltron Crystal	RH100	25 MHz	±15ppm	±7ppm	13pF	-40°C ~ 85°C
AS-16.000-18-SMD-TR	Raltron Crystal	AS-SMD	16 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-11.0592-18-SMD-TR	Raltron Crystal	AS-SMD	11.0592 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-16.000-16-3030-EXT-TR	Raltron Crystal	RH100	16 MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
RH100-24.000-9-1015-EXT-TR	Raltron Crystal	RH100	24 MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-32.000-16-F-1015-EXT-TR	Raltron Crystal	RH100	32 MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
RH100-40.000-9-F-1010-EXT-TR	Raltron Crystal	RH100	40 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-48.000-8-F-1015-EXT-TR	Raltron Crystal	RH100	48 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
RH100-12.000-20-2030-TR	Raltron Crystal	RH100	12 MHz	±30ppm	±20ppm	20pF	-20°C ~ 70°C
RH100-11.0592-18-3030-EXT-TR	Raltron Crystal	RH100	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-25.000-18-F-TR	Raltron Crystal	RH100	25 MHz	±100ppm	±100ppm	18pF	-20°C ~ 70°C
RH100-26.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	26 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
RH100-12.000-12-1010-X-TR-NS2	Raltron Crystal	RH100	12 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
RH100-25.000-18-F-2030-EXT-TR	Raltron Crystal	RH100	25 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-48.000-10-F-1015-EXT-TR	Raltron Crystal	RH100	48 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
R38-32.768-12.5	Raltron Crystal	R38	32.768 kHz	-	±20ppm	12.5pF	-20°C ~ 70°C
R26-32.768-12.5	Raltron Crystal	R26	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR	Raltron Crystal	RH100	12 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
RH100-12.000-18-2020-TR	Raltron Crystal	RH100	12 MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR	Raltron Crystal	RH100	24 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR	Raltron Crystal	RH100	12 MHz	±10ppm	±10ppm	12pF	-40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1	Raltron Crystal	RH100	12 MHz	±15ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	±20ppm	16pF	-40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	±10ppm	8pF	-40°C ~ 85°C
RH100-25.000-18-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	±10ppm	18pF	-20°C ~ 70°C
RH100-16.000-8-1010-TR	Raltron Crystal	RH100	16 MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	25 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR	Raltron Crystal	R2520	32 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
AS-3.579545-18	Raltron Crystal	AS	3.579545 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-4.000-18	Raltron Crystal	AS	4 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-20.000-20	Raltron Crystal	AS	20 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-11.0592-18-EXT	Raltron Crystal	AS	11.0592 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-16.000-20-EXT	Raltron Crystal	AS	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AS-27.000-20-F	Raltron Crystal	AS	27 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-25.000-18-F-EXT	Raltron Crystal	AS	25 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR	Raltron Crystal	R2520	12 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
RT3215-32.768-9-TR	Raltron Crystal	RT3215	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
