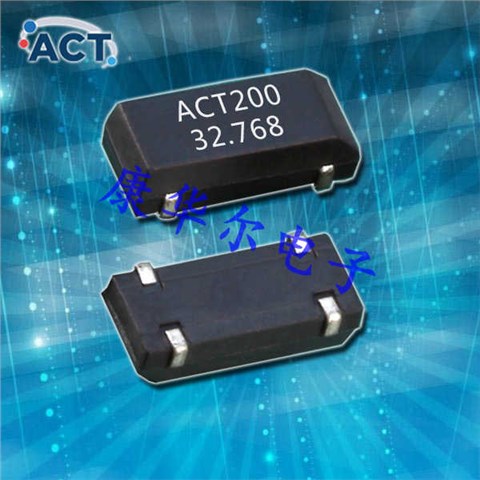

EK00003GIHD‐PF,8038mm,32.768KHz,ACT晶振,200A手表水晶

产品简介

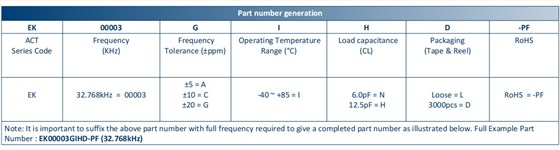

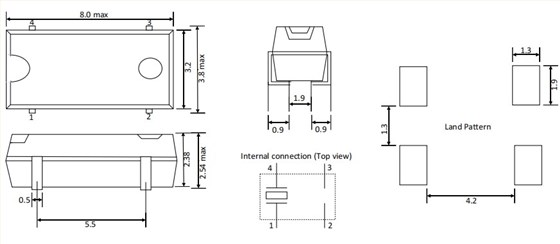

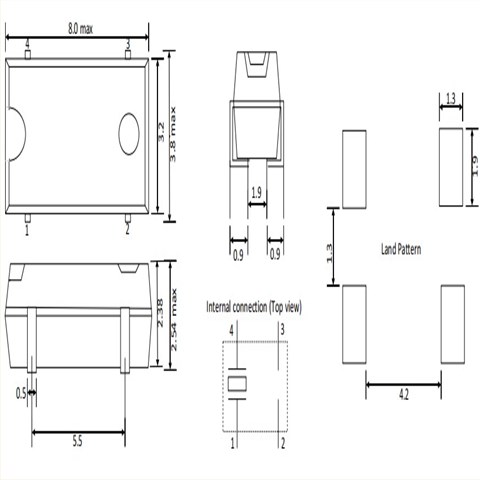

EK00003GIHD‐PF,8038mm,32.768KHz,ACT晶振,200A手表水晶，英国进口晶振，ACT晶振，艾西迪晶振，型号：200A系列晶振，编码为：EK00003GIHD‐PF，频率为：32.768KHz，频率公差：±20ppm，工作温度范围：-40℃至+85℃，负载电容：12.5pF，小体积晶振尺寸：8.0x3.8mm陶瓷SMD封装，四脚贴片晶振，石英晶振，无源晶振，8038晶振，石英晶体谐振器，SMD晶振，手表水晶，无铅晶振。具有超小型，轻薄型，高可靠性，高品质，高质量，耐热及耐环境特点。符合REACH和RoHS，应用于：消费电子晶振、计量应用晶振、移动通信晶振、医疗设备晶振、汽车电子晶振，钟表电子晶振等应用。

产品详情

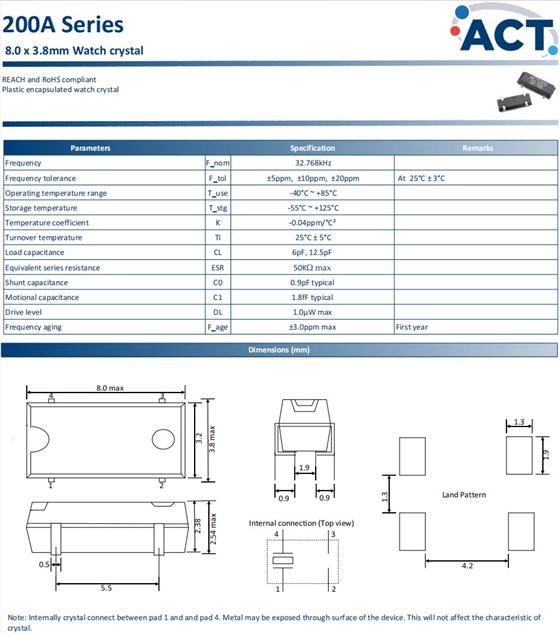

EK00003GIHD‐PF,8038mm,32.768KHz,ACT晶振,200A手表水晶,参数表

Parameters		Specification	Remarks
Frequency	F_nom	32.768kHz
Frequency tolerance	F_tol	±5ppm,±10ppm,±20ppm	At25°C ± 3°C
Operating temperature range	T_use	-40°C ~ +85°C
Storage temperature	T_stg	-55°C ~ +125°C
Temperature coefficient	K	-0.04ppm/°C²
Turnover temperature	Ti	25°C ± 5°C
Load capacitance	CL	6pF, 12.5pF
Equivalent series resistance	ESR	50KΩmax
Shunt capacitance	C0	0.9pF typical
Motional capacitance	C1	1.8fF typical
Drive level	DL	1.0μW max
Frequency aging	F_age	±3.0ppm max	First year
