福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振，美国进口晶振，FOX福克斯晶振，型号：FY5C系列，编码为：FY5CBJM48.0-T1，频率为：48.000MHz，小体积晶振尺寸：5.0x3.2mm封装，VCXO压控晶振，HCMOS输出石英晶体振荡器，六脚贴片晶振，压控晶体振荡器，有源晶体，石英晶振，SMD晶振，电压3.3V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低电源电压，低功耗，低相位噪声，低电平，高精度，高性能，高品质等特点。有源晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。
福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振,参数表
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||
| Frequency Range | 48.000 MHz | |||||||||||||||
| Temperature Range |
See options below -55°C ~ +125?C |
|||||||||||||||
|
Operating Storage |
(TOPR) (TSTG) |
|||||||||||||||
| Frequency Stability | (See Table 1 below) | |||||||||||||||
| Pullability(VC= 1.65V ± 1.65V) | (See Table 2 below) | |||||||||||||||
| Supply Voltage(VDD) | 3.3V ± 5% | |||||||||||||||
| Control Voltage(VC) | 1.65V ± 1.5V | |||||||||||||||
|
Input Current(IDD) 1.0~ 30.000MHz 30+~ 52.000MHz 52+~ 125.000MHz |
15 mA 25 mA 35 mA |
|||||||||||||||
| Output Symmetry (50% VDD) | 40% ~ 60% | |||||||||||||||
| Rise/Fall Time(20% ~ 80% VDD) (TR/TF) | 5 nS | |||||||||||||||
|
Output Voltage(VOL) (VOH) |
10%VDD 90%VDDMin |
|||||||||||||||
| Output Load(HCMOS) | 15 pF | |||||||||||||||
| Start-up Time(TS) | 10 mS | |||||||||||||||
| Frequency Linearity | ± 10% | |||||||||||||||
| Modulation Bandwidth | 20 kHz Min | |||||||||||||||
| Vc Input Impedance | 5 M? typ | |||||||||||||||
| Enable Time | 10 mS | |||||||||||||||
| Disable Time | 150 nS | |||||||||||||||

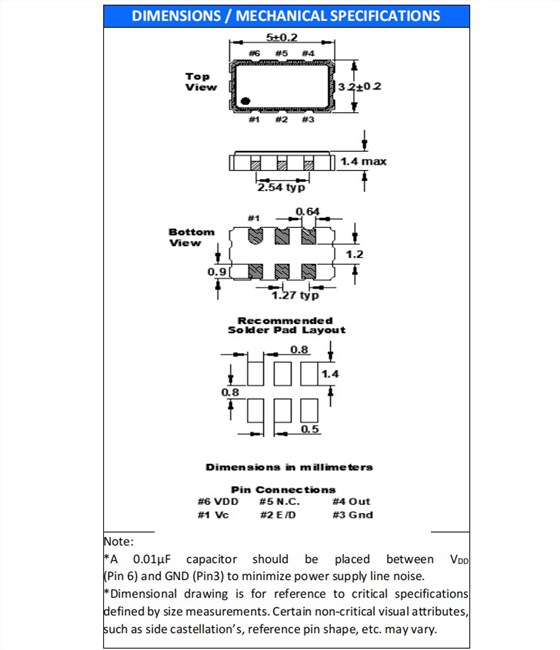

福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振,尺寸图
福克斯VCXO振荡器,FY5CBJM48.0-T1,低相位噪声晶振
压控晶振用石英晶体作频率控制元件，其振荡频率在工作温度内是稳定的。当我们对VCXO晶振的进行调谐时，振荡频率会发生改变；但偏离标称频率的各个频率值在工作温度范围内同样是稳定的。必须注意，对于一个给定的频率而言，频率稳定度要求越高，要得到大范围的牵引度就越困难。采用硅解决方案，不能获得良好的频率稳定度。这是因为硅存在颤动噪声和相位噪声所致。VCXO压控晶振的采用了SMD晶振，频率异常稳定，是目前最好的频率控制器件。
