NX3225SA-16.000M-STD-CRS-2,NDK贴片晶振,3225车规晶振

NX3225SA-16.000M-STD-CRS-2,NDK贴片晶振,3225车规晶振

康华尔电子为NDK日本电波正规授权代理,现货供应NX3225SA-16.000M-STD-CRS-2贴片无源晶振,是NDK经典3225mm晶振封装车规级谐振器.尺寸规格3.2×2.5×0.55mm,采用NDK四点晶片固定结构,抗振动,抗冲击能力突出,严苛车载工况下起振稳定,符合AEC-Q200车规无源器件规范,适配车载复杂高低温环境.标称频率16MHz,低ESR,频率一致性好,支持无铅回流焊,编带包装适配SMT自动化产线,批次稳定性高,满足汽车电子长期可靠运行需求.广泛用于车载中控,蓝牙车机,TPMS胎压监测,无钥匙进入RKE,车载摄像头,车载网关等车载电子模块.康华尔电子原厂渠道直采,货源可追溯,可提供规格书,样品测试,批量报价,技术团队支持负载匹配与电路调试,欢迎来电咨询0755-27838351.

NX3225SA-16.000M-STD-CRS-2,NDK贴片晶振,3225车规晶振

品牌	NDK晶振
编码	NX3225SA-16.000M-STD-CRS-2
型号	NX3225SA
频率	16.000M
精度	±15ppm
负载	8pF

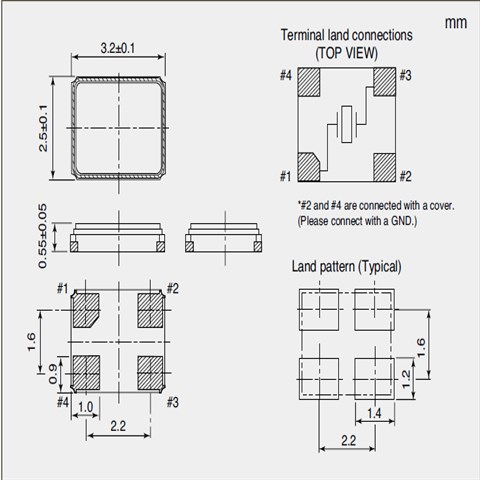

尺寸	3225
工作温度	-40+125°C

NX3225SA-16.000M-STD-CRS-2,NDK贴片晶振,3225车规晶振
