Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF

Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LFJauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF

产品简介

Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF,尺寸1.6x1.2mm，频率33MHZ，法国Jauch晶振，无源贴片晶振，石英贴片晶振，四脚贴片晶振，石英水晶振动子，1612mm无源晶振，无源晶体，石英晶振，SMD晶振，石英晶体谐振器，SMD无源晶振，轻薄型晶体，无线网络应用晶振，6G电信晶振，手持式设备晶振，平板电脑晶振，小型设备晶振，数字视频晶振，绿色环保晶振，低功耗石英晶振，低损耗石英晶体，高品质贴片晶振，具有良好的可靠性能以及稳定性能，贴片晶振产品非常适合用于无线网络应用，6G电信，手持式设备，平板电脑，小型设备，数字视频等领域。Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF.

产品详情

Japan1

Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF,尺寸1.6x1.2mm，频率33MHZ，法国Jauch晶振，无源贴片晶振，石英贴片晶振，四脚贴片晶振，石英水晶振动子，1612mm无源晶振，无源晶体，石英晶振，SMD晶振，石英晶体谐振器，SMD无源晶振，轻薄型晶体，无线网络应用晶振，6G电信晶振，手持式设备晶振，平板电脑晶振，小型设备晶振，数字视频晶振，绿色环保晶振，低功耗石英晶振，低损耗石英晶体，高品质贴片晶振，具有良好的可靠性能以及稳定性能，贴片晶振产品非常适合用于无线网络应用，6G电信，手持式设备，平板电脑，小型设备，数字视频等领域。Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF.

Japan2Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF参数表

GENERAL DATA
TYPE JXS11
frequency range 33.0 MHz (fund. AT-cut)
frequency tolerance at 25 °C ± 10 ppm / ± 20 ppm / ± 30 ppm
load capacitance CL 8 pF standard
(option: 6 pF ~ 30 pF / series)
shunt capacitance CO < 5 pF
storage temperature -40 °C ~ +90 °C
drive level max. 100 μW (10 μW recommended)
aging < ± 3 ppm first year
(option: < ± 1 ppm first year for tol. ± 10 ppm)

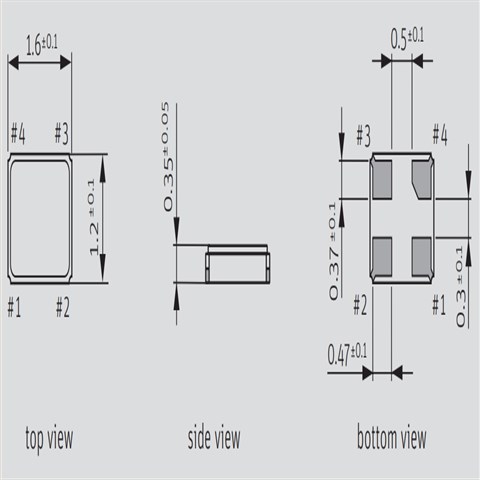

Japan3Jauch水晶振动子,JXS11石英晶振,6G电信晶振,Q33.0-JXS11-8-30/30-T1-FU-LF尺寸图JXS11

1612贴片晶振产品特性：

4衬垫版本，1.6x1.2mm

±10ppm类型可用

盖接地可实现EMI屏蔽

回流焊接温度：最高260°C。

陶瓷/金属封装

JXS11 1

JXS11 2

Manufacturer Part Number Manufacturer Description Series Frequency Frequency Stability Frequency Tolerance
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±10ppm ±10ppm
Q 16.0-JXS32-10-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-10-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-10-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-12-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 12PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-12-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 12PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-12-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 12PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-8-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 8PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-8-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 8PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-8-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 8PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-9-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 9PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-9-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 9PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 16.0-JXS32-9-10/10-WA-LF Jauch Quartz CRYSTAL 16MHZ 9PF SMD JXS32-WA 16MHz ±10ppm ±10ppm
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS32-WA 38.4MHz ±10ppm ±10ppm
Q 32.0-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS32-WA 32MHz ±10ppm ±10ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz - ±10ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz - ±10ppm
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz - ±10ppm
Q 0.032768-JTX210-12.5-20-T2-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX210 32.768kHz - ±20ppm
Q 0.032768-JTX210-12.5-20-T2-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX210 32.768kHz - ±20ppm
Q 0.032768-JTX210-12.5-20-T2-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX210 32.768kHz - ±20ppm
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 8PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 8PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 8PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 9PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 9PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 9PF SMD JXS32-WA 19.2MHz ±15ppm ±10ppm
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 10PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 10PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 10PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 12PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 12PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 12PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 8PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 8PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 8PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 9PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 9PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 20MHZ 9PF SMD JXS32-WA 20MHz ±15ppm ±10ppm
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 10PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 10PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 10PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 12PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 12PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 12PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 8PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 8PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 8PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 9PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 9PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 24MHZ 9PF SMD JXS32-WA 24MHz ±15ppm ±10ppm
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 CRYSTAL 26MHZ 12PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS32-WA 26MHz ±15ppm ±10ppm
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS32-WA 27.12MHz ±15ppm ±10ppm
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±15ppm ±10ppm
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±15ppm ±10ppm
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch Quartz CRYSTAL 16MHZ 10PF SMD JXS32-WA 16MHz ±15ppm ±10ppm
