SCO-10系列,32.768KHz,进口有源晶振,7050贴片晶振,CMOS输出晶振,Sunny晶振

产品简介

SCO-10系列,32.768KHz,进口有源晶振,7050贴片晶振,CMOS输出晶振,Sunny晶振

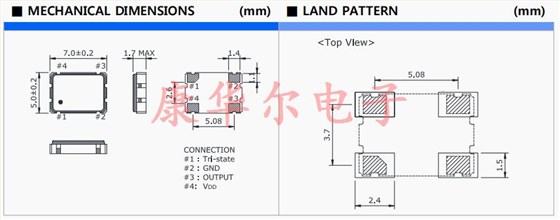

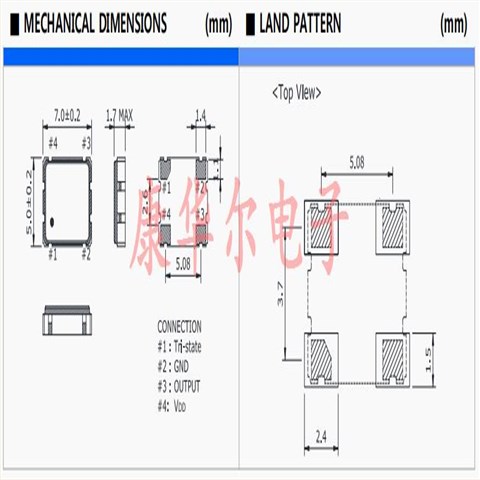

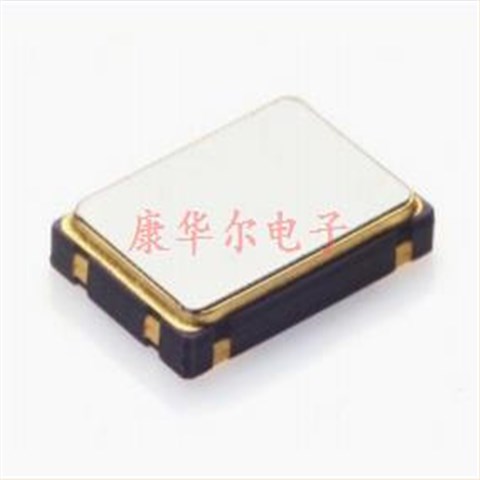

韩国Sunny晶振中的SCO-10系列，频率为32.768KHz，输出方式为CMOS，也叫CMOS输出晶振。该晶振的1.5 V至3.3 V的工作电源电压范围，三态功能可用，电源电压为1.5 VDC±5%、1.8 VDC±5%、2.5 VDC±5%、3.3 VDC±5%。尺寸为7.0*5.0mm，是7050贴片晶振，贴片表晶32.768K系列具有超小型,薄型,质地轻的表面贴片音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能。

产品详情

SCO-10系列,32.768KHz,进口有源晶振,7050贴片晶振,CMOS输出晶振,Sunny晶振

Japan2 SCO-10系列,32.768KHz,进口有源晶振,7050贴片晶振,CMOS输出晶振,Sunny晶振

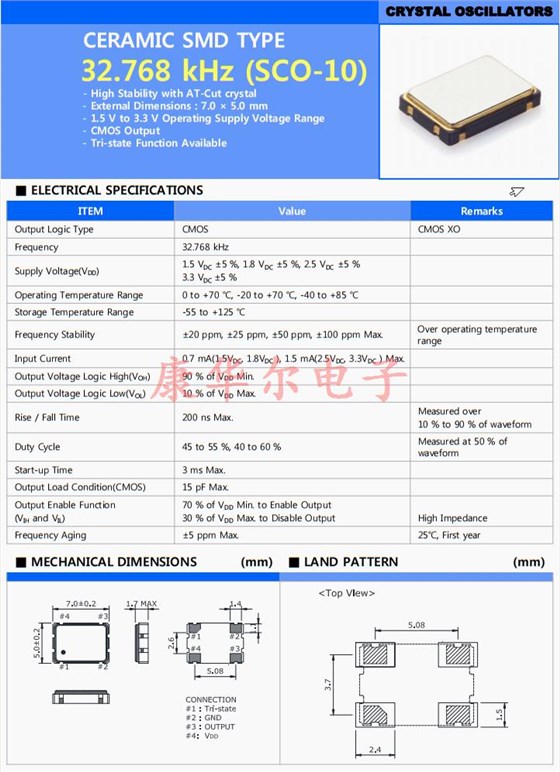

ITEM	Value	Remarks
Output Logic Type	CMOS	CMOS XO
Frequency	32.768 kHz
Supply Voltage(VDD)	1.5 VDC ±5 %, 1.8 VDC ±5 %, 2.5 VDC ±5 % 3.3 VDC ±5 %
Operating Temperature Range	0 to +70 ℃, -20 to +70 ℃, -40 to +85 ℃
Storage Temperature Range	-55 to +125 ℃
Frequency Stability	±20 ppm, ±25 ppm, ±50 ppm, ±100 ppm Max.	Over operating temperature range
Input Current	0.7 mA(1.5VDC, 1.8VDC ), 1.5 mA(2.5VDC, 3.3VDC ) Max.
Output Voltage Logic High(VOH)	90 % of VDD Min.
Output Voltage Logic Low(VOL)	10 % of VDD Max.
Rise / Fall Time	200 ns Max.	Measured over 10 % to 90 % of waveform
Duty Cycle	45 to 55 %, 40 to 60 %	Measured at 50 % of waveform
Start-up Time	3 ms Max.
Output Load Condition(CMOS)	15 pF Max.
Output Enable Function(VIH and VIL)	70 % of VDD Min. to Enable Output 30 % of VDD Max. to Disable Output	High Impedance
Frequency Aging	±5 ppm Max.	25℃, First year
