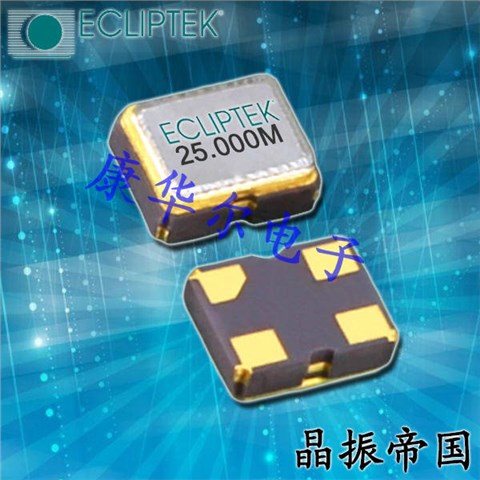

美国日蚀晶振,EC5720ETTTS-25.000M TR,LVCMOS,25MHz,EC57系列,2520贴片晶振
美国日蚀晶振中编码为EC5720ETTTS-25.000M TR的晶振，属于是EC57系列晶振。该晶振的频率是25MHz，输出方式为LVCMOS，频率稳定性是±20ppm，其电源电压是2.5V，电流为5.5mA，工作温度范围是-40~85度，尺寸为2.5 x 2.0 x 1.0mm，为2520贴片晶振。小体积 2520 贴片晶振是小型化市场的福音,2520 因本身体积小型,厚度薄等特点,被使用在移动通讯,蓝牙设备等领域中,ECLIPTEK生产的 2.5x2.0mm 贴片晶振产品具备高可靠性能,在恶劣环境中也能发挥正常工作,以可靠的产品质量在业界中小有名气。
美国日蚀晶振,EC5720ETTTS-25.000M TR,LVCMOS,25MHz,EC57系列,2520贴片晶振
| 品牌 | ECLIPTEK |
| 编码 | EC5720ETTTS-25.000M TR |
| 型号 | EC57 |
| 频率 | 25MHz |
| 频率稳定性 | ±20ppm |
| 电压 | 2.5V |
| 尺寸 | 2.5 x 2.0mm |
| 工作温度 | -40℃~85℃ |
| 输出 | LVCMOS |
| 电流 | 5.5mA |
美国日蚀晶振,EC5720ETTTS-25.000M TR,LVCMOS,25MHz,EC57系列,2520贴片晶振
更多相关晶振参考
| 编码 | 品牌 | 型号 | 工作温度 | 频率 | 输出 |
| EC3700ETTTS-100.000M TR | ECLIPTEK晶振 | EC37 | -40℃~85℃ | 100MHz | LVCMOS |
| EC5720ETTTS-25.000M TR | ECLIPTEK | EC57 | -40℃~85℃ | 25MHz | LVCMOS |
| EH1400SJETTS-1.000M | ECLIPTEK | EH14 | -40℃~85℃ | 1MHz | CMOS |
| EH1400SJETTS-11.0592M TR | ECLIPTEK | EH14 | -40℃~85℃ | 11.0592MHz | CMOS |
| EH1400SJETTS-25.000M | ECLIPTEK | EH14 | -40℃~85℃ | 25MHz | CMOS |
| EH1400SJETTS-32.000M TR | ECLIPTEK | EH14 | -40℃~85℃ | 32MHz | CMOS |
| EH1400SJETTS-40.000M | ECLIPTEK | EH14 | -40℃~85℃ | 40MHz | CMOS |
| EH1400SJETTS-5.000M | ECLIPTEK | EH14 | -40℃~85℃ | 5MHz | CMOS |
| EH1400SJETTS-5.000M TR | ECLIPTEK | EH14 | -40℃~85℃ | 5MHz | CMOS |
| EH1400SJETTS-64.000M | ECLIPTEK | EH14 | -40℃~85℃ | 64MHz | CMOS |
| EH1400SJETTS-70.656M | ECLIPTEK | EH14 | -40℃~85℃ | 70.656MHz | CMOS |
| EH1400SJETTTS-1.8432M | ECLIPTEK | EH14 | -40℃~85℃ | 1.8432MHz | CMOS |
| EH1400SJETTTS-16.667M | ECLIPTEK | EH14 | -40℃~85℃ | 16.667MHz | CMOS |
| EH1400SJETTTS-16.670M | ECLIPTEK | EH14 | -40℃~85℃ | 16.67MHz | CMOS |
| EH1400SJETTTS-16.670M TR | ECLIPTEK | EH14 | -40℃~85℃ | 16.67MHz | CMOS |
| EH1400SJETTTS-20.000M | ECLIPTEK | EH14 | -40℃~85℃ | 20MHz | CMOS |
| EH1400SJETTTS-32.000M | ECLIPTEK | EH14 | -40℃~85℃ | 32MHz | CMOS |
| EH1400SJETTTS-36.000M | ECLIPTEK | EH14 | -40℃~85℃ | 36MHz | CMOS |
| EH1400SJETTTS-40.000M | ECLIPTEK | EH14 | -40℃~85℃ | 40MHz | CMOS |
| EH1400SJTS-16.000M | ECLIPTEK | EH14 | 0℃~70℃ | 16MHz | CMOS |
| EH1400SJTTS-39.3216M TR | ECLIPTEK | EH14 | 0℃~70℃ | 39.3216MHz | CMOS |
| EH1400SJTTS-4.9152M TR | ECLIPTEK | EH14 | 0℃~70℃ | 4.9152MHz | CMOS |
| EH1420SJETTS-5.000M TR | ECLIPTEK | EH14 | -40℃~85℃ | 5MHz | CMOS |
| EH1425SJETTS-24.576M | ECLIPTEK | EH14 | -40℃~85℃ | 24.576MHz | CMOS |
| EH1445SJETTS-64.000M | ECLIPTEK | EH14 | -40℃~85℃ | 64MHz | CMOS |
| EH1445SJETTTS-64.000M | ECLIPTEK | EH14 | -40℃~85℃ | 64MHz | CMOS |
| EH1445SJTS-1.000M TR | ECLIPTEK | EH14 | 0℃~70℃ | 1MHz | CMOS |
| EH1500SJETTS-24.000M | ECLIPTEK | EH15 | -40℃~85℃ | 24MHz | CMOS |
| EH1500SJETTS-5.000M | ECLIPTEK | EH15 | -40℃~85℃ | 5MHz | CMOS |
| EH1500SJTS-5.000M TR | ECLIPTEK | EH15 | 0℃~70℃ | 5MHz | CMOS |
| EH1525SJETTS-16.000M TR | ECLIPTEK | EH15 | -40℃~85℃ | 16MHz | CMOS |
| EH1525SJETTS-36.000M | ECLIPTEK | EH15 | -40℃~85℃ | 36MHz | CMOS |
| EH1525SJETTTS-24.000M | ECLIPTEK | EH15 | -40℃~85℃ | 24MHz | CMOS |
| EH2500ETTS-16.777216M | ECLIPTEK | EH25 | -40℃~85℃ | 16.777216MHz | CMOS |
| EH2500ETTS-18.432M TR | ECLIPTEK | EH25 | -40℃~85℃ | 18.432MHz | CMOS |
| EH2500ETTS-4.9152M TR | ECLIPTEK | EH25 | -40℃~85℃ | 4.9152MHz | CMOS |
| EH2500ETTS-40.000M | ECLIPTEK | EH25 | -40℃~85℃ | 40MHz | CMOS |
| EH2500ETTS-54.240M | ECLIPTEK | EH25 | -40℃~85℃ | 54.24MHz | CMOS |
| EH2500ETTS-64.000M | ECLIPTEK | EH25 | -40℃~85℃ | 64MHz | CMOS |
| EH2500ETTS-8.000M TR | ECLIPTEK | EH25 | -40℃~85℃ | 8MHz | CMOS |
| EH2500ETTTS-13.2256M TR | ECLIPTEK | EH25 | -40℃~85℃ | 13.2256MHz | CMOS |
| EH2500ETTTS-3.072M | ECLIPTEK | EH25 | -40℃~85℃ | 3.072MHz | CMOS |
| EH2500ETTTS-64.000M | ECLIPTEK | EH25 | -40℃~85℃ | 64MHz | CMOS |
| EH2500TS-2.273M TR | ECLIPTEK | EH25 | 0℃~70℃ | 2.273MHz | CMOS |
| EH2500TS-2.381M | ECLIPTEK | EH25 | 0℃~70℃ | 2.381MHz | CMOS |
| EH2500TS-24.000M TR | ECLIPTEK | EH25 | 0℃~70℃ | 24MHz | CMOS |
| EH2500TS-82.000M TR | ECLIPTEK | EH25 | 0℃~70℃ | 82MHz | CMOS |
| EH2500TTS-10.000M | ECLIPTEK | EH25 | 0℃~70℃ | 10MHz | CMOS |
| EH2500TTS-8.000M TR | ECLIPTEK | EH25 | 0℃~70℃ | 8MHz | CMOS |
| EH2525ETTTS-10.000M | ECLIPTEK | EH25 | -40℃~85℃ | 10MHz | CMOS |
| EH2525ETTTS-14.400M | ECLIPTEK | EH25 | -40℃~85℃ | 14.4MHz | CMOS |
| EH2525TTS-66.2069M | ECLIPTEK | EH25 | 0℃~70℃ | 66.2069MHz | CMOS |
| EH2545ETTS-10.000M TR | ECLIPTEK | EH25 | -40℃~85℃ | 10MHz | CMOS |
| EH2545ETTS-7.3728M TR | ECLIPTEK | EH25 | -40℃~85℃ | 7.3728MHz | CMOS |
| EH2545TS-1.830M | ECLIPTEK | EH25 | 0℃~70℃ | 1.83MHz | CMOS |
| EH2545TS-1.840M | ECLIPTEK | EH25 | 0℃~70℃ | 1.84MHz | CMOS |
| EH2545TS-1.850M | ECLIPTEK | EH25 | 0℃~70℃ | 1.85MHz | CMOS |
| EH2545TS-1.860M | ECLIPTEK | EH25 | 0℃~70℃ | 1.86MHz | CMOS |
| EH2545TS-1.870M | ECLIPTEK | EH25 | 0℃~70℃ | 1.87MHz | CMOS |
| EH2545TS-1.880M | ECLIPTEK | EH25 | 0℃~70℃ | 1.88MHz | CMOS |
| EH2545TS-20.000M | ECLIPTEK | EH25 | 0℃~70℃ | 20MHz | CMOS |
| EH2545TS-20.000M TR | ECLIPTEK | EH25 | 0℃~70℃ | 20MHz | CMOS |
| EH2545TS-25.000M | ECLIPTEK | EH25 | 0℃~70℃ | 25MHz | CMOS |
| EH2545TS-48.000M | ECLIPTEK | EH25 | 0℃~70℃ | 48MHz | CMOS |
| EH2545TTS-19.6608M | ECLIPTEK | EH25 | 0℃~70℃ | 19.6608MHz | CMOS |
| EH2545TTS-48.000M | ECLIPTEK | EH25 | 0℃~70℃ | 48MHz | CMOS |
| EH2545TTS-60.000M | ECLIPTEK | EH25 | 0℃~70℃ | 60MHz | CMOS |
| EH2600ETTS-1.000M TR | ECLIPTEK | EH26 | -40℃~85℃ | 1MHz | CMOS |
