AXLE7050S-FM-V-10-2C-20.000MHz,7050mm,AXTAL温补晶振

频率：20.000MHz

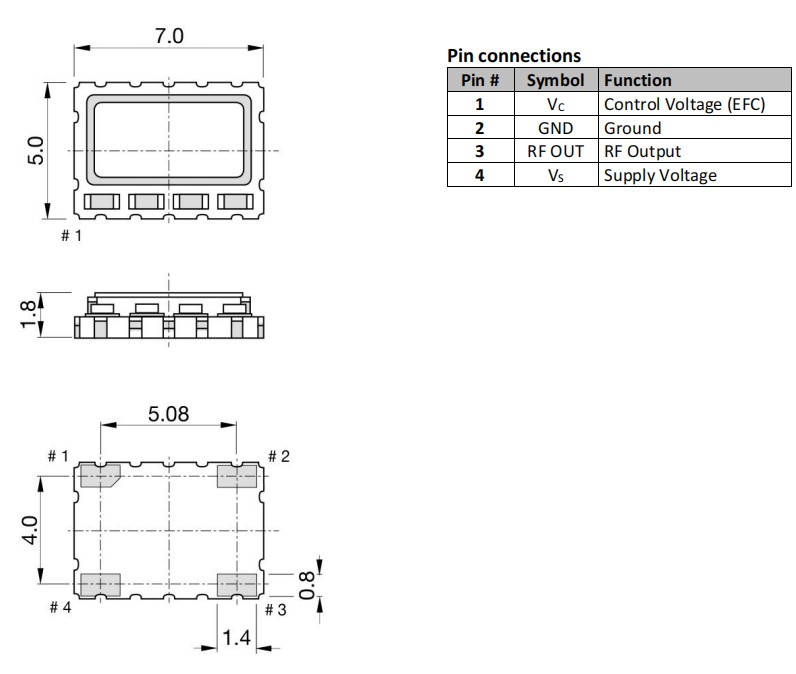

尺寸：7.0x5.0x1.8mm

AXLE7050S-FM-V-10-2C-20.000MHz,7050mm,AXTAL温补晶振，德国进口晶振，AXTAL晶振，型号：AXLE7050S，编码为：AXLE7050S-FM-V-10-2C-20.000MHz，小体积晶振尺寸：7.0x5.0x1.8mm，精度：±1.0ppm，工作温度范围：-20℃至+70℃，频率：20.000MHz，四脚贴片晶振，有源晶振，TCXO温补晶振，温补晶体振荡器，石英晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低耗能，低损耗等特点。应用于：移动通讯晶振，无线网络晶振，GPS定位晶振，导航仪晶振，物联网晶振，安防设备晶振等应用。

订购热线：0755-27838351

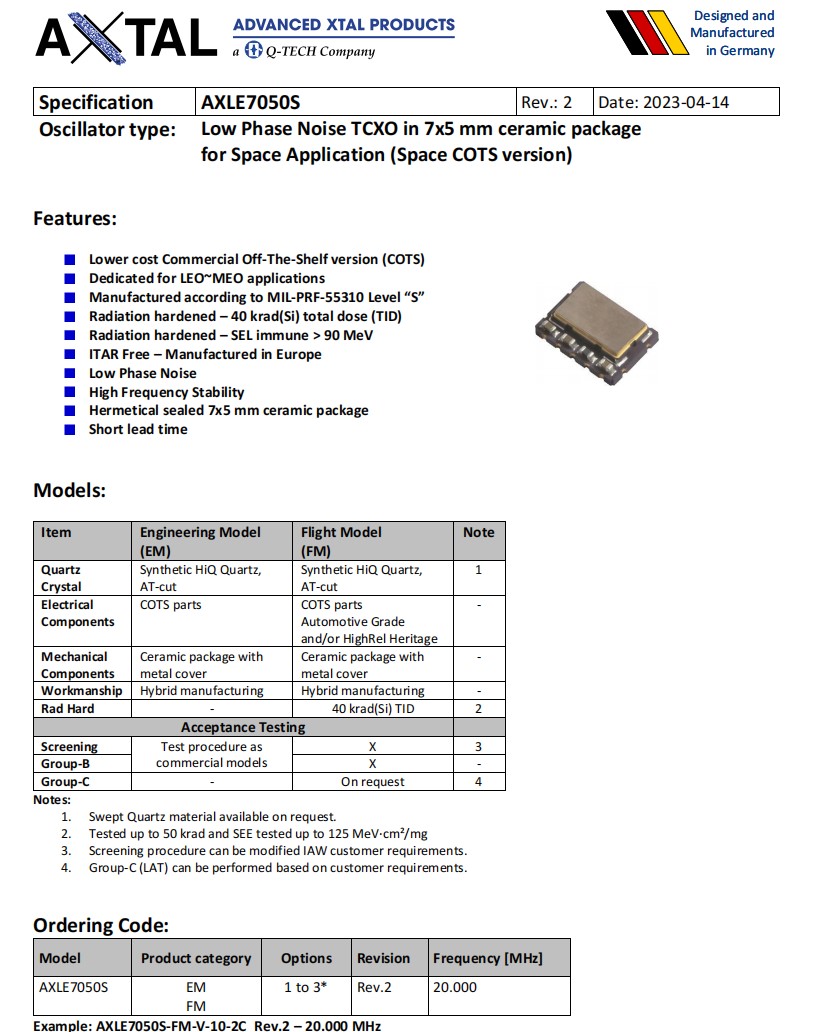

AXLE7050S-FM-V-10-2C-20.000MHz,7050mm,AXTAL温补晶振，产品特点：

低成本商用现货（COTS）
专门用于LEO~MEO应用
根据MIL-PRF-55310“S”级制造，有源晶振
辐射硬化–40 krad（Si）总剂量（TID）
辐射硬化–SEL免疫>90 MeV
ITAR免费-欧洲制造
低相位噪声，高频稳定性
密封7x5 mm陶瓷封装，交付周期短

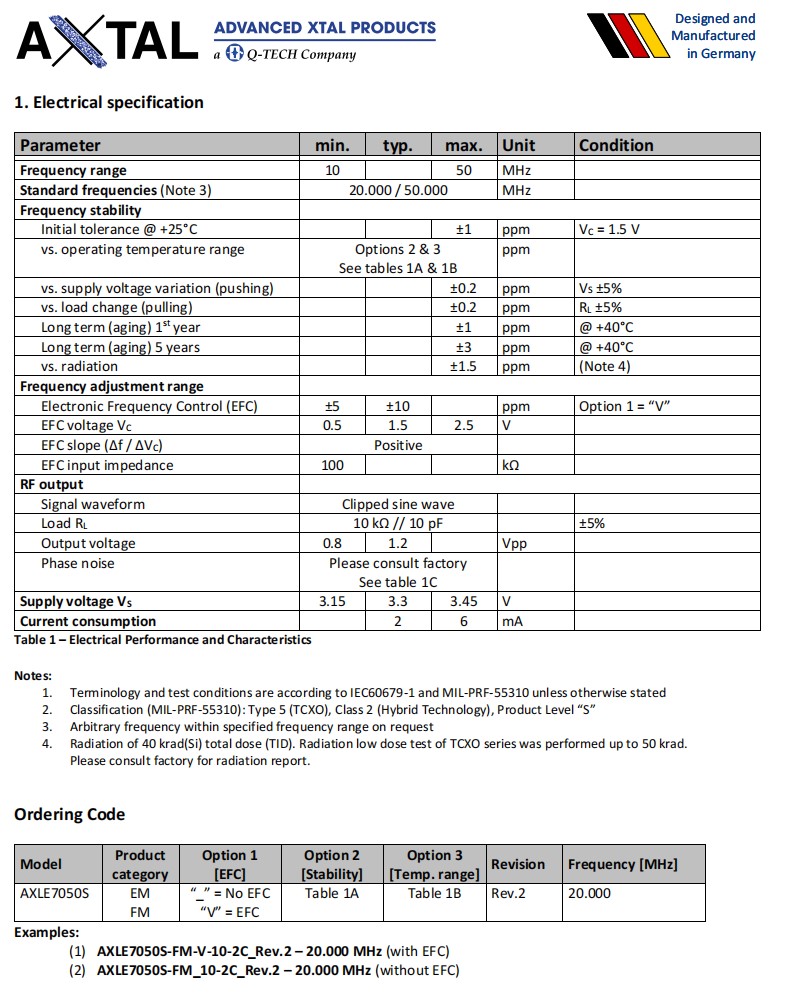

AXLE7050S-FM-V-10-2C-20.000MHz,7050mm,AXTAL温补晶振,参数表

Parameter	Min.	Typ.	Max.	Unit	Condition
Frequency range (Note 3)	10		50	MHz
Standard frequencies	20.000			MHz
Frequency stability
Initial tolerance @ +25°C			±1	ppm	VC = 1.5 V
vs. operating temperature range	Options 2 & 3 See tables 1A & 1B			ppm
vs. supply voltage variation (pushing)			±0.2	ppm	VS ±5%
vs. load change (Pulling)			±0.2	ppm	RL ±5%
Long term (aging) 1st year			±1	ppm	@ +40°C
Long term (aging) 5 years			±3	ppm	@ +40°C
vs. radiation			±1.5	ppm	(Note 4)
Frequency adjustment range
Electronic Frequency Control (EFC)	±5	±10		ppm	Option 1 = “V”
EFC voltage VC	0.5	1.5	2.5	V
EFC slope (Df / DVC)	Positive
EFC input impedance	100			kΩ
RF output
Signal waveform	Clipped sine wave
Load RL	10 kΩ // 10 pF				±5%
Output voltage	0.8	1.2		Vpp
Phase noise	Please consult factory
Phase noise	See table 1C
Supply voltage VS	3.15	3.3	3.45	V
Current consumption		2	6	mA
