表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择

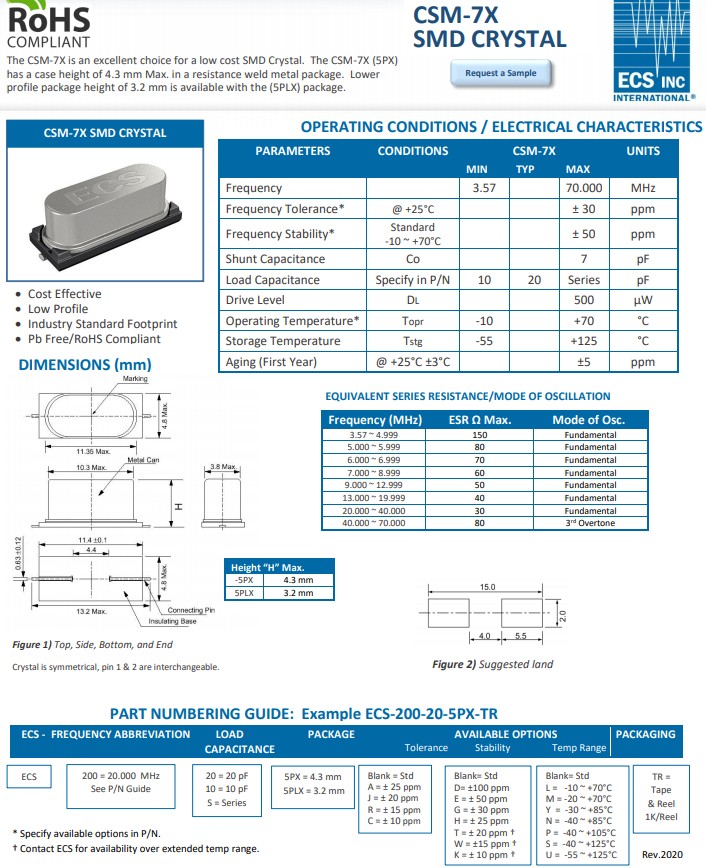

ECS Inc. International的表面贴装(SMD)晶体非常可靠，在许多应用中具有长期稳定性。石英晶振可在定制和标准频率下供应，也可定制具有紧密稳定性和低等效串联电阻(ESR)的产品。ECS Inc .提供市场上最广泛的封装尺寸选择之一，小到1.2mmx1.0mm封装，温度范围高达+150℃。 CSM-7X是一款紧凑型表面贴装晶体，小体积尺寸采用11.35毫米x4.8毫米x4.3毫米双焊盘封装，无源贴片晶振，频率范围：3.57MHz~70MHz，CSM-7X提供了50ppm在-10℃~70℃的温度范围内保持稳定。符合RoHS 3和REACH标准 ，该器件是对稳定性要求不高的应用的理想选择。表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择
表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择，ECS Inc .的表面贴装(SMD)晶体为用户提供了一种解决方案，可为各种应用提供长期稳定性和可靠性。表面贴装功能允许您的器件封装时，将引脚直接焊接到电路板表面的焊盘上。SMD石英晶体提供定制和标准频率，非常适合以下应用:微处理器、物联网(IoT ),包括GPS系统和智能家居安全系统、汽车计算机和组件、智能手表等可穿戴技术、Wi-Fi、连接等。
晶振料号
厂家
型号
频率
工作温度
包装/封装
ECS-120-20-5PX-TR
ECS Crystal
CSM-7X
12MHz
-10°C ~ 70°C
HC49/US
ECS-49-20-5PX-TR
ECS Crystal
CSM-7X
4.9152MHz
-10°C ~ 70°C
HC49/US
ECS-50-20-5PX-TR
ECS Crystal
CSM-7X
5MHz
-10°C ~ 70°C
HC49/US
ECS-120-18-5PX-TR
ECS Crystal
CSM-7X
12MHz
-10°C ~ 70°C
HC49/US
ECS-40-20-5PX-TR
ECS Crystal
CSM-7X
4MHz
-10°C ~ 70°C
HC49/US
ECS-80-18-5PX-TR
ECS Crystal
CSM-7X
8MHz
-10°C ~ 70°C
HC49/US
ECS-184-18-5PX-TR
ECS Crystal
CSM-7X
18.432MHz
-10°C ~ 70°C
HC49/US
ECS-147.4-20-5PX-TR
ECS Crystal
CSM-7X
14.7456MHz
-10°C ~ 70°C
HC49/US
ECS-160-20-5PX-TR
ECS Crystal
CSM-7X
16MHz
-10°C ~ 70°C
HC49/US
ECS-245.7-20-5PX-TR
ECS Crystal
CSM-7X
24.576MHz
-10°C ~ 70°C
HC49/US
ECS-250-18-5PX-F-TR
ECS Crystal
CSM-7X
25MHz
-10°C ~ 70°C
HC49/US
ECS-240-12-5PX-TR
ECS Crystal
CSM-7X
24MHz
-10°C ~ 70°C
HC49/US
ECS-36-20-5PX-TR
ECS Crystal
CSM-7X
3.6864MHz
-10°C ~ 70°C
HC49/US
ECS-100-18-5PX-TR
ECS Crystal
CSM-7X
10MHz
-10°C ~ 70°C
HC49/US
ECS-98.3-20-5PX-TR
ECS Crystal
CSM-7X
9.8304MHz
-10°C ~ 70°C
HC49/US
ECS-184-20-5PX-TR
ECS Crystal
CSM-7X
18.432MHz
-10°C ~ 70°C
HC49/US
ECS-35-17-5PX-TR
ECS Crystal
CSM-7X
3.579545MHz
-10°C ~ 70°C
HC49/US
ECS-110.5-S-5PX-TR
ECS Crystal
CSM-7X
11.0592MHz
-10°C ~ 70°C
HC49/US
ECS-200-20-5PX-TR
ECS Crystal
CSM-7X
20MHz
-10°C ~ 70°C
HC49/US
ECS-36-S-5PX-TR
ECS Crystal
CSM-7X
3.6864MHz
-10°C ~ 70°C
HC49/US
ECS-41-20-5PX-TR
ECS Crystal
CSM-7X
4.096MHz
-10°C ~ 70°C
HC49/US
ECS-200-16-5PX-TR
ECS Crystal
CSM-7X
20MHz
-10°C ~ 70°C
HC49/US
ECS-240-20-5PX-TR
ECS Crystal
CSM-7X
24MHz
-10°C ~ 70°C
HC49/US
ECS-60-32-5PX-TR
ECS Crystal
CSM-7X
6MHz
-10°C ~ 70°C
HC49/US
ECS-73-20-5PX-TR
ECS Crystal
CSM-7X
7.3728MHz
-10°C ~ 70°C
HC49/US
ECS-92.1-20-5PX-TR
ECS Crystal
CSM-7X
9.216MHz
-10°C ~ 70°C
HC49/US
ECS-40-S-5PX-TR
ECS Crystal
CSM-7X
4MHz
-10°C ~ 70°C
HC49/US
ECS-160-S-5PX-TR
ECS Crystal
CSM-7X
16MHz
-10°C ~ 70°C
HC49/US
ECS-60-20-5PX-TR
ECS Crystal
CSM-7X
6MHz
-10°C ~ 70°C
HC49/US
ECS-184-S-5PX-TR
ECS Crystal
CSM-7X
18.432MHz
-10°C ~ 70°C
HC49/US
ECS-50-S-5PX-TR
ECS Crystal
CSM-7X
5MHz
-10°C ~ 70°C
HC49/US
ECS-110.5-32-5PX-TR
ECS Crystal
CSM-7X
11.0592MHz
-10°C ~ 70°C
HC49/US
ECS-61-32-5PX-TR
ECS Crystal
CSM-7X
6.144MHz
-10°C ~ 70°C
HC49/US
ECS-120-32-5PX-TR
伊西斯晶振
CSM-7X
12MHz
-10°C ~ 70°C
HC49/US
ECS-270-18-5PX-F-TR
ECS Crystal
CSM-7X
27MHz
-10°C ~ 70°C
HC49/US
ECS-49-S-5PX-TR
ECS Crystal
CSM-7X
4.9152MHz
-10°C ~ 70°C
HC49/US
ECS-100-S-5PX-TR
ECS Crystal
CSM-7X
10MHz
-10°C ~ 70°C
HC49/US
ECS-147.4-S-5PX-TR
ECS Crystal
CSM-7X
14.7456MHz
-10°C ~ 70°C
HC49/US
ECS-135.6-12-5PX-TR
ECS Crystal
CSM-7X
13.56MHz
-10°C ~ 70°C
HC49/US
ECS-120-S-5PX-TR
ECS Crystal
CSM-7X
12MHz
-10°C ~ 70°C
HC49/US
ECS-122.8-S-5PX-TR
ECS Crystal
CSM-7X
12.288MHz
-10°C ~ 70°C
HC49/US
ECS-200-18-5PX-TR
ECS Crystal
CSM-7X
20MHz
-10°C ~ 70°C
HC49/US
ECS-80-18-5PX-JEM-TR
ECS Crystal
CSM-7X
8MHz
-20°C ~ 70°C
HC49/US
ECS-49-18-5PX-JEM-TR
ECS Crystal
CSM-7X
4.9152MHz
-20°C ~ 70°C
HC49/US
ECS-40-18-5PXEN-TR
ECS Crystal
CSM-7X
4MHz
-40°C ~ 85°C
HC49/US
ECS-76.8-18-5PXEN-TR
ECS Crystal
CSM-7X
7.68MHz
-40°C ~ 85°C
HC49/US
ECS-98.3-18-5PXEN-TR
ECS Crystal
CSM-7X
9.8304MHz
-40°C ~ 85°C
HC49/US
ECS-42-18-5PXEN-TR
ECS Crystal
CSM-7X
4.194304MHz
-40°C ~ 85°C
HC49/US
ECS-110-18-5PXEN-TR
ECS Crystal
CSM-7X
11MHz
-40°C ~ 85°C
HC49/US
ECS-110.5-18-5PXEN-TR
ECS Crystal
CSM-7X
11.0592MHz
-40°C ~ 85°C
HC49/US
ECS-40.3-20-5PX-TR
ECS Crystal
CSM-7X
4.032MHz
-10°C ~ 70°C
HC49/US
ECS-143-20-5PX-TR
ECS Crystal
CSM-7X
14.31818MHz
-10°C ~ 70°C
HC49/US
ECS-120-18-5PLX-GN-TR
ECS Crystal
CSM-7X
12MHz
-40°C ~ 85°C
HC49/US
ECS-42-12-5PX-TR
ECS Crystal
CSM-7X
4.194304MHz
-10°C ~ 70°C
HC49/US
ECS-122.8-20-5PX-TR
ECS Crystal
CSM-7X
12.288MHz
-10°C ~ 70°C
HC49/US
ECS-80-S-5PX-TR
ECS Crystal
CSM-7X
8MHz
-10°C ~ 70°C
HC49/US
ECS-240-16-5PX-TR
ECS Crystal
CSM-7X
24MHz
-10°C ~ 70°C
HC49/US
ECS-92.1-S-5PX-TR
ECS Crystal
CSM-7X
9.216MHz
-10°C ~ 70°C
HC49/US
ECS-73-S-5PX-TR
ECS Crystal
CSM-7X
7.3728MHz
-10°C ~ 70°C
HC49/US
ECS-60-S-5PX-TR
ECS Crystal
CSM-7X
6MHz
-10°C ~ 70°C
HC49/US
ECS-80-32-5PX-TR
ECS Crystal
CSM-7X
8MHz
-10°C ~ 70°C
HC49/US
ECS-59.9-20-5PX-TR
ECS Crystal
CSM-7X
5.9904MHz
-10°C ~ 70°C
HC49/US
ECS-200-18-5PXEN-TR
ECS Crystal
CSM-7X
20MHz
-40°C ~ 85°C
HC49/US
ECS-35-18-5PXEN-TR
ECS Crystal
CSM-7X
3.579545MHz
-40°C ~ 85°C
HC49/US
ECS-36-18-5PXEN-TR
ECS Crystal
CSM-7X
3.6864MHz
-40°C ~ 85°C
HC49/US
ECS-73-18-5PXEN-TR
ECS Crystal
CSM-7X
7.3728MHz
-40°C ~ 85°C
HC49/US
ECS-163-18-5PXEN-TR
ECS Crystal
CSM-7X
16.384MHz
-40°C ~ 85°C
HC49/US
ECS-245.7-18-5PXEN-TR
ECS Crystal
CSM-7X
24.576MHz
-40°C ~ 85°C
HC49/US
ECS-286.3-18-5PX-F-EN-TR
ECS Crystal
CSM-7X
28.63636MHz
-40°C ~ 85°C
HC49/US
ECS-160-18-5PXEN-TR
ECS Crystal
CSM-7X
16MHz
-40°C ~ 85°C
HC49/US
ECS-240-18-5PXEN-TR
ECS Crystal
CSM-7X
24MHz
-40°C ~ 85°C
HC49/US
ECS-221-18-5PXEN-TR
ECS Crystal
CSM-7X晶体
22.1184MHz
-40°C ~ 85°C
HC49/US
ECS-122.8-18-5PXEN-TR
ECS Crystal
CSM-7X
12.288MHz
-40°C ~ 85°C
HC49/US
ECS-80-18-5PXDS-TR
ECS Crystal
CSM-7X
8MHz
-40°C ~ 125°C
HC49/US
ECS-160-18-5PX-TR
ECS Crystal
CSM-7X
16MHz
-10°C ~ 70°C
HC49/US
ECS-100-20-5PX-TR
ECS Crystal
CSM-7X
10MHz
-10°C ~ 70°C
HC49/US
ECS-200-18-5PX-JEM-TR
ECS Crystal
CSM-7X
20MHz
-20°C ~ 70°C
HC49/US
ECS-120-18-5PX-JEM-TR
ECS Crystal
CSM-7X
12MHz
-20°C ~ 70°C
HC49/US
ECS-250-18-5PX-JEM-TR
ECS Crystal
CSM-7X
25MHz
-20°C ~ 70°C
HC49/US
ECS-480-20-5PX-TR
ECS Crystal
CSM-7X
48MHz
-10°C ~ 70°C
HC49/US
ECS-250-18-5PLX-GN-TR
ECS Crystal
CSM-7X
25MHz
-40°C ~ 85°C
HC49/US
ECS-150-S-5PX-TR
ECS Crystal
CSM-7X
15MHz
-10°C ~ 70°C
HC49/US
ECS-200-S-5PX-TR
ECS Crystal
CSM-7X
20MHz
-10°C ~ 70°C
HC49/US
ECS-196.6-20-5PX-TR
ECS Crystal
CSM-7X
19.6608MHz
-10°C ~ 70°C
HC49/US
ECS-110.5-20-5PX-TR
ECS Crystal
CSM-7X
11.0592MHz
-10°C ~ 70°C
HC49/US
ECS-80-20-5PX-TR
ECS Crystal
CSM-7X
8MHz
-10°C ~ 70°C
HC49/US
ECS-41-18-5PXEN-TR
ECS Crystal
CSM-7X
4.096MHz
-40°C ~ 85°C
HC49/US
ECS-143-18-5PXEN-TR
ECS Crystal
CSM-7X
14.31818MHz
-40°C ~ 85°C
HC49/US
ECS-50-18-5PXEN-TR
ECS Crystal
CSM-7X
5MHz
-40°C ~ 85°C
HC49/US
