ECS-240-8-36B2-CKY-TR具有紧密的稳定性低老化SMD晶体
ECS Inc.晶振集团成为市场领导者提供创新、先进的压电石英晶体元器件、压电石英晶振、有源晶体频率控制组件解决方案到电信、工业、公用事业、导航、汽车、电子、航空航天和医疗与一流的制造行业的基于石英晶体/过滤器,时钟振荡器、陶瓷谐振器/过滤器和其他基于压电的产品.ECS晶振以迅速扩大的市场部门的多元化产品基础,热情关注客户和市场趋势,调动企业的力量,为世界各地的客户提供一贯的卓越服务.

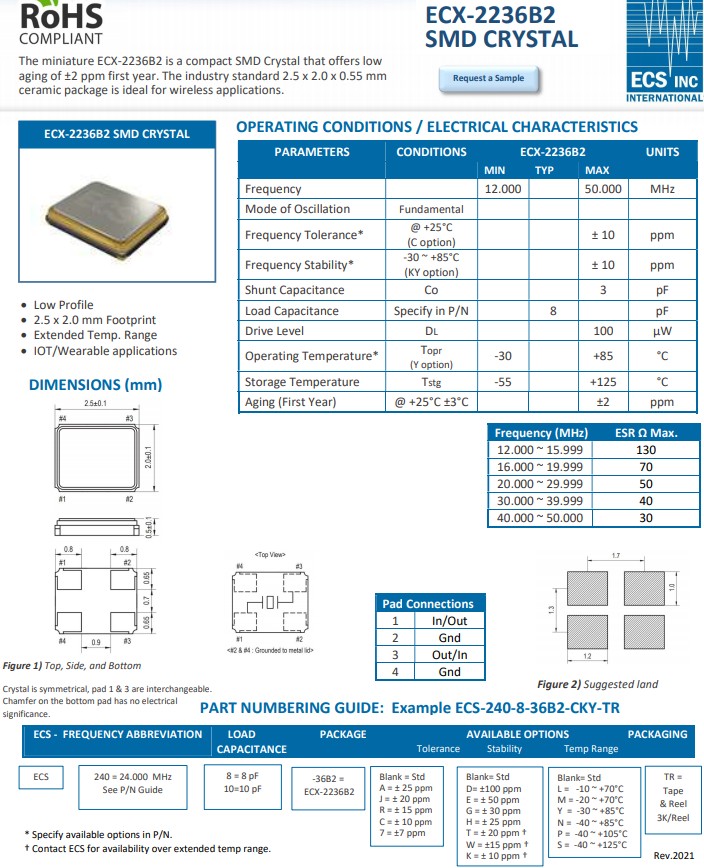

ECS贴片晶振ECX-2236B2系列表面贴装(SMD)晶体采用行业标准的2.5毫米x2.0毫米x0.5毫米4焊盘陶瓷封装。这些电子元件提供12MHz至50 MHz的宽频率范围、10ppm的紧密稳定性和25°C±3°C下的低2ppm第一年老化时间，并可选择扩展工作温度范围。标准ECX-2236B2晶体提供10ppm频率容差和标准范围的晶体负载电容选项。该电子元件非常适合物联网、无线和可穿戴应用。
ECS-240-8-36B2-CKY-TR具有紧密的稳定性低老化SMD晶体
| Image | 无源贴片晶振 | Frequency |
Frequency Tolerance |
Frequency Stability |
Operating Temperature |
|
ECS-120-10-36B2-CWY-TR | 12 MHz | ±10 ppm | ±15 ppm | -30ºC ~ +85ºC |
|
|
ECS-120-10-36B2-JTN-TR | 12 MHz | ±20 ppm | ±20 ppm | -40ºC ~ +85ºC |
|
|
ECS-160-8-36B2-CKM-TR | 16 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-160-8-36B2-CKY-TR | 16 MHz | ±10 ppm | ±10 ppm | -30ºC ~ +85ºC |
|
|
ECS-160-9-36B2-CKM-TR | 16 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-163.84-10-36B2-CTN-TR | 16.386 MHz | ±10 ppm | ±20 ppm | -40ºC ~ +85ºC |
|
|
ECS-240-10-36B2-CTN-TR | 24 MHz | ±10 ppm | ±20 ppm | -40ºC ~ +85ºC |
|
|
ECS-240-8-36B2-CKM-TR | 24 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-240-8-36B2-CWN-TR | 24 MHz | ±15 ppm | ±15 ppm | -40ºC ~ +85ºC |
|
|
ECS-245.7-10-36B2-CTM-TR | 24.576 MHz | ±10 ppm | ±20 ppm | -20ºC ~ +70ºC |
|
|
ECS-250-10-36B2-CTN-TR | 25 MHz | ±10 ppm | ±20 ppm | -40ºC ~ +85ºC |
|
|
NEW |
25 MHz | ±20 ppm | ±20 ppm | -20ºC ~ +70ºC |
|
|
ECS-250-18-36B2-CTY-TR | 25 MHz | ±10 ppm | ±20 ppm | -30ºC ~ +85ºC |
|
|
ECS-250-8-36B2-CKM-TR | 25 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-260-8-36B2-CKM-TR | 26 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-300-8-36B2-CKM-TR | 30 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-320-10-36B2-CKM-TR | 32 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-320-10-36B2-CTN-TR | 32 MHz | ±10 ppm | ±20 ppm | -40ºC ~ +85ºC |
|
|
ECS-320-12-36B2-CKY-TR | 32 MHz | ±10 ppm | ±10 ppm | -30ºC ~ +85ºC |
|
|
ECS-320-8-36B2-CKM-TR | 32 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
|
|
ECS-320-8-36B2-CKY-TR | 32 MHz | ±10 ppm | ±10 ppm | -30ºC ~ +85ºC |
|
|
ECS-400-10-36B2-CKM-TR | 40 MHz | ±10 ppm | ±10 ppm | -20ºC ~ +70ºC |
| 晶振料号 | 厂家 | 型号 | 频率 | 工作温度 | 包装/封装 | Type 系列 |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-160-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-10-36Q-ES-TR |
ECS Crystal |
ECX-2236Q | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-250-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-250-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-250-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-260-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-260-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-260-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-10-36Q-ES-TR | ECScrystal | ECX-2236Q | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-200-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-300-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
| ECS-120-10-36Q-ES-TR | ECS Crystal | ECX-2236Q | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead | MHz Crystal |
特点：
小体积尺寸：2.5x2.0x0.5mm四脚贴片晶振
频率范围：12MHz~50MHz晶体
50ppm标准频率容差，提供7ppm选项
10ppm标准频率稳定性
低老化，最大2ppm。第一年在25摄氏度±3摄氏度
标准工作温度范围:-40℃至+85℃
提供扩展温度范围选项
符合RoHS和REACH标准
应用于：物联网，产业的，无线的，移动设备，可穿戴设备，Wi-Fi，蓝牙
