亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器
亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器，百利通亚陶公司以超乎寻常的创新能力开发大量优质的有源晶振产品，成功实现自我的价值最大化的同时，也为自身增加无限的光辉时刻，为了纪念那些有意义的时光，亚陶公司针对性开发了具有里程碑意义的产品，产品代表着拥有无数光环与辉煌的Diodes，也见证着其成长的过程。
| Manufacturer Part Number原厂代码 | 台产晶振品牌 | Series型号 | Frequency 频率 | Frequency Stability频率稳定度 | Operating Temperature 工作温度 |
| FD5000036 | Diodes晶振 | SaRonix-eCera™ FD | 50MHz | ±50ppm | -40°C ~ 85°C |
| FD5000037 | Diodes晶振 | SaRonix-eCera™ FD | 50MHz | ±50ppm | -20°C ~ 70°C |
| FD5000040 | Diodes晶振 | SaRonix-eCera™ FD | 50MHz | ±50ppm | -20°C ~ 70°C |
| FD5400017 | Diodes晶振 | SaRonix-eCera™ FD | 54MHz | ±50ppm | -40°C ~ 85°C |
| FD5670001 | Diodes晶振 | SaRonix-eCera™ FD | 56.75MHz | ±50ppm | -20°C ~ 70°C |
| FD6000016 | Diodes晶振 | SaRonix-eCera™ FD | 60MHz | ±50ppm | -20°C ~ 70°C |
| FD6250007 | Diodes晶振 | SaRonix-eCera™ FD | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FD6250008 | Diodes晶振 | SaRonix-eCera™ FD | 62.5MHz | ±25ppm | -20°C ~ 70°C |
| FD6250009 | Diodes晶振 | SaRonix-eCera™ FD | 62.5MHz | ±50ppm | -40°C ~ 85°C |
| FD6250011 | Diodes晶振 | SaRonix-eCera™ FD | 62.5MHz | ±50ppm | -20°C ~ 70°C |
| FD6400006 | Diodes晶振 | SaRonix-eCera™ FD | 64MHz | ±50ppm | -20°C ~ 70°C |
| FD6400007 | Diodes晶振 | SaRonix-eCera™ FD | 64MHz | ±25ppm | -20°C ~ 70°C |
| FD6400008 | Diodes晶振 | SaRonix-eCera™ FD | 64MHz | ±50ppm | -40°C ~ 85°C |
| FD6600015 | Diodes晶振 | SaRonix-eCera™ FD | 66MHz | ±25ppm | -20°C ~ 70°C |
| FD6600016 | Diodes晶振 | SaRonix-eCera™ FD | 66MHz | ±50ppm | -40°C ~ 85°C |
| FD6600017 | Diodes晶振 | SaRonix-eCera™ FD | 66MHz | ±50ppm | -20°C ~ 70°C |
| FD6660016 | Diodes晶振 | SaRonix-eCera™ FD | 66.666MHz | ±50ppm | -20°C ~ 70°C |
| FD6660017 | Diodes晶振 | SaRonix-eCera™ FD | 66.666MHz | ±25ppm | -20°C ~ 70°C |
| FD6660018 | Diodes晶振 | SaRonix-eCera™ FD | 66.666MHz | ±50ppm | -40°C ~ 85°C |
| FD6660019 | Diodes晶振 | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm | -20°C ~ 70°C |
| FD6660020 | Diodes晶振 | SaRonix-eCera™ FD | 66.6667MHz | ±25ppm | -20°C ~ 70°C |
| FD6660021 | Diodes晶振 | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm | -40°C ~ 85°C |
| FD6660024 | Diodes晶振 | SaRonix-eCera™ FD | 66.667MHz | ±25ppm | -20°C ~ 70°C |
| FD6800001 | Diodes晶振 | SaRonix-eCera™ FD | 68MHz | ±50ppm | -40°C ~ 85°C |
| FD7420006 | Diodes晶振 | SaRonix-eCera™ FD | 74.25MHz | ±25ppm | -20°C ~ 70°C |
| FD7500010 | Diodes晶振 | SaRonix-eCera™ FD | 75MHz | ±50ppm | -20°C ~ 70°C |
| FD7500011 | Diodes晶振 | SaRonix-eCera™ FD | 75MHz | ±25ppm | -20°C ~ 70°C |
| FD7500013 | Diodes晶振 | SaRonix-eCera™ FD | 75MHz | ±50ppm | -40°C ~ 85°C |
| FD7770004 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±50ppm | -20°C ~ 70°C |
| FD7770005 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| FD7770006 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FD7770007 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±50ppm | -20°C ~ 70°C |
| FD7770008 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| FD7770009 | Diodes晶振 | SaRonix-eCera™ FD | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FDC500014 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| FK0100001 | Diodes晶振 | SaRonix-eCera™ FK | 1MHz | ±50ppm | -20°C ~ 70°C |
| FK0100002 | Diodes晶振 | SaRonix-eCera™ FK | 1MHz | ±50ppm | -20°C ~ 70°C |
| FK0180004 | Diodes晶振 | SaRonix-eCera™ FK | 1.843MHz | ±50ppm | -20°C ~ 70°C |
| FK0180005 | Diodes晶振 | SaRonix-eCera™ FK | 1.843MHz | ±25ppm | -20°C ~ 70°C |
| FK0180006 | Diodes晶振 | SaRonix-eCera™ FK | 1.843MHz | ±50ppm | -40°C ~ 85°C |
| FK0200002 | Diodes晶振 | SaRonix-eCera™ FK | 2MHz | ±50ppm | -20°C ~ 70°C |
| FK0360002 | Diodes晶振 | SaRonix-eCera™ FK | 3.686MHz | ±50ppm | -20°C ~ 70°C |
| FK0360003 | Diodes晶振 | SaRonix-eCera™ FK | 3.686MHz | ±25ppm | -20°C ~ 70°C |
| FK0360004 | Diodes晶振 | SaRonix-eCera™ FK | 3.686MHz | ±50ppm | -40°C ~ 85°C |
| FK0400005 | Diodes晶振 | SaRonix-eCera™ FK | 4MHz | ±25ppm | -20°C ~ 70°C |
| FK0400007 | Diodes晶振 | SaRonix-eCera™ FK | 4MHz | ±50ppm | -40°C ~ 85°C |
| FK0500002 | Diodes晶振 | SaRonix-eCera™ FK | 5MHz | ±50ppm | -40°C ~ 85°C |
| FK0530001 | Diodes晶振 | SaRonix-eCera™ FK | 5.33MHz | ±50ppm | -40°C ~ 85°C |
| FK0610001 | Diodes晶振 | SaRonix-eCera™ FK | 6.14MHz | ±25ppm | -20°C ~ 70°C |
| FK0670001 | Diodes晶振 | SaRonix-eCera™ FK | 6.758MHz | ±25ppm | -20°C ~ 70°C |
| FK0800004 | Diodes晶振 | SaRonix-eCera™ FK | 8MHz | ±50ppm | -40°C ~ 85°C |
| FK0810001 | Diodes晶振 | SaRonix-eCera™ FK | 8.192MHz | ±50ppm | -20°C ~ 70°C |
| FK0810002 | Diodes晶振 | SaRonix-eCera™ FK | 8.192MHz | ±25ppm | -20°C ~ 70°C |
| FK0810003 | Diodes晶振 | SaRonix-eCera™ FK | 8.192MHz | ±50ppm | -40°C ~ 85°C |
| FK1000006 | Diodes晶振 | SaRonix-eCera™ FK | 10MHz | ±50ppm | -20°C ~ 70°C |
| FK1000007 | Diodes晶振 | SaRonix-eCera™ FK | 10MHz | ±25ppm | -20°C ~ 70°C |
| FK1000008 | Diodes晶振 | SaRonix-eCera™ FK | 10MHz | ±50ppm | -40°C ~ 85°C |
| FK1200010 | Diodes晶振 | SaRonix-eCera™ FK | 12MHz | ±50ppm | -20°C ~ 70°C |
| FK1200013 | Diodes晶振 | SaRonix-eCera™ FK | 12MHz | ±25ppm | -20°C ~ 70°C |
| FK1220006 | Diodes晶振 | SaRonix-eCera™ FK | 12.288MHz | ±25ppm | -20°C ~ 70°C |
| FK1220007 | Diodes晶振 | SaRonix-eCera™ FK | 12.288MHz | ±50ppm | -20°C ~ 70°C |
| FK1220008 | Diodes晶振 | SaRonix-eCera™ FK | 12.288MHz | ±25ppm | -20°C ~ 70°C |
| FK1220009 | Diodes晶振 | SaRonix-eCera™ FK | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| FK1300008 | Diodes晶振 | SaRonix-eCera™ FK | 13MHz | ±50ppm | -20°C ~ 70°C |
| FK1300010 | Diodes晶振 | SaRonix-eCera™ FK | 13MHz | ±50ppm | -20°C ~ 70°C |
| FK1430004 | Diodes晶振 | SaRonix-eCera™ FK | 14.318MHz | ±50ppm | -20°C ~ 70°C |
| FK1600003 | Diodes晶振 | SaRonix-eCera™ FK | 16MHz | ±25ppm | -20°C ~ 70°C |
| FK1600004 | Diodes晶振 | SaRonix-eCera™ FK | 16MHz | ±50ppm | -20°C ~ 70°C |
| FK1600005 | Diodes晶振 | SaRonix-eCera™ FK | 16MHz | ±50ppm | -40°C ~ 85°C |
| FK1630003 | Diodes晶振 | SaRonix-eCera™ FK | 16.384MHz | ±50ppm | -20°C ~ 70°C |
| FK1630004 | Diodes晶振 | SaRonix-eCera™ FK | 16.384MHz | ±25ppm | -20°C ~ 70°C |
| FK1630005 | Diodes晶振 | SaRonix-eCera™ FK | 16.384MHz | ±50ppm | -40°C ~ 85°C |
| FK1840001 | Diodes晶振 | SaRonix-eCera™ FK | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| FK1840002 | 百利通亚陶晶振 | SaRonix-eCera™ FK | 18.432MHz | ±25ppm | -20°C ~ 70°C |
| FK1840003 | Diodes晶振 | SaRonix-eCera™ FK | 18.432MHz | ±50ppm | -40°C ~ 85°C |
| FK1940001 | Diodes晶振 | SaRonix-eCera™ FK | 19.44MHz | ±50ppm | -20°C ~ 70°C |
| FK1940002 | Diodes晶振 | SaRonix-eCera™ FK | 19.44MHz | ±25ppm | -20°C ~ 70°C |
| FK1940004 | Diodes晶振 | SaRonix-eCera™ FK | 19.44MHz | ±50ppm | -40°C ~ 85°C |
| FK2000022 | Diodes晶振 | SaRonix-eCera™ FK | 20MHz | ±50ppm | -20°C ~ 70°C |
| FK2000023 | Diodes晶振 | SaRonix-eCera™ FK | 20MHz | ±25ppm | -20°C ~ 70°C |
| FK2000025 | Diodes晶振 | SaRonix-eCera™ FK | 20MHz | ±50ppm | -40°C ~ 85°C |

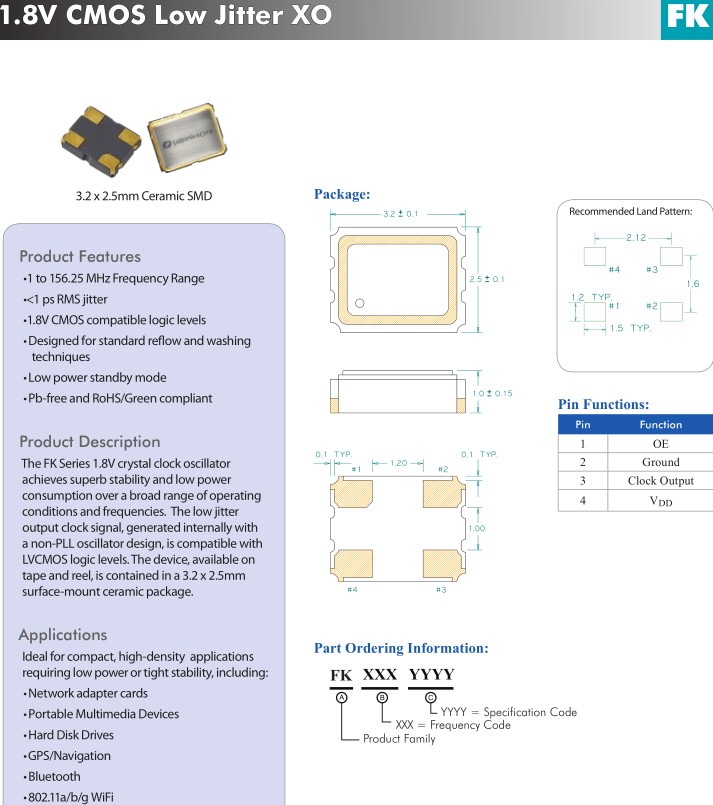

晶体振荡器产品特点:1到156.25 MHz频率范围<1psRMS抖动1.8VCMOS兼容逻辑水平，为标准回流和洗涤技术设计，低功率待机模式无pb和RoHS/绿色兼容。亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器.
应用程序适合紧凑、高密度、需要低功率或紧密稳定性的应用，包括：网络适配器卡便携式多媒体设备硬盘驱动器GPS/导航蓝牙802.11a/b/g WiFi.
