百利通亚陶公司生产的高性能有源晶体,半导体器件可用于广泛的应用，包括用于工厂、交通、电动和混合动力汽车、车辆充电站、LED 照明、智能家居技术、绿色电子和远程医疗医疗设备的节能产品，以及用于节能和消除污染的产品。我们与客户合作开发可持续产品，以帮助他们及其客户减少总体碳足迹。亚陶晶振的FN2400046是一款极其精密型的时钟振荡器,主要用于服务器和存储平台,ECERA贴片晶振

Diodes公司（纳斯达克股票代码：DIOD）宣布推出有源晶振系列产品线,同时也推出AP7353低压差稳压器，该稳压器采用小封装提供高电源抑制比 (PSRR)，可满足可穿戴设备等对噪声敏感的电池供电设备的电压调节需求，便携式设备和连接的传感器。

FN1840019	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1840020	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±50ppm	-40°C ~ 85°C
FN1840021	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1940015	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-20°C ~ 70°C
FN1940016	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±25ppm	-20°C ~ 70°C
FN1940018	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-40°C ~ 85°C
FN2000113	Diodes晶振	SaRonix-eCera™ FN	20MHz	±25ppm	-20°C ~ 70°C
FN2000118	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-40°C ~ 85°C
FN2000121	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2000123	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2210008	Diodes晶振	SaRonix-eCera™ FN	22.118MHz	±50ppm	-20°C ~ 70°C
FN2400045	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-40°C ~ 85°C
FN2400046	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-20°C ~ 70°C
FN2400047	Diodes晶振	SaRonix-eCera™ FN	24MHz	±25ppm	-20°C ~ 70°C
FN2450040	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±50ppm	-40°C ~ 85°C
FN2450041	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±25ppm	-20°C ~ 70°C
FN2450042	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±50ppm	-20°C ~ 70°C
FN2450046	Diodes晶振	SaRonix-eCera™ FN	24.575MHz	±50ppm	-40°C ~ 85°C
FN2500154	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500155	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-20°C ~ 70°C
FN2500157	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500161	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C

AP7353采用X1-WLB0707-4（A1 型）和 X2-DFN1010-4（B 型）封装，每边的尺寸均小于 1mm。这些尺寸导致支持密集印刷电路板布局的小尺寸。尽管尺寸很大，AP7353仍可提供目前部署到物联网中的最新电子设备所需的电压和电流水平，在 250mA 时高达 4.5V。 亚陶晶振的FN2400046是一款极其精密型的时钟振荡器,主要用于服务器和存储平台,ECERA贴片晶振

FN2500164	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500165	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500166	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±50ppm	-20°C ~ 70°C
FN2500169	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500170	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500179	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±50ppm	-20°C ~ 70°C
FN2500180	Diodes晶振	SaRonix-eCera™ FN	25.002MHz	±25ppm	-20°C ~ 70°C
FN2500183	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500186	Diodes晶振	SaRonix-eCera™ FN	25.006MHz	±50ppm	-20°C ~ 70°C
FN2500187	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-20°C ~ 70°C
FN2550003	Diodes晶振	SaRonix-eCera™ FN	25.5MHz	±50ppm	-40°C ~ 85°C
FN2600023	Diodes晶振	SaRonix-eCera™ FN	26MHz	±50ppm	-20°C ~ 70°C
FN2600024	Diodes晶振	SaRonix-eCera™ FN	26MHz	±25ppm	-20°C ~ 70°C
FN2700068	Diodes晶振	SaRonix-eCera™ FN	27MHz	±25ppm	-20°C ~ 70°C
FN2700070	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-40°C ~ 85°C
FN2700074	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-40°C ~ 85°C
FN2700075	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-20°C ~ 70°C
FN2700078	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-20°C ~ 70°C
FN2700080	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-20°C ~ 70°C
FN2820005	Diodes晶振	SaRonix-eCera™ FN	28.224MHz	±25ppm	-20°C ~ 70°C
FN2860017	Diodes晶振	SaRonix-eCera™ FN	28.636MHz	±50ppm	-20°C ~ 70°C
FN2940027	Diodes晶振	SaRonix-eCera™ FN	29.491MHz	±50ppm	-20°C ~ 70°C

百利通亚陶晶振推出的1kHz时90dB 的 PSRR 和 18μA 的低静态电流使 AP7353 特别适用于包括噪声敏感模拟电路或射频接口的电池供电设备。AP7353 的高 PSRR 及其 10µV宽带噪声电压有助于支持高信噪比。这些属性将 AP7353 定位为该应用领域中领先的低压差 (LDO) 稳压器。

FN3000035	Diodes晶振	SaRonix-eCera™ FN	30MHz	±25ppm	-20°C ~ 70°C
FN3000036	Diodes晶振	SaRonix-eCera™ FN	30MHz	±50ppm	-40°C ~ 85°C
FN3000038	Diodes晶振	SaRonix-eCera™ FN	30MHz	±50ppm	-20°C ~ 70°C
FN3270024	Diodes晶振	SaRonix-eCera™ FN	32.768MHz	±25ppm	-20°C ~ 70°C
FN3270025	Diodes晶振	SaRonix-eCera™ FN	32.768MHz	±50ppm	-20°C ~ 70°C
FN3270026	Diodes晶振	SaRonix-eCera™ FN	32.768MHz	±50ppm	-40°C ~ 85°C
FN3300068	Diodes晶振	SaRonix-eCera™ FN	33MHz	±25ppm	-20°C ~ 70°C
FN3300074	Diodes晶振	SaRonix-eCera™ FN	33MHz	±50ppm	-20°C ~ 70°C
FN3330069	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±50ppm	-20°C ~ 70°C
FN3330070	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±25ppm	-20°C ~ 70°C
FN3330071	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±50ppm	-20°C ~ 70°C
FN3330072	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±25ppm	-20°C ~ 70°C
FN3330073	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±50ppm	-40°C ~ 85°C
FN3330075	Diodes晶振	SaRonix-eCera™ FN	33.333MHz	±50ppm	-40°C ~ 85°C
FN3530023	Diodes晶振	SaRonix-eCera™ FN	35.328MHz	±50ppm	-20°C ~ 70°C
FN3530024	Diodes晶振	SaRonix-eCera™ FN	35.328MHz	±25ppm	-20°C ~ 70°C
FN3600021	Diodes晶振	SaRonix-eCera™ FN	36MHz	±50ppm	-40°C ~ 85°C
FN3680007	Diodes晶振	SaRonix-eCera™ FN	36.864MHz	±50ppm	-20°C ~ 70°C
FN3680009	Diodes晶振	SaRonix-eCera™ FN	36.864MHz	±50ppm	-40°C ~ 85°C
FN3700009	Diodes晶振	SaRonix-eCera™ FN	37.056MHz	±25ppm	-20°C ~ 70°C
FN3890005	Diodes晶振	SaRonix-eCera™ FN	38.912MHz	±50ppm	-20°C ~ 70°C

AP7353的使能引脚允许 LDO 稳压器在不需要时进入待机模式。为了提高稳健性，还包括短路和过热保护。AP7353D 版本可在禁用时释放输出。

AP7353在 2.0V 和5.5V 之间的宽输入电压范围内工作，具有1.8V 和 4.5V之间的固定输出电压，在从1mA 至 250mA。

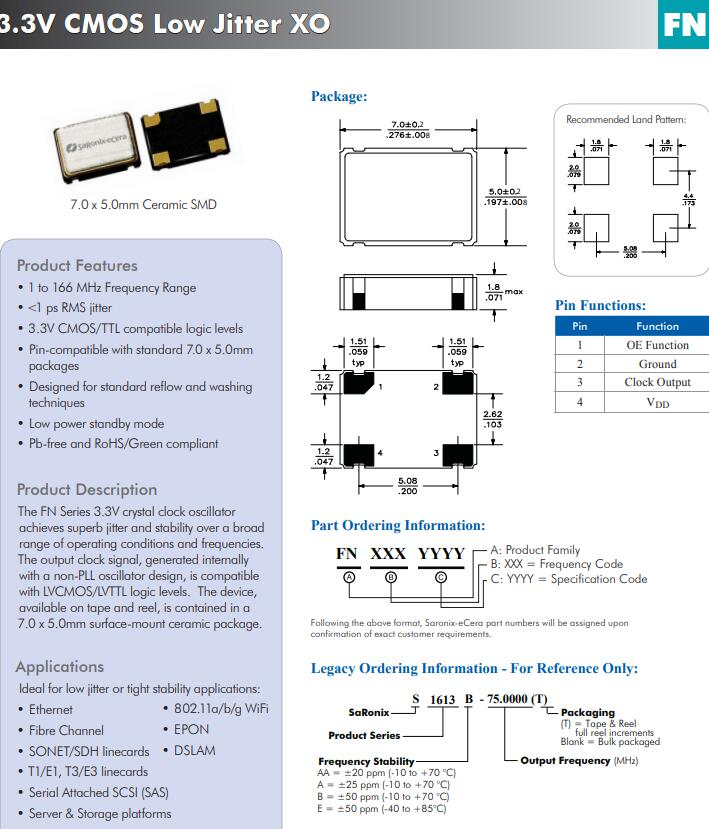

产品特性

1 ~ 166mhz频率范围
<1 ps RMS抖动
3.3V CMOS/TTL兼容逻辑电平
引脚兼容标准7.0 x 5.0mm包
用于标准回流和洗涤技术
低功耗待机模式
无铅和RoHS/绿色环保（无铅环保晶振）
产品描述
FN系列3.3V晶体时钟振荡器实现卓越的抖动和稳定的广泛操作条件和频率的范围。内部产生的输出时钟信号与非锁相环振荡器设计，是兼容的LVCMOS/LVTTL逻辑电平的设备,可在磁带和卷轴上，是包含在一个7.0 x 5.0mm表面贴装陶瓷封装。

FN4000153	Diodes晶振	SaRonix-eCera™ FN	40MHz	±25ppm	-20°C ~ 70°C
FN4000157	Diodes晶振	SaRonix-eCera™ FN	40MHz	±50ppm	-20°C ~ 70°C
FN4000160	Diodes晶振	SaRonix-eCera™ FN	40MHz	±50ppm	-20°C ~ 70°C
FN4100002	Diodes晶振	SaRonix-eCera™ FN	41MHz	±50ppm	-20°C ~ 70°C
FN4420003	Diodes晶振	SaRonix-eCera™ FN	44.237MHz	±50ppm	-20°C ~ 70°C
FN4600001	Diodes晶振	SaRonix-eCera™ FN	46.08MHz	±25ppm	-20°C ~ 70°C
FN4800066	Diodes晶振	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800070	Diodes晶振	SaRonix-eCera™ FN	48MHz	±50ppm	-40°C ~ 85°C
FN4800071	Diodes晶振	SaRonix-eCera™ FN	48MHz	±25ppm	-20°C ~ 70°C
FN5000110	Diodes晶振	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000113	Diodes晶振	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5200008	Diodes晶振	SaRonix-eCera™ FN	52MHz	±50ppm	-20°C ~ 70°C
FN5330010	Diodes晶振	SaRonix-eCera™ FN	53.333MHz	±50ppm	-20°C ~ 70°C
FN5400023	Diodes晶振	SaRonix-eCera™ FN	54MHz	±50ppm	-40°C ~ 85°C
FN5400024	Diodes晶振	SaRonix-eCera™ FN	54MHz	±50ppm	-20°C ~ 70°C
FN5500010	Diodes晶振	SaRonix-eCera™ FN	55MHz	±50ppm	-20°C ~ 70°C
FN5800001	Diodes晶振	SaRonix-eCera™ FN	58MHz	±50ppm	-20°C ~ 70°C
FN6000033	Diodes晶振	SaRonix-eCera™ FN	60MHz	±50ppm	-40°C ~ 85°C
FN6000035	Diodes晶振	SaRonix-eCera™ FN	60MHz	±25ppm	-20°C ~ 70°C

应用程序

适用于低抖动或紧密稳定的应用:
以太网
光纤通道
SONET / SDH linecards
T1/E1, T3/E3线卡
SAS (Serial Attached SCSI)
服务器和存储平台
