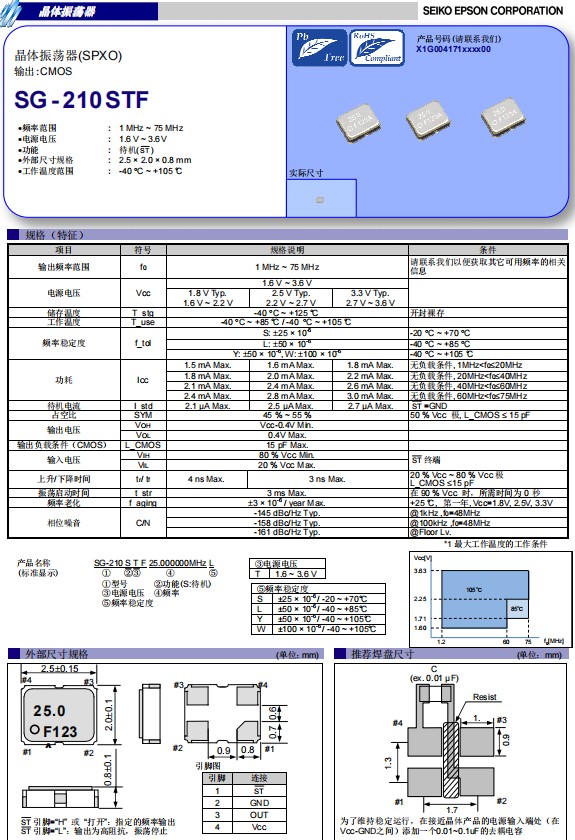

爱普生晶振SG-210STF系列有源晶体(SPXO)是爱普生公司新推出来的具有很强性价比优势的产品，小体积晶振尺寸2.5mmx2.0mmx0.8mm四脚贴片晶振，可选频率范围覆盖1MHz至75MHz范围(基频)，1.6V至3.6V的宽工作电压和宽工作温度范围从-40℃到+105℃，支持COMS输出，进口石英晶体振荡器，该产品具有超小型，轻薄型，低电源电压，低抖动，低功耗，低损耗，低耗能，高精度，高品质，高性能等特点，非常适合用于物联网、可穿戴设备、医疗、工业自动化等各种应用。

进口石英晶体振荡器X1G004171015600非常适合用于物联网应用

晶振料号	型号	频率	尺寸	输出波	电源电压	工作温度
X1G004171000900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001500	SG-210STF	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001600	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001800	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001900	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002500	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002700	SG-210STF	16.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002900	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003100	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003200	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003300	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003500	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004000	SG-210STF	32.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004500	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004600	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004700	SG-210STF	50.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171005900	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171006100	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171006900	SG-210STF	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171007500	SG-210STF	33.333300MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171007700	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171007800	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171007900	SG-210STF	50.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C

进口石英晶体振荡器（以下简称晶振）是利用石英晶体压电效应而制成的器件，它的作用是输出高精度和高稳定度的脉冲信号，为整个电路提供时序基准。我们知道，现在电路中有越来越多的时序电路，它们之间的协同运行必须要有一个时间基准，才能统一一致的行动，就像电视剧里特种行动小队在出发前都要对下表一样，晶振在系统中起的作用就如同队长的手表，它如果稳定性或准确性不好的话，那整个系统就会错误频出，故障率很高。所以又把晶振称为单板的“心脏”。石英晶体振荡器是由品质因数Q极高的石英晶体谐振器和振荡电路组成。晶体的品质因数、切割取向、晶体振子的结构及电路形式等，共同决定振荡器的性能。国际电工委员会（IEC）将石英晶体振荡器分为4类：普通晶体振荡（SPXO），电压控制式晶体振荡（VCXO），温度补偿式晶体振荡（TCXO），恒温控制式晶体振荡（OCXO）。目前发展中的还有数字补偿式晶体振荡（DCXO）以及混合式的VOCXO振荡等。
