汽车动力转向控制器专用晶振SG-9101CA可编程晶振X1G005301001600
随着现在各种精密的电子仪器上开始应用可编程晶振，在不同类型的晶振产品中，可编程晶振一直备受关注，因为其本身具有多种应用优势，

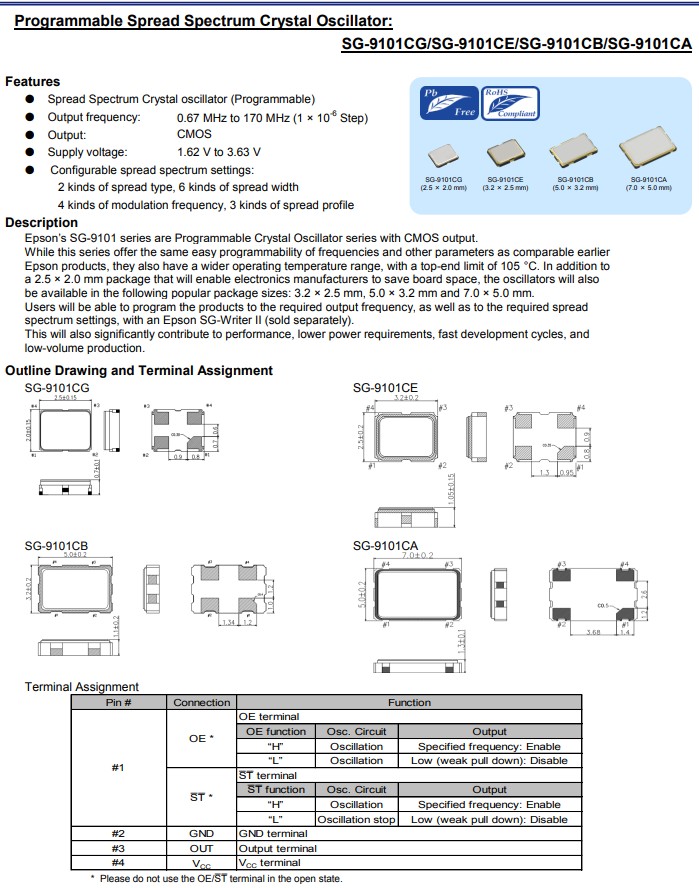

日本进口爱普生晶振SG-9101CA，是一款具有CMOS输出的可编程晶振系列，小体积晶振尺寸7.0x5.0mm，四脚贴片晶振，有源晶体，电源电压:1.62V至3.63V，频率范围:0.67MHz至170MHz，SG-9101系列石英晶体振荡器还提供以下流行的封装超小型晶振尺寸:2.5x2.0mm，3.2x2.5mm和5.0x3.2mm封装使电子制造商能够节省电路板空间。具有小体积轻薄型，低功耗，低抖动，高性能，高品质等特点，应用于钟表、数码产品、汽车电子、手机、对讲机、数码相机、MID平板电脑，光电技术等通讯设备及各种频率控制设备。
汽车动力转向控制器专用晶振SG-9101CA可编程晶振X1G005301001600
                                                  产品编码
|
  频率
|
  型号
|
  尺寸(长宽高)
|
  输出波
|
  电源电压
|
  工作温度
|
| X1G005301001100 | 66.666000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001300 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001400 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001500 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001600 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001700 | 64.100000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001800 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001900 | 82.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002000 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002100 | 30.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002200 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002300 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002400 | 66.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002500 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002600 | 33.333300MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002700 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002800 | 32.768000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002900 | 66.666700MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003000 | 32.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003100 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301003200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003300 | 75.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003400 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003500 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003600 | 13.500000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003700 | 14.745600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003800 | 44.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003900 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004000 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004100 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004200 | 13.560000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004300 | 156.250000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004400 | 66.666600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004500 | 29.491200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004600 | 19.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004700 | 12.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004800 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004900 | 60.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005000 | 2.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005100 | 160.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005200 | 29.461200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
汽车动力转向控制器专用晶振SG-9101CA可编程晶振X1G005301001600
可编程晶振是什么？从字面意思我们不难理解，它是一款可以根据客户的参数要求，包括但不限于频率范围，频率精度，工作温度，电压大小等，将这些参数编入空白芯片，烧录的一款晶振，它还有一个好听的名字：硅晶振。相比传统石英晶振的4周乃至更长交期，可编程晶振最大的优势即是快速交付了。
可编程晶体振荡器能适应各种客户的独特需求.由于其制造工艺处于世界顶尖水平,价格也是相对于其他平牌要高.被广泛的应用于各类计量仪表,医疗电子设备,汽车电子和各类高端消费类电子产品.
