FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
亚陶晶振FKQ系列1.8V晶体时钟振荡器可在广泛的工作条件和频率范围内实现出色的抖动和稳定性，小体积尺寸3.2x2.5mm、汽车级CMOS输出晶振晶体振荡器，使用非PLL振荡器设计在内部生成的输出时钟信号与LVCMOS/LVTTL 逻辑电平兼容。该器件采用卷带包装，采用3.2x2.5mm表面贴装陶瓷封装，FKQ系列是需要低抖动和低功耗的汽车应用的理想参考时钟
FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
HX3127001Q
Diodes Incorporated
SaRonix-eCera™ HX
27MHz
±25ppm
-40°C ~ 105°C
HX21480001
Diodes Incorporated
SaRonix-eCera™ HX
48MHz
±50ppm
-40°C ~ 105°C
HX21480001
Diodes Incorporated
SaRonix-eCera™ HX
48MHz
±50ppm
-40°C ~ 105°C
HX21480001
Diodes Incorporated
SaRonix-eCera™ HX
48MHz
±50ppm
-40°C ~ 105°C
NX7031E0125.000000
Diodes Incorporated
SaRonix-eCera™ NX
125MHz
±50ppm
-40°C ~ 85°C
NX7031E0125.000000
Diodes Incorporated
SaRonix-eCera™ NX
125MHz
±50ppm
-40°C ~ 85°C
NX7031E0125.000000
Diodes Incorporated
SaRonix-eCera™ NX
125MHz
±50ppm
-40°C ~ 85°C
HX2127001Q
Diodes Incorporated
SaRonix-eCera™ HX
27MHz
±25ppm
-40°C ~ 105°C
HX2127001Q
Diodes Incorporated
SaRonix-eCera™ HX
27MHz
±25ppm
-40°C ~ 105°C
HX2127001Q
Diodes Incorporated
SaRonix-eCera™ HX
27MHz
±25ppm
-40°C ~ 105°C
SHPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SHPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SHPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SQPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SQPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SQPCIE100
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
100MHz
±50ppm
-40°C ~ 85°C
SN10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
SN10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
SN10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
SQA000001
Diodes Incorporated
SaRonix-eCera™ SQ
100MHz
±50ppm
-40°C ~ 85°C
SQA000001
Diodes Incorporated
SaRonix-eCera™ SQ
100MHz
±50ppm
-40°C ~ 85°C
SQA000001
Diodes Incorporated
SaRonix-eCera™ SQ
100MHz
±50ppm
-40°C ~ 85°C
NX53D3301Z
Diodes Incorporated
SaRonix-eCera™ NX
133.333333MHz
±50ppm
-40°C ~ 85°C
NX53D3301Z
Diodes Incorporated
SaRonix-eCera™ NX
133.333333MHz
±50ppm
-40°C ~ 85°C
NX53D3301Z
Diodes Incorporated
SaRonix-eCera™ NX
133.333333MHz
±50ppm
-40°C ~ 85°C
JT2553P0016.369000
Diodes Incorporated
SaRonix-eCera™ JT
16.369MHz
±500ppb
-40°C ~ 85°C

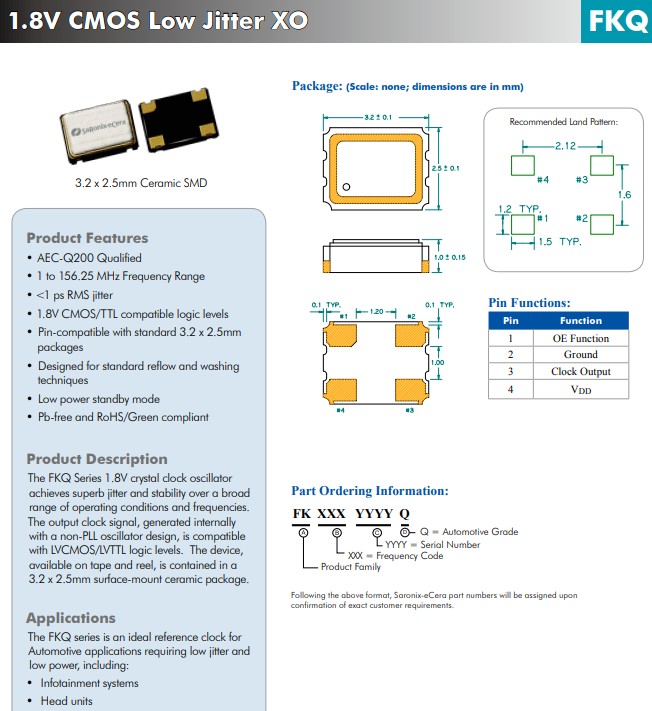

产品特点：
符合AEC-Q200标准
频率范围：1至156.25MHz
<1 ps RMS抖动
1.8V CMOS/TTL 兼容逻辑电平
与标准3.2x2.5mm封装引脚兼容
专为标准回流和清洗技术而设计
低功耗待机模式
无铅且符合RoHS/Green 标准
应用：FKQ 系列是需要低抖动和低功耗的汽车应用的理想参考时钟，包括信息娱乐系统，主机
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |

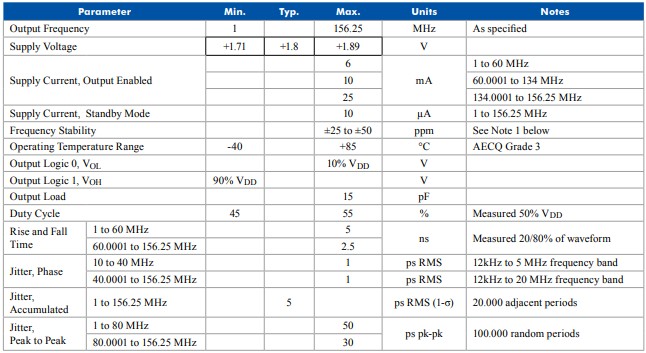

Product Parameters
| Subfamily | General XO |
|---|---|
| Product Series | FKQ |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 1 to 135 |
| Jitter RMS (ps) | <1 |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 3.2 x 2.5 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 1.8 |
| Pads | 4 |
FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
产品参数：
类别 XO将军产品系列 FKQ
合规性（仅汽车支持PPAP）汽车
频率范围 1MHz到135MHz
抖动均方根 (ps) <1
稳定性 20PPM到50PPM
包装尺寸3.2x2.5mm有源晶振
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 1.8V
垫 4脚
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0148.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 148.5MHz | ±25ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX3221E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| SNSAS2150 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 150MHz | ±50ppm | -20°C ~ 70°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| PDF620008Z | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm | -40°C ~ 85°C |
我们的汽车兼容晶体振荡器(XO)旨在满足汽车应用的严格要求，并在其部件号中以“Q”区分。它们是在经过严格IATF 16949标准认证的设施中制造的，并且能够根据VDA6.3进行客户审核。这些零件均受PPAP（生产零件批准流程）文档支持，从而满足汽车电子行业的所有要求。
此外，所有符合汽车标准的轻薄型晶体振荡器(XO)均已使用AECQ-200和QAP-81进行了认证，以涵盖石英谐振器和XO IC，而不是使用AEC-Q100（仅针对IC定义）。我们计划在2021年开始为我们新的符合汽车标准的XO产品逐步采用AECQ-104认证标准，但它不会将之前符合AECQ-200 + QAP-81的产品重新认证为AEC-Q104（AECQ-200+QAP-81资格标准和AECQ-0104资格标准是测试数量和添加X射线检查）。
FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
FKQ系列1.8V晶体时钟振荡器具有出色的抖动和稳定性,FK1220016Z,ECERA有源晶振
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX72F6214Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
FKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、汽车级CMOS晶体振荡器
FKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、汽车级CMOS差分晶体振荡器
FKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、汽车级CMOS晶体振荡器
FNQ 1.8V 20~50 7.0x5.0 CMOS 1.8 4 1.8V、7.0x5.0mm、汽车级CMOS晶体振荡器
FNQ 2.5V 20~50 7.0x5.0 CMOS 2.5 4 2.5V、7.0x5.0mm、汽车级CMOS晶体振荡器
FNQ 3.3V 20~50 7.0x5.0 CMOS 3.3 4 3.3V、7.0x5.0mm、汽车级CMOS晶体振荡器
