KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器

返回列表 来源：康华尔 查看手机网址
扫一扫!KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器扫一扫!
 浏览：- 发布日期：2022-07-11 09:20:59【大 中 小】
分享到：

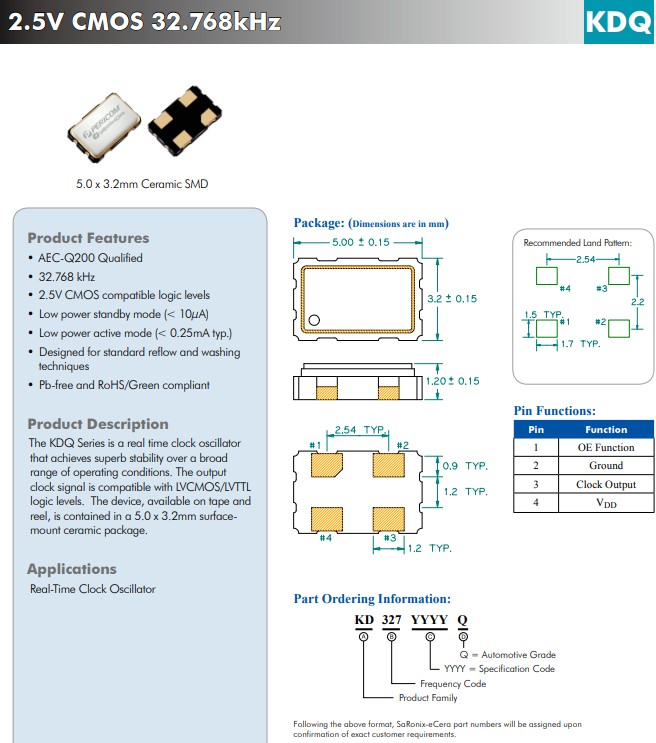

百利通亚陶晶振KDQ系列2.5V是一种实时时钟振荡器的工作条件下实现卓越的稳定性输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。小体积尺寸5.0x3.2mm、频率：32.768kHz、汽车级CMOS轻薄型晶体振荡器，该器件采用5.0x3.2mm表面贴装陶瓷封装。

产品特点：
符合AEC-Q200标准
频率：32.768kHz
2.5V CMOS兼容逻辑电平
低功耗待机模式（< 10μA）
低功耗主动模式（< 0.25mA 典型值）
专为标准回流和清洗技术而设计
无铅且符合RoHS/Green标准
应用：实时时钟振荡器

KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器

FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C

2

1

FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C

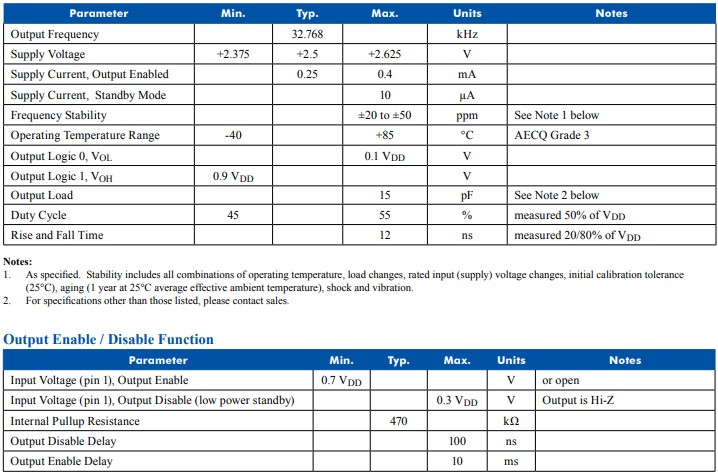

Product Parameters

Subfamily 32kHz XO
Product Series KDQ
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 32.768KHZ
Jitter RMS (ps) <1 ps RMS
Stability (PPM) 20 to 50
Package Size (mm) 5.0 x 3.2
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 2.5
Pads 4

KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器

产品参数：

类别 32khz XO
产品系列 KDQ
合规性（仅汽车支持PPAP）汽车
频率范围 (MHz) 32.768KHZ
抖动均方根 (ps) <1 ps RMS
稳定性  20PPM到50PPM
包装尺寸 5.0x3.2mm
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 (V) 2.5V
垫 4脚
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C

我们广泛的符合汽车标准的PCIe时钟发生器和缓冲器产品组合提供各种选项来满足您的设计需求。我们符合汽车标准的单端时钟缓冲器产品组合包括具有多达4个输出的LVCMOS和LVTTL缓冲器，它们的低附加抖动提供了您选择XO或时钟发生器所需的扇出。符合汽车标准的RTC系列提供了一种简单而紧凑的解决方案，可保存时间和日历数据。

我们提供一流的晶体(Xtal)和晶体振荡器(XO)，针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供：
输出频率范围从kHz到GHz
完整的输出组合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
具有标准、超低抖动和高温XO的完整XO产品组合
从1.0V到3.3V的多个电压范围
大量SMT封装选项组合，可满足您的封装要求

KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器

FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C
FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
FN3300073 Diodes Incorporated SaRonix-eCera™ FN 33MHz ±50ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm -40°C ~ 85°C

KDQ系列2.5V采用5032mm表面贴装陶瓷封装,KD3270037,32.768KHz晶振,晶体振荡器

KDQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、5.0x3.2mm、32.768kHz、汽车级CMOS晶体振荡器
KDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、32.768kHz、汽车级CMOS输出晶振
KDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、32.768kHz、汽车级CMOS晶体振荡器
KKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、32.768kHz、汽车级CMOS晶体振荡器
KKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、32.768kHz、汽车级CMOS晶体振荡器
KKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、32.768kHz、汽车级CMOS晶体振荡器
