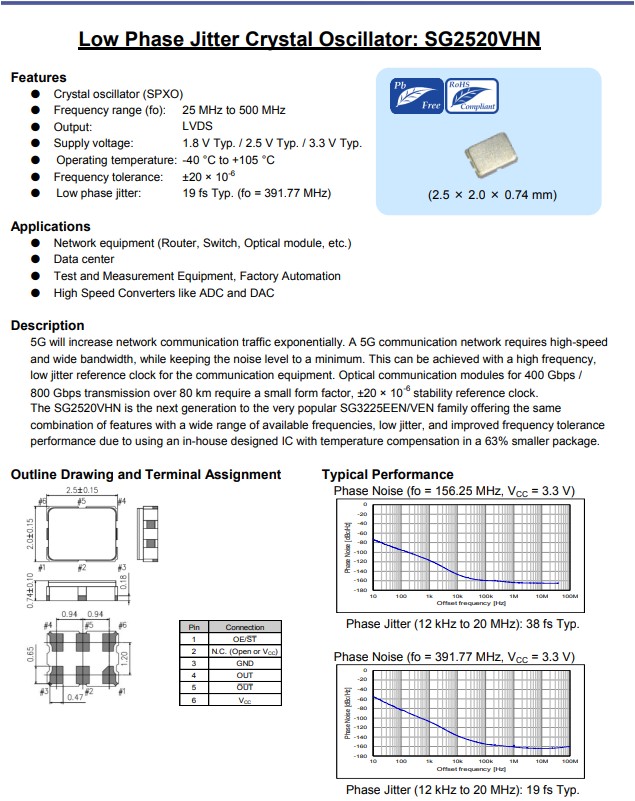

爱普生晶振SG2520VHN是一款LVDS输出差分晶体振荡器，工作温度范围-40℃至+105℃，具有广泛的可用频率，低功耗，低抖动，低相位噪声和频率容差性能，因为它采用了内部设计的温度补偿IC，小体积尺寸2.5x2.0mm六脚贴片晶振，电源电压1.8V至3.3V，频率范围:25MHz至500MHz，任意一频点具有低电源电压，满足产品低消耗电流特点，应用于网络设备(路由器，交换机，光模块) ，数据中心，测试和测量设备，工厂自动化，ADC和DAC等高速转换器等。

SG2520VHN差分晶体振荡器X1G005941000515适用于光模块晶振

产品编码	型号	频率	有源晶振	输出波	电源电压	工作温度
X1G005941000115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000215	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000315	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 105°C
X1G005941000415	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000515	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005941000615	SG2520VHN	155.520000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000715	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000815	SG2520VHN	174.703000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000915	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005941001015	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941001115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C

产品编码	型号	频率	尺寸	输出波	电源电压	工作温度
X1G005901000200	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005901000300	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005901000400	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005901000600	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005901000700	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 105°C
X1G005901000800	SG2520VGN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 105°C

LVDS（Low Voltage Differential Signaling)它是一种低摆幅的差分信号技术，它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输，其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS（Low Voltage Differential Signaling）是一种小振幅差分信号技术，LVDS信号传输一般由三部分组成：差分信号发送器，差分信号互联器，差分信号接收器。

LVDS差分输出晶振我们可以称为是一种低电压差分信号，主要就是一种低功耗、低误码率、低串扰和低辐射的差分信号技术。其中LVDS的核心技术主要是采用了一种非常低的电压摆幅高速差来传输数据，实现点对点或者点对多的连接，传输的介质一般是pcb连线或者平衡电缆。
