医疗设备专用晶振TG5032CFN编码X1G005391001100

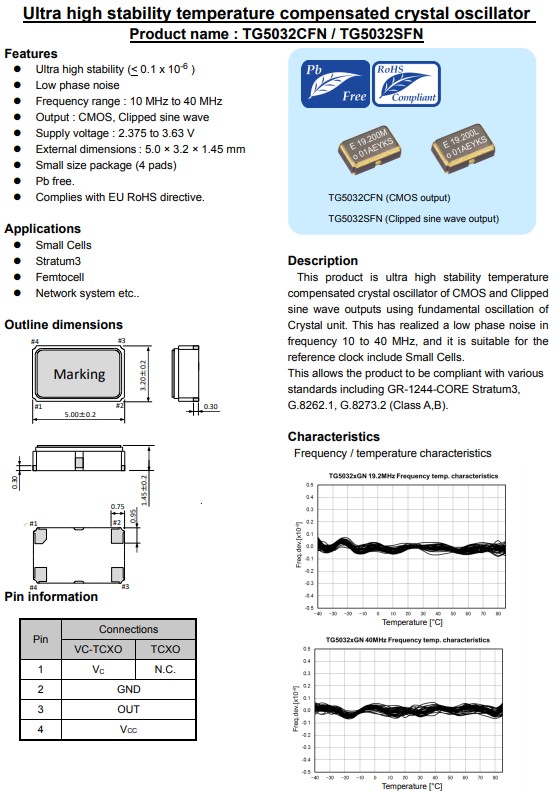

日本进口爱普生晶振TG5032CFN，小体积晶振尺寸5.0x3.2mm有源晶振，编码X1G005391001100，四脚贴片晶振，支持CMOS输出电平，具有超高稳定性温补晶体振荡器，电源电压:2.375V至3.63V，频率范围10MHz至40MHz，具有超小型，轻薄型，低电源电压，低抖动，低功耗，低损耗，低耗能等特点，使用基波振荡的正弦波输出水晶单位，这实现了低相位噪声。无铅，符合欧盟RoHS指令，适用于医疗设备，汽车电子，移动通讯，GPS，无线蓝牙等参考时钟包括小单元。这使得该产品符合各种标准包括GR-1244-CORE Stratum3、
G.8262.1，G.8273.2(甲、乙类)。
医疗设备专用晶振TG5032CFN编码X1G005391001100
| 有源晶体 |
  型号
|
  频率
|
  尺寸
|
  输出波
|
  电源电压
|
  精度
|
| X1G005391000600 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391000700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391000800 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391000900 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001000 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001100 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001500 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001600 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001700 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001800 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391001900 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002000 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002100 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002300 | TG5032CFN | 24.576000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002500 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002600 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391002700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003000 | TG5032CFN | 19.440000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003100 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003300 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003400 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003500 | TG5032CFN | 25.600000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003600 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
| X1G005391003700 | TG5032CFN | 15.360000MHz | 5.00x3.20x1.50mm | CMOS | 3.135 to 3.465V | +/-1.0ppm |
温补晶振即温度补偿晶体振荡器（TCXO），本身具有温度补偿作用，是通过附加的温度补偿电路使由周围温度变化产生的振荡频率变化量削减的一种进口石英晶体振荡器，高低温度稳定性:频率精度0.5PPM~2.0PPM,常用频率:26M,33.6M,38.4M,40M.因产品性能稳定,精度高等优势,被广泛应用到一些比较高端的数码通讯产品领域,GPS全球定位系统,智能手机,WiMAX和无线通信等产品,符合RoHS/无铅.
