有源晶振X1G005351002300用于以太网交换机专用晶振
石英晶振作为电子产品不可或缺的一部分，应用领域非常广泛，特别是在通信产品使用上，以太网的出现无疑是对高品质石英晶振应用市场起到了扩大的作用，然而在以太网交换机中或是各模块上使用石英晶振的性能需求都比较高，大多都为有源晶振系列产品。

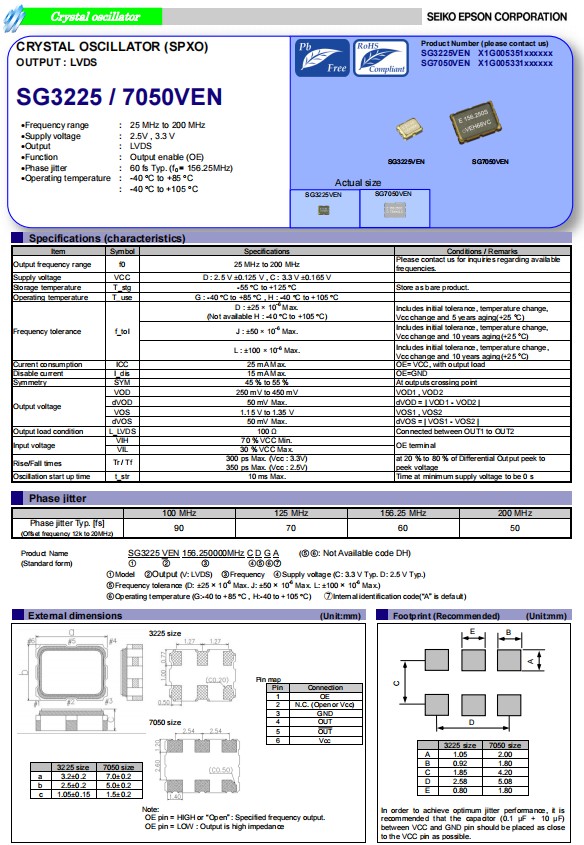

爱普生晶振SG3225VEN是一款LVDS输出差分晶体振荡器，小体积尺寸3.2x2.5mm，有源晶振，六脚贴片晶振，电源电压2.5V,3.3V，宽频率范围25MHz至200MHz，工作温度-40℃至+85℃（+105℃），该产品具有超小型，轻薄型，低电源电压，低抖动，低功耗，低损耗，低耗能，低相位噪声，高精度，耐高温等特点，能够轻易识别网络信号以及精确的处理双极信号。适用于5G通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、光纤通信，以太网及各种频率控制设备上。
有源晶振X1G005351002300用于以太网交换机专用晶振
| 有源晶体 |
 型号
|
 频率
|
 尺寸
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G005521000100 | SG3225VEN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000200 | SG3225VEN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000500 | SG3225VEN | 322.265600MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521000900 | SG3225VEN | 333.330000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521001100 | SG3225VEN | 245.760000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005521100700 | SG3225VEN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351000100 |
  SG3225VEN
|
  72.000000MHz
|
  3.20x2.50x1.20mm
|
  LVDS
|
  2.375 to 2.625V
|
  -40 to 85°C
|
| X1G005351000200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351000300 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351000700 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351000800 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001100 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351001900 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351002000 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002100 | SG3225VEN | 148.351640MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351002300 | SG3225VEN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005351006500 | SG3225VEN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351006900 | SG3225VEN | 161.132812MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007100 | SG3225VEN | 60.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007200 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007300 | SG3225VEN | 148.351648MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007600 | SG3225VEN | 26.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007700 | SG3225VEN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007800 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351007900 | SG3225VEN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005351100200 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100400 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100600 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100700 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351100800 | SG3225VEN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351100900 | SG3225VEN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101000 | SG3225VEN | 25.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101100 | SG3225VEN | 72.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101200 | SG3225VEN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005351101300 | SG3225VEN | 133.333000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101400 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005351101500 | SG3225VEN | 50.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
以太网是全球使用最广泛的局域网技术，而已经被淘汰的拨号上网（ADSL）、十年前左右的宽度上网/猫（PPPOE）、现在的光纤上网/光猫（EPON/GPON）、以及平时所说的交换机（以太网交换机），都属于广域网技术。由于以太网的强大，无线wifi技术也借鉴了以太网的思想，比如wifi中的mac地址，就是来自于以太网；还有wifi跟局域网一样，也是广播类型的网络。所以，无线中也有以太网的身影。
以太网常用的晶振有：具有高精度、小体积、低功耗，极高的性能，1612mm，2016mm，2520mm，3225mm，5032mm，7050mm封装尺寸，-40至+85℃，-40至+125℃超高温度范围，SG3225VEN有源晶振具有高精度，小体积，性能稳定的特点，3225常用封装，-40至+85℃工业级温度范围，能够为以太网提供高效、稳定的性能要求。
