BQCSB-33MF-DBDFT,6035mm,33MHz,BQCSB,Bliley石英晶振

频率：33.000MHz

尺寸：6.0x3.5x1.2mm

BQCSB-33MF-DBDFT,6035mm,33MHz,BQCSB,Bliley石英晶振，美国进口晶振，Bliley百利晶振，型号：BQCSB系列晶振，编码为：BQCSB-33MF-DBDFT，频率为：33.000MHz，频率稳定性：±20ppm，工作温度范围：-20℃至+70℃，精度：±20ppm，负载：18pF，小体积晶振尺寸：6.0x3.5x1.2mm，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，6035晶振，石英晶振。具有超小型，轻薄型，高可靠性，高稳定性，高品质，高质量等特点。被广泛应用于：通讯设备晶振，无线蓝牙晶振，物联网晶振，车载晶振，医疗设备晶振，智能家居晶振，数码电子晶振等应用。

订购热线：0755-27838351

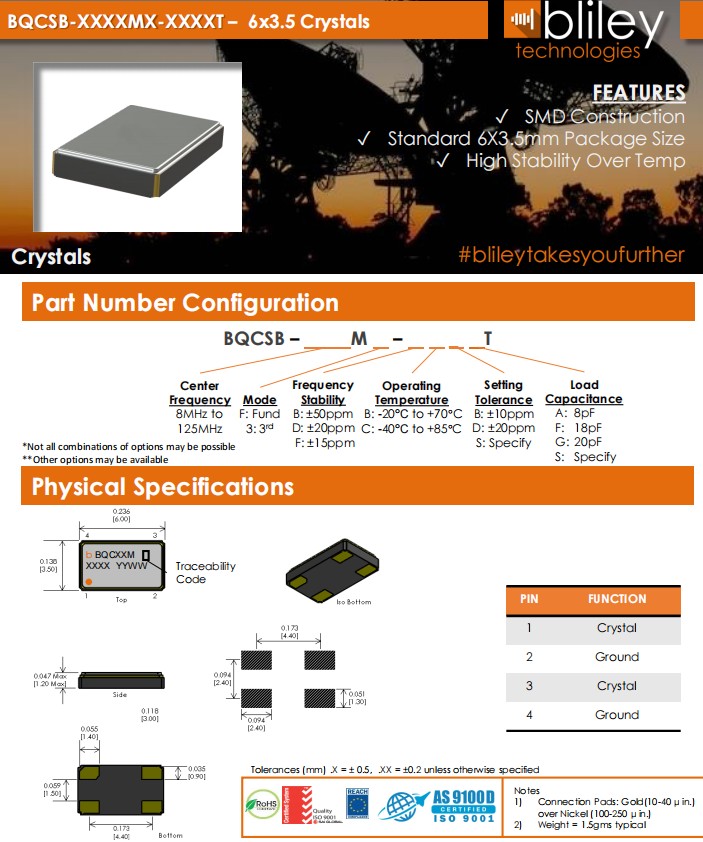

BQCSB-33MF-DBDFT,6035mm,33MHz,BQCSB,Bliley石英晶振，产品特点：

外形尺寸：6.0x3.5x1.2mm

频率范围：8MHz~125MHz

SMD建设 6035石英晶振

高稳定性的温度

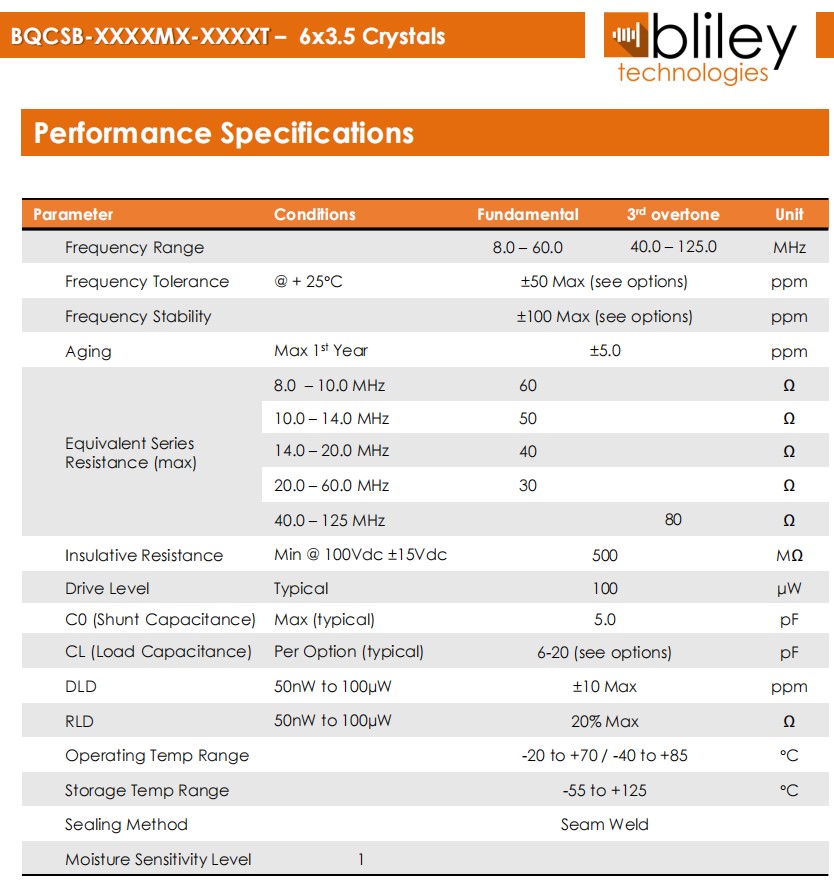

BQCSB-33MF-DBDFT,6035mm,33MHz,BQCSB,Bliley石英晶振,参数表

Parameter	Conditions	Fundamental	3rd overtone	Unit
Frequency Range		33.0	40.0 – 125.0	MHz
Frequency Tolerance	@ + 25℃	±50 Max (see options)		ppm
Frequency Stability		±100 Max (see options)		ppm
Aging	Max 1st Year	±5.0		ppm
Equivalent Series Resistance (max)	8.0 – 10.0 MHz	60		Ω
	10.0 – 14.0 MHz	50		Ω
	14.0 – 20.0 MHz	40		Ω
	20.0 – 60.0 MHz	30		Ω
	40.0 – 125.0 MHz		80	Ω
Insulative Resistance	Min @ 100Vdc ±15Vdc	500		MΩ
Drive Level	Typical	100		μW
C0 (Shunt Capacitance)	Max (typical)	5		pF
CL (Load Capacitance)	Per Option (typical)	6-20 (see options)		pF
DLD	50nW to 100µW	±10 Max		ppm
RLD	50nW to 100µW	20% Max		Ω
Operating Temp Range		-20 to +70 / -40 to +85		℃
Storage Temp Range		-55 to +125		℃
Sealing Method		Seam Weld
Moisture Sensitivity Level	1
