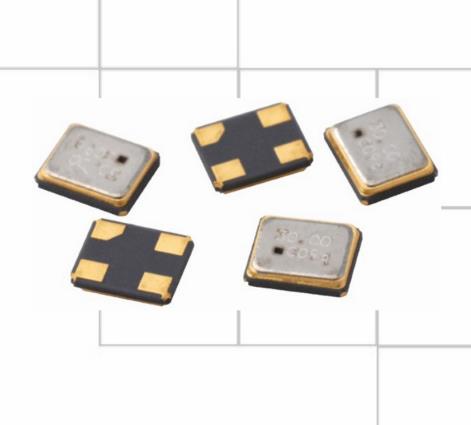

3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片
频率：36MHZ
尺寸：3.2*2.5mm
3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片,尺寸为3225mm,频率为36MHZ,西迪斯无源晶振，CTS晶振,美国进口晶振,无源晶振,SMD晶振,石英晶体谐振器，无源贴片晶振，小体积晶振，高品质晶振，无线通信晶振，电脑外围设备晶振，测试测量专用晶振，M2M通信晶振，微控制器晶振，USB接口晶振，物联网和工业物联网应用，403C11A27M00000通信晶振，403C11A24M57600高质量晶振。
石英晶体谐振器产品主要应用范围：物联网和工业物联网应用，无线通信，FPGA /微控制器，USB接口，电脑外围设备，便携式设备，测试与测量，M2M通信，宽带接入等领域。3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片.
订购热线：0755-27838351
3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片,尺寸为3225mm,频率为36MHZ,西迪斯无源晶振，CTS晶振,美国进口晶振,无源晶振,SMD晶振,石英晶体谐振器，无源贴片晶振，小体积晶振，高品质晶振，无线通信晶振，电脑外围设备晶振，测试测量专用晶振，M2M通信晶振，微控制器晶振，USB接口晶振，物联网和工业物联网应用，403C11A27M00000通信晶振，403C11A24M57600高质量晶振。
石英晶体谐振器产品主要应用范围：物联网和工业物联网应用，无线通信，FPGA /微控制器，USB接口，电脑外围设备，便携式设备，测试与测量，M2M通信，宽带接入等领域。3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片.
3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片 参数表
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||||||||||||||||
| O perating Temperature | TA | - |
-20 -30 -40 -40 |
+25 |
+70 +85 +85 +105 |
°C | |||||||||||||||||||||||||||||
| Storage Temperature | TSTG | - | -55 | - | +125 | °C | |||||||||||||||||||||||||||||
| Frequency Stability | |||||||||||||||||||||||||||||||||||
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||||||||||||||||
| Frequency Range |
 O
|
Fundamental Mode | 8 - 80 | MHz | |||||||||||||||||||||||||||||||
| Frequency Tolerance | Δf/fO | @ +25°C | 10, 15, 20, 25 or 30 | ±ppm | |||||||||||||||||||||||||||||||
| Frequency Stability Δf/f25 Referenced to +25°C reading 10, 15, 20, 25, 30 or 50 ±ppm | |||||||||||||||||||||||||||||||||||
| Aging | Δf/f0 Typical per year @ +25°C -3 - 3 ppm | ||||||||||||||||||||||||||||||||||
| Crystal Parameters | |||||||||||||||||||||||||||||||||||
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||||||||||||||||
| Operating Mode | - | - | Fundamental | - | |||||||||||||||||||||||||||||||
| Crystal Cut | - | - | AT-Cut Strip | - | |||||||||||||||||||||||||||||||
| Load Capacitance | CL | - | See Ordering Information | pF | |||||||||||||||||||||||||||||||
| Shunt Capacitance | C0 | - | - - 3 .0 | pF | |||||||||||||||||||||||||||||||
| Series Resistance |
8MHz - <10MHz 10MHz - <11MHz 11MHz - <12MHz 12MHz - <13MHz 13MHz - <16MHz 16MHz - <21MHz 21MHz - <30MHz 30MHz - 80MHz |
- - 400 - - 200 - - 120 - - 100 - - 80 - - 60 - - 50 - - 40 |
Ω | ||||||||||||||||||||||||||||||||
| Fundamental | R1 | ||||||||||||||||||||||||||||||||||
| Drive Level | DL | - | - 10 300 | µW | |||||||||||||||||||||||||||||||
| Insu latio n Resistance | Ri | +100Vdc ±15Vdc | 500 - - | MΩ | |||||||||||||||||||||||||||||||
|
Δf/f0 - Frequency deviation referenced to nominal frequency. Δf/f25 - Frequency deviation over operating temperature range, |
referenced to +25°C frequency. | ||||||||||||||||||||||||||||||||||

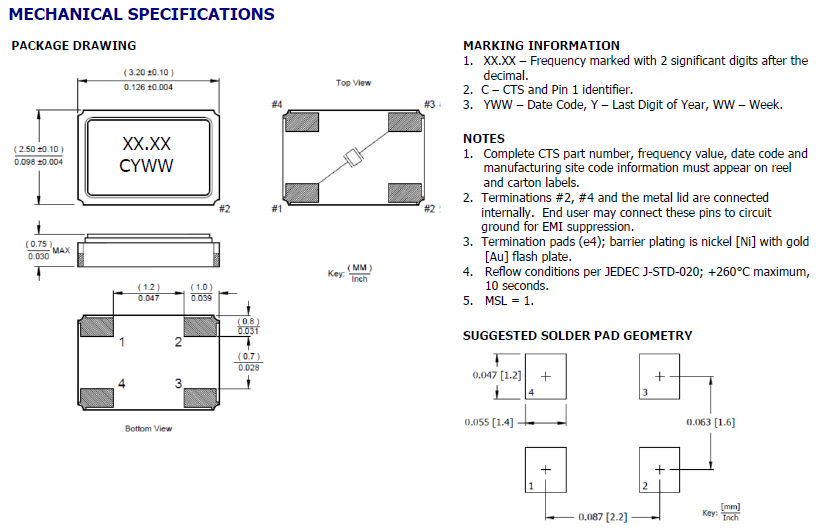

3225mm,403C11A36M00000,36MHZ,工业物联网,无源贴片 尺寸图
403C11A36M00000晶振 特点
CTS型号403包含一个高Q石英谐振器，非常适合支持广泛的商业和工业应用。
密封陶瓷表面贴装封装
基本晶体设计
频率范围8- 80MHz
频率公差，±30ppm标准
频率稳定性，±30ppm标准
工作温度范围-40℃~ +105℃
磁带和卷轴包装，EIA-481
更多相关美国CTS晶振型号
| 原厂编码 | 厂家 | 型号 | 系列 | 频率 |
| 403C11A32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403C35D25M00000 | CTS晶振 | 403 | MHz Crystal | 25MHz |
| 403C35D12M00000 | CTS晶振 | 403 | MHz Crystal | 12MHz |
| 403C35D24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403C35E13M00000 | CTS晶振 | 403 | MHz Crystal | 13MHz |
| 403C35E27M00000 |
CTS晶振 |
403 | MHz Crystal | 27MHz |
| 403C11A16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C11A24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403C11A16M80000 | CTS晶振 | 403 | MHz Crystal | 16.8MHz |
| 403C35D22M11840 | CTS晶振 | 403 | MHz Crystal | 22.1184MHz |
| 403C35D28M37500 | CTS晶振 | 403 | MHz Crystal | 28.375MHz |
| 403C35D28M63636 | CTS晶振 | 403 | MHz Crystal | 28.63636MHz |
| 403C35E12M00000 |
CTS晶振 |
403 | MHz Crystal | 12MHz |
| 403C23E26M69000 | CTS晶振 | 403 | MHz Crystal | 26.69MHz |
| 403C35E16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C11A12M00000 | CTS晶振 | 403 | MHz Crystal | 12MHz |
| 403I35D12M00000 | CTS晶振 | 403 | MHz Crystal | 12MHz |
| 403I35D16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403I35D24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403I35D30M00000 |
CTS晶振 |
403 | MHz Crystal | 30MHz |
| 403I35E16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403I35E26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403C11E32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403C35D27M00000 | CTS晶振 | 403 | MHz Crystal | 27MHz |
| 403C35E26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403C35D48M00000 | CTS晶振 | 403 | MHz Crystal | 48MHz |
| 403C35D20M00000 | CTS晶振 | 403 | MHz Crystal | 20MHz |
| 403C11E16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C11A40M00000 | CTS晶振 | 403 | MHz Crystal | 40MHz |
| 403C35D30M00000 | CTS晶振 | 403 | MHz Crystal | 30MHz |
| 403C11A20M00000 | CTS晶振 | 403 | MHz Crystal | 20MHz |
| 403I35D27M00000 | CTS晶振 | 403 | MHz Crystal | 27MHz |
| 403I35D18M43200 | CTS晶振 | 403 | MHz Crystal | 18.432MHz |
| 403I35D20M00000 | CTS晶振 | 403 | MHz Crystal | 20MHz |
| 403I35E20M00000 | CTS晶振 | 403 | MHz Crystal | 20MHz |
| 403C11A13M00000 | CTS晶振 | 403 | MHz Crystal | 13MHz |
| 403C35D16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C11A26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403C11A14M74560 | CTS晶振 | 403 | MHz Crystal | 14.7456MHz |
| 403I35D26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403I35D25M00000 | CTS晶振 | 403 | MHz Crystal | 25MHz |
| 403C35D40M00000 | CTS晶振 | 403 | MHz Crystal | 40MHz |
| 403C11A14M40000 | CTS晶振 | 403 | MHz Crystal | 14.4MHz |
| 403C11A16M38400 | CTS晶振 | 403 | MHz Crystal | 16.384MHz |
| 403C11A19M20000 | CTS晶振 | 403 | MHz Crystal | 19.2MHz |
| 403C11A19M68000 | CTS晶振 | 403 | MHz Crystal | 19.68MHz |
| 403C11A24M55350 | CTS晶振 | 403 | MHz Crystal | 24.5535MHz |
| 403C11A24M57600 | CTS晶振 | 403 | MHz Crystal | 24.576MHz |
| 403C11A27M00000 | CTS晶振 | 403 | MHz Crystal | 27MHz |
| 403C11A30M00000 | CTS晶振 | 403 | MHz Crystal | 30MHz |
| 403C11A36M00000 | CTS晶振 | 403 | MHz Crystal | 36MHz |
| 403C11B24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403C11B26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403C11B32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403C11J12M00000 | CTS晶振 | 403 | MHz Crystal | 12MHz |
| 403C11J13M00000 | CTS晶振 | 403 | MHz Crystal | 13MHz |
| 403C11J14M40000 | CTS晶振 | 403 | MHz Crystal | 14.4MHz |
| 403C11J16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C11J19M68000 | CTS晶振 | 403 | MHz Crystal | 19.68MHz |
| 403C35D13M00000 | CTS晶振 | 403 | MHz Crystal | 13MHz |
| 403C35D14M31818 | CTS晶振 | 403 | MHz Crystal | 14.31818MHz |
| 403C35D16M38400 | CTS晶振 | 403 | MHz Crystal | 16.384MHz |
| 403C35D19M66080 | CTS晶振 | 403 | MHz Crystal | 19.6608MHz |
| 403C35D24M57600 | CTS晶振 | 403 | MHz Crystal | 24.576MHz |
| 403C35D26M00000 | CTS晶振 | 403 | MHz Crystal | 26MHz |
| 403C35D29M49120 | CTS晶振 | 403 | MHz Crystal | 29.4912MHz |
| 403C35D32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403C35D33M00000 | CTS晶振 | 403 | MHz Crystal | 33MHz |
| 403C35D36M00000 | CTS晶振 | 403 | MHz Crystal | 36MHz |
| 403C35D44M00000 | CTS晶振 | 403 | MHz Crystal | 44MHz |
| 403C35E14M31818 | CTS晶振 | 403 | MHz Crystal | 14.31818MHz |
| 403C35E16M38400 | CTS晶振 | 403 | MHz Crystal | 16.384MHz |
| 403C35E18M43200 | CTS晶振 | 403 | MHz Crystal | 18.432MHz |
| 403C35E19M66080 | CTS晶振 | 403 | MHz Crystal | 19.6608MHz |
| 403C35E28M37500 | CTS无源贴片晶振 | 403 | MHz Crystal | 28.375MHz |
| 403C35E29M49120 | CTS晶振 | 403 | MHz Crystal | 29.4912MHz |
| 403C35E33M00000 | CTS晶振 | 403 | MHz Crystal | 33MHz |
| 403C35E36M00000 | CTS晶振 | 403 | MHz Crystal | 36MHz |
| 403C35E40M00000 | CTS晶振 | 403 | MHz Crystal | 40MHz |
| 403C35S30M00000 | CTS晶振 | 403 | MHz Crystal | 30MHz |
| 403C35S32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403C11J24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403C33L25M00000 | CTS晶振 | 403 | MHz Crystal | 25MHz |
| 403C35A12M00000 | CTS晶振 | 403 | MHz Crystal | 12MHz |
| 403C35A16M00000 | CTS晶振 | 403 | MHz Crystal | 16MHz |
| 403C35E20M00000 | CTS晶振 | 403 | MHz Crystal | 20MHz |
| 403C35E24M00000 | CTS晶振 | 403 | MHz Crystal | 24MHz |
| 403C35E24M57600 | CTS晶振 | 403 | MHz Crystal | 24.576MHz |
| 403C35E25M00000 | CTS晶振 | 403 | MHz Crystal | 25MHz |
| 403C35E28M63636 | CTS晶振 | 403 | MHz Crystal | 28.63636MHz |
| 403C35E30M00000 | CTS晶振 | 403 | MHz Crystal | 30MHz |
| 403C35E44M00000 | CTS晶振 | 403 | MHz Crystal | 44MHz |
| 403C35E48M00000 | CTS晶振 | 403 | MHz Crystal | 48MHz |
| 403C35L25M00000 | CTS晶振 | 403 | MHz Crystal | 25MHz |
| 403CXXK32M00000 | CTS晶振 | 403 | MHz Crystal | 32MHz |
| 403I35D13M00000 | CTS晶振 | 403 | MHz Crystal | 13MHz |
| 403I35D14M31818 | CTS晶振 | 403 | MHz Crystal | 14.31818MHz |
| 403I35D16M38400 | CTS晶振 | 403 | MHz Crystal | 16.384MHz |
| 403I35D19M66080 | CTS晶振 | 403 | MHz Crystal | 19.6608MHz |
| 403I35D22M11840 | CTS晶振 | 403 | MHz Crystal | 22.1184MHz |
| 403I35D24M57600 | CTS晶振 | 403 | MHz Crystal | 24.576MHz |
| 403I35D28M37500 | CTS晶振 | 403 | MHz Crystal | 28.375MHz |
| 403I35D28M63636 | CTS晶振 | 403 | MHz Crystal | 28.63636MHz |
| 403I35D29M49120 | CTS晶振 | 403 | MHz Crystal | 29.4912MHz |
