CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振

频率：16.9344MHz

尺寸：13.2 x 13.2 x 5.6mm

CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振，美国进口晶振，Cardinal卡迪纳尔晶振，石英晶振型号为：CPPFXX4系列，编码为：CPPFXX4-A5BP-16.9344MHzNP，频率为：16.9344MHz，尺寸为：13.2 x 13.2 x 5.6mm金属密封件封装，插件晶振，有源晶振，石英晶体振荡器，无铅环保晶振，可编程晶振，现场可编程-3G200振荡器编程仪器在几秒内。可编程两次（单频）或一次作为双频CMOS输出（将与TTL设备接口）3.3V或5.0V标称电源电压大小：仅针对单频程序的半DIP启用/禁用功能（可选备用功能），应用于：驱动A/D，D/As，FPGAs数字视频以太网，GbE医疗存储区域网络COTS宽带接入超声波/SDH/DWDM测试和测量。

订购热线：0755-27838351

CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振，美国进口晶振，Cardinal卡迪纳尔晶振，石英晶振型号为：CPPFXX4系列，编码为：CPPFXX4-A5BP-16.9344MHzNP，频率为：16.9344MHz，尺寸为：13.2 x 13.2 x 5.6mm金属密封件封装，插件晶振，有源晶振，石英晶体振荡器，无铅环保晶振，正方型钟振，可编程晶振，现场可编程-3G200振荡器编程仪器在几秒内。可编程两次（单频）或一次作为双频CMOS输出（将与TTL设备接口）3.3V或5.0V标称电源电压大小：仅针对单频程序的半DIP启用/禁用功能（可选备用功能），应用于：驱动A/D，D/As，FPGAs，数字视频，以太网，GbE医疗，存储区域网络COTS宽带接入，超声波/SDH/DWDM，测试和测量。

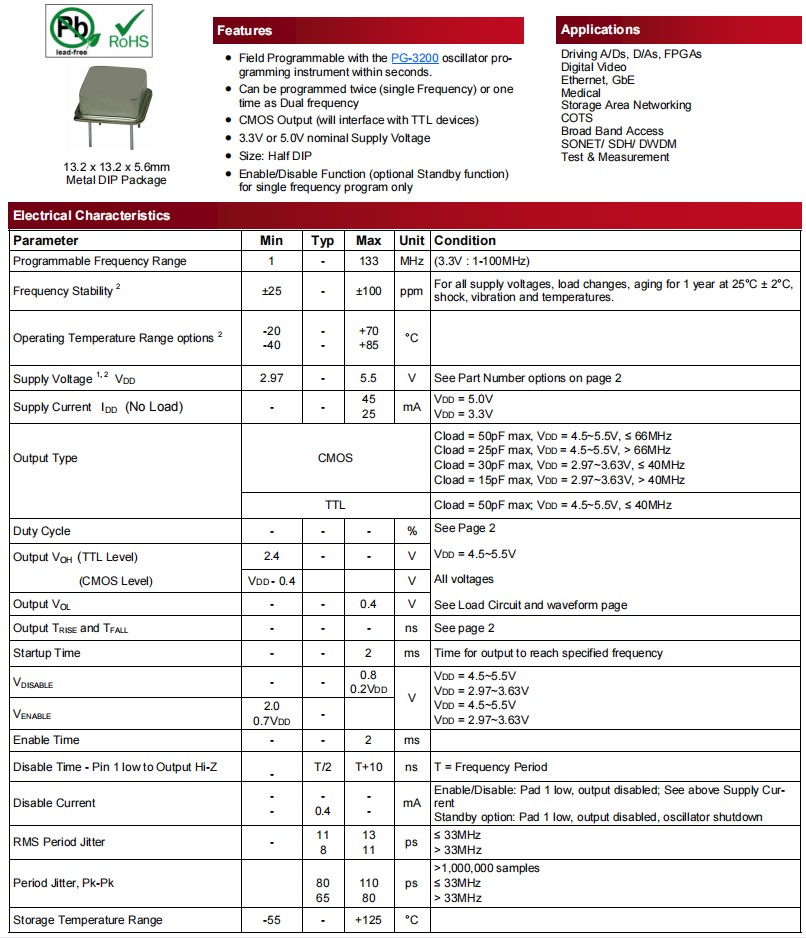

CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振 ，参数表

Electrical Characteristics CPPFXX4参数说明
Parameter			Min	Typ	Max	Unit	Condition
Programmable Frequency Range			1	-	133	MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			-20	-	70
Operating Temperature Range options		2	-40	-	85	°C
Supply Voltage 1, 2 VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD (No Load)			-	-	45	mA	VDD = 5.0V
Supply Current IDD (No Load)			-	-	25	mA	VDD = 3.3V
							Cload = 50pF max, VDD = 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD = 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD = 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD = 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH (TTL Level)			2.4	-	-	V	VDD = 4.5~5.5V
(CMOS Level)			VDD - 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISE and TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD = 4.5~5.5V
						V	VDD = 2.97~3.63V
							VDD = 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD = 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	11	13	ps	≤ 33MHz
RMS Period Jitter			-	8	11	ps	> 33MHz
Period Jitter, Pk-Pk				80	110	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

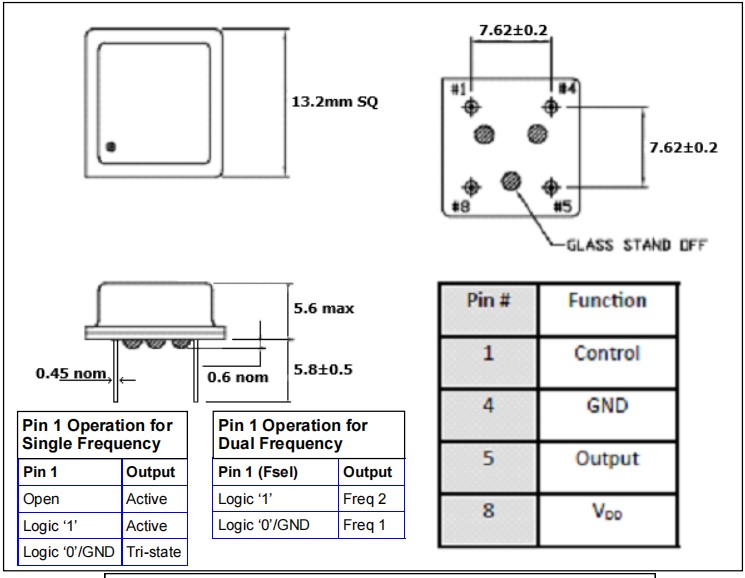

CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振 尺寸图

CMOS输出振荡器,CPPFXX4-A5BP-16.9344MHzNP,Cardinal有源晶振,6G通讯晶振

特征：
可在几秒钟内用PG-3200振荡器编程仪进行现场编程。
可编程两次（单频）或一次
时间为双频
CMOS输出（将与TTL设备接口）可编程晶振
3.3V或5.0V标称电源电压
尺寸：半DIP
启用/禁用功能（可选待机功能）
仅适用于单频节目

应用于：驱动A/D，D/As，FPGAs数字视频以太网，GbE医疗存储区域网络COTS宽带接入超声波/SDH/DWDM测试和测量

晶振料号	品牌	系列	频率	Description描述	Size / Dimension 尺寸
CPPFXC8LZ-A5BP-60.0TS	Cardinal晶振	FIPO™ CPPFX	60MHz	OSC XO 60.000MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8-A7BR-16.0TS	Cardinal晶振	FIPO™ CPPFX	16MHz	OSC XO 16.000MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8-A7BR-16.9344TS	Cardinal晶振	FIPO™ CPPFX	16.9344MHz	OSC XO 16.9344MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8-A7BR-4.0TS	Cardinal晶振	FIPO™ CPPFX	4MHz	OSC XO 4.000MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8-A7BR-40.96TS	Cardinal晶振	FIPO™ CPPFX	40.96MHz	OSC XO 40.96MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8L-A7BP-44.736TS	Cardinal晶振	FIPO™ CPPFX	44.736MHz	OSC XO 44.736MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC8-A7BR-18.528TS	Cardinal晶振	FIPO™ CPPFX	18.528MHz	OSC XO 18.528MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
CPPFXC4T-A7BR-4.0TS	Cardinal晶振	FIPO™ CPPFX	4MHz	OSC XO 4.000MHZ CMOS PC PIN	0.520" L x 0.520" W (13.20mm x 13.20mm)
CPPFXC4L-A7BR-26.5625TS	Cardinal晶振	FIPO™ CPPFX	26.5625MHz	OSC XO 26.5625MHZ CMOS PC PIN	0.520" L x 0.520" W (13.20mm x 13.20mm)
CPPFXC4LT-A7BR-160.0PD	Cardinal晶振	FIPO™ CPPFX	160MHz	OSC XO 160.000MHZ CMOS PC PIN	0.520" L x 0.520" W (13.20mm x 13.20mm)
CPPFXC4LT-A7BR-20.0PD	有源晶体	FIPO™ CPPFX	20MHz	OSC XO 20.000MHZ CMOS PC PIN	0.520" L x 0.520" W (13.20mm x 13.20mm)
CPPFXC4T-A7BD-121.5PD	Cardinal晶振	FIPO™ CPPFX	121.5MHz	OSC XO 121.50MHZ CMOS PC PIN	0.520" L x 0.520" W (13.20mm x 13.20mm)
CPPFXT7L-A7BD-10.0TS	Cardinal晶振	FIPO™ CPPFX	10MHz	OSC XO 10.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-A7BD-2.048TS	Cardinal晶振	FIPO™ CPPFX	2.048MHz	OSC XO 2.048MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-A7BD-20.0TS	Cardinal晶振	FIPO™ CPPFX	20MHz	OSC XO 20.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-A7BD-50.0TS	Cardinal晶振	FIPO™ CPPFX	50MHz	OSC XO 50.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-A7BD-75.0TS	Cardinal晶振	FIPO™ CPPFX	75MHz	OSC XO 75.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-A7BR-12.0TS	Cardinal晶振	FIPO™ CPPFX	12MHz	OSC XO 12.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7L-BR-11.2896TS	Cardinal晶振	FIPO™ CPPFX	11.2896MHz	OSC XO 11.2896MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT1-A7BD-1.0TS	Cardinal晶振	FIPO™ CPPFX	1MHz	OSC XO 1.000MHZ TTL PC PIN	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT1-A7BD-50.0TS	Cardinal晶振	FIPO™ CPPFX	50MHz	OSC XO 50.000MHZ TTL PC PIN	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXT7-A7BR-50.0TS	Cardinal晶振	FIPO™ CPPFX	50MHz	OSC XO 50.000MHZ TTL SMD	0.819" L x 0.520" W (20.80mm x 13.20mm)
CPPFXC8LT-A7BD-25.0TS	Cardinal晶振	FIPO™ CPPFX	25MHz	OSC XO 25.000MHZ CMOS SMD	0.571" L x 0.346" W (14.50mm x 8.80mm)
