CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V

频率：10MHZ

尺寸：7.0*5.0mm

CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V，尺寸为7050mm,频率为10MHZ,支持输出CMOS,电压为3.3V，康纳温菲尔德晶振，美国进口晶振，XO时钟振荡器，OSC晶振，有源贴片晶振，低抖动晶振，无线模块晶振，可视化智能家居晶振，无线网络晶振，康纳-温菲尔德CWX8xx-系列符合RoHS标准5.0×7.0mm表面安装，固定频率晶体控制振荡器(XO)。专为使用而设计在需要紧密频率的应用中稳定性和低抖动。表面安装包装为高密度设计安装和是最佳的质量生产。

有源晶体产品主要应用：无线网络，可视化智能家居，无线模块，蓝牙音响等领域。CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V.

订购热线：0755-27838351

有源晶体产品主要应用：无线网络，可视化智能家居，无线模块，蓝牙音响等领域。CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V.

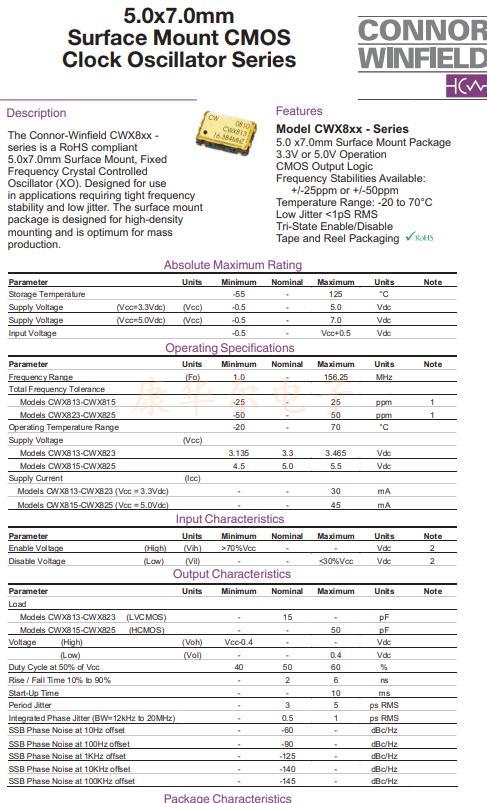

CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V 参数表

Parameter	Units		Minimum	Nominal	Maximum	Units Note
Storage Temperature			--55	-	125	°C
Supply Voltage	(Vcc=3.3Vdc) (Vcc)		--0.5	-	5.0	Vdc
Supply Voltage	(Vcc=5.0Vdc) (Vcc)		--0.5	-	7.0	Vdc
Input Voltage			--0.5	-	Vcc+0.5	Vdc
Operating Specifications
Parameter	Units		Minimum	Nominal	Maximum	Units Note
Frequency Range	(Fo)		1 .0	-	156.25	MHz
Total Frequency Tolerance
Models CWX813-CWX815			--25	-	25	ppm	1
Models CWX823-CWX825			--50	-	50	ppm	1
Operating Temperature Range			--20	-	70	°C
Supply Voltage		(Vcc)
Models CWX813-CWX823			3. 135	3.3	3 .465	Vdc
Models CWX815-CWX825			4 .5	5.0	5.5	Vdc
Supply Current		(Icc)
Models CWX813-CWX823 (Vcc = 3 .3Vdc)			-	-	30	mA
Models CWX815-CWX825 (Vcc = 5 .0Vdc)			-	-	45	mA
Input Characteristics
Parameter	Units		Minimum	Nominal	Maximum	Units	Note
Enable Voltage	(High) (Vih)		>70%Vcc	-	-	Vdc	2
Disable Voltage	(Low) (Vil)		-	-	<30%Vcc	Vdc	2
Output Characteristics
Parameter	Units Minimum Nominal Maximum Units Note
Load
Models CWX813-CWX823 (LVCMOS)			-	15	-	pF
Models CWX815-CWX825 (HCMOS)			-	-	50	pF
Voltage (High)		(Voh)	Vcc-0 .4	-	-	Vdc
(Low)		(Vol)	-	-	0.4	Vdc
Duty Cycle at 50% of Vcc			40	50	60	%
Rise / Fall Time 10% to 90%			-	2	6	ns
Start-Up Time			-	-	10	ms
Period Jitter			-	3	5	ps RMS
Integrated Phase Jitter (BW=12kHz to 20MHz)			-	0.5	1	ps RMS
SSB Phase Noise at 10Hz offset			-	- 60	-	dBc/Hz
SSB Phase Noise at 100Hz offset			-	- 90	-	dBc/Hz
SSB Phase Noise at 1KHz offset			-	--125	-	dBc/Hz
SSB Phase Noise at 10KHz offset			-	--140	-	dBc/Hz
SSB Phase Noise at 100KHz offset			-	--145	-	dBc/Hz

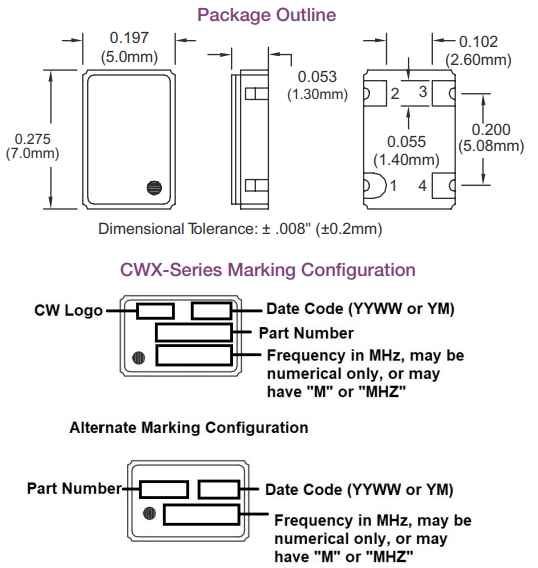

CWX815/CWX815-10.0M/7050mm/10MHZ/CMOS/3.3V 尺寸图

特性:

CWX8xx -系列
5.0x7.0mm表面贴装封装
3.3V或5.0V工作
CMOS输出逻辑
频率稳定性:
+/-25ppm或+/-50ppm
温度范围:-20 ~ 70℃
低抖动<1pS RMS
三态启用/禁用
胶带和卷轴包装
