Crystek石英振荡器,CCO-085-156.250MHz,,低电压6G无线晶振

频率：156.250MHz

尺寸：20.83x13.21mm

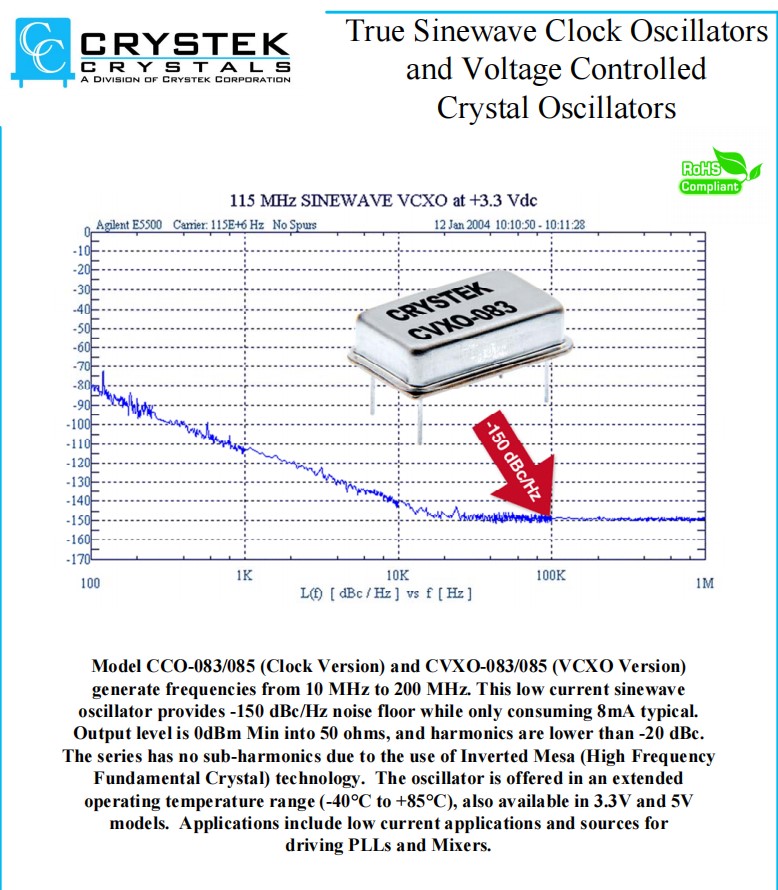

Crystek石英振荡器,CCO-085-156.250MHz,,低电压6G无线晶振，美国进口晶振，CRYSTEK瑞斯克晶振，型号CCO-085系列，晶振料号为CCO-085-156.250MHz，频率为：156.250MHz，尺寸为：20.83x13.21mm，电源电压 5.0V,，工作温度范围：0°C至+70°C (±25ppm)，有源晶振，石英晶体振荡器，石英晶振。这种低电流正弦波振荡器提供-150 dBc/Hz的噪声地板，而只消耗8 mA的典型。输出电平为0dBm Min到50欧姆，谐波低于-20 dBc。由于使用了反谐波（高频基础晶体）技术，该系列没有次谐波。该振荡器提供了一个扩展的工作温度范围（-40°C到+85°C）。应用程序包括：低电流的应用程序，源驱动pll和混合器，通讯设备，物联网，无线网络，蓝牙模块，消费电子等应用。

订购热线：0755-27838351

Crystek石英振荡器,CCO-085-156.250MHz,,低电压6G无线晶振 ，参数表

   Frequency Range:

    Temperature Range:
                                    (Option X)
    Storage:
    Input Voltage:            (Option 3)
                                    (Option 5)
    Input Current:

    Output:
              Load:
              Power (std):
                                    (Option B)
                                    (Option C)
                                    (Option D)
              Harmonics:
              Sub-Harmonics:
              Enable/Disable:
    Phase Noise Floor:
   Aging:
    CCO-083/085 Options Temperature Range:

156.250 MHz

0°C to +70°C
-40°C to +85°C
-45°C to 90°C
3.3V ±0.3V
5.0V ±0.5V
8mA Typical, 15mA Max @ 3.3V
12mA Typical, 20mA Max @ 5.0V
True Sinewave
50 Ω
0 dBm Min into 50 Ω
+3 dBm Min into 50 Ω
+5 dBm Min into 50 Ω
+7 dBm Min into 50 Ω
-20 dBc Max
None
None
- 150dBc Typical
<3ppm 1st year, <1ppm thereafter
0°C to +70°C (±25ppm Max)

Phase Noise Typical:
100 Hz -80 dBc/Hz
1 kHz -112 dBc/Hz
10 kHz -140 dBc/Hz
100 kHz -150 dBc/Hz

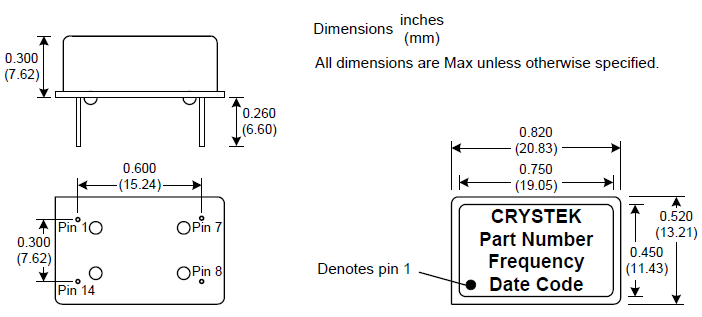

Crystek石英振荡器,CCO-085-156.250MHz,,低电压6G无线晶振，尺寸图
