T-75H4085NXH-26.000MHz,7050mm,26MHz,KVG北斗定位晶振

频率：26.000MHz

尺寸：7.0x5.0mm

T-75H4085NXH-26.000MHz,7050mm,26MHz,KVG北斗定位晶振，德国进口晶振，KVG晶振，型号：T-75系列晶振，编码为：T-75H4085NXH-26.000MHz，频率为：26.000MHz，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，TCXO温补晶体振荡器，有源晶振，石英晶振，温补晶振，石英晶体振荡器，石英振荡子，SMD晶振，电压2.5V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低损耗，低耗能，低电平，高精度，高性能等特点。被广泛应用于：通讯设备，导航仪，无线网络，蓝牙模块，北斗定位，物联网，罗拉LORA模块，汽车电子，医疗设备，仪器仪表设备等应用。

订购热线：0755-27838351

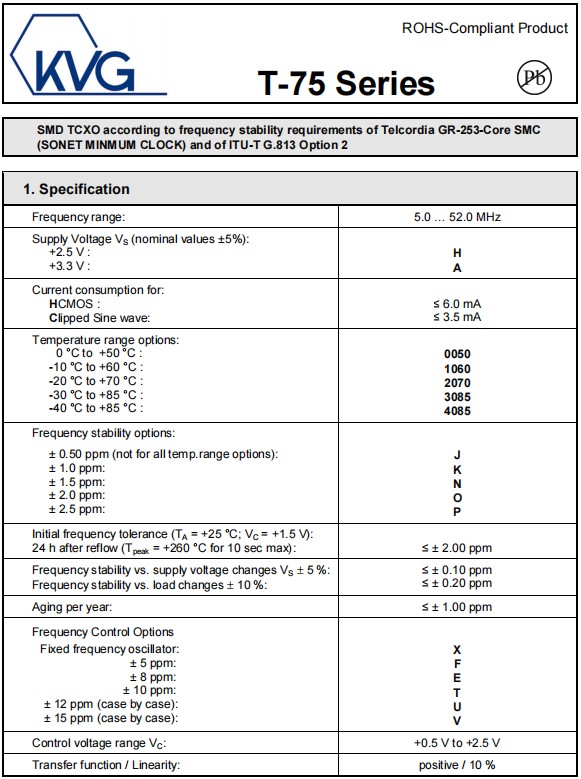

T-75H4085NXH-26.000MHz,7050mm,26MHz,KVG北斗定位晶振,参数表

Frequency range:	26.000 MHz
Supply Voltage VS (nominal values ±5%):
+2.5 V :	H
+3.3 V :	A
Current consumption for:
HCMOS :	≤ 6.0 mA
Clipped Sine wave:	≤ 3.5 mA
Temperature range options:
0 °C to +50 °C :	0050
-10 °C to +60 °C :	1060
-20 °C to +70 °C :	2070
-30 °C to +85 °C :	3085
-40 °C to +85 °C :	4085
Frequency stability options:
± 0.50 ppm (not for all temp.range options):	J
± 1.0 ppm:	K
± 1.5 ppm:	N
± 2.0 ppm:	O
± 2.5 ppm:	P
Initial frequency tolerance (TA = +25 °C; VC = +1.5 V):
24 h after reflow (Tpeak = +260 °C for 10 sec max):	≤ ± 2.00 ppm
Frequency stability vs. supply voltage changes VS ±5 %:	≤ ± 0.10 ppm
Frequency stability vs. load changes ±10 %:	≤ ± 0.20 ppm
Aging per year:	≤ ± 1.00 ppm
Frequency Control Options
Fixed frequency oscillator:	X
± 5 ppm:	F
± 8 ppm:	E
± 10 ppm:	T
± 12 ppm (case by case):	U
± 15 ppm (case by case):	V
Control voltage range VC:	+0.5 V to +2.5 V
Transfer function / Linearity:	positive / 10 %

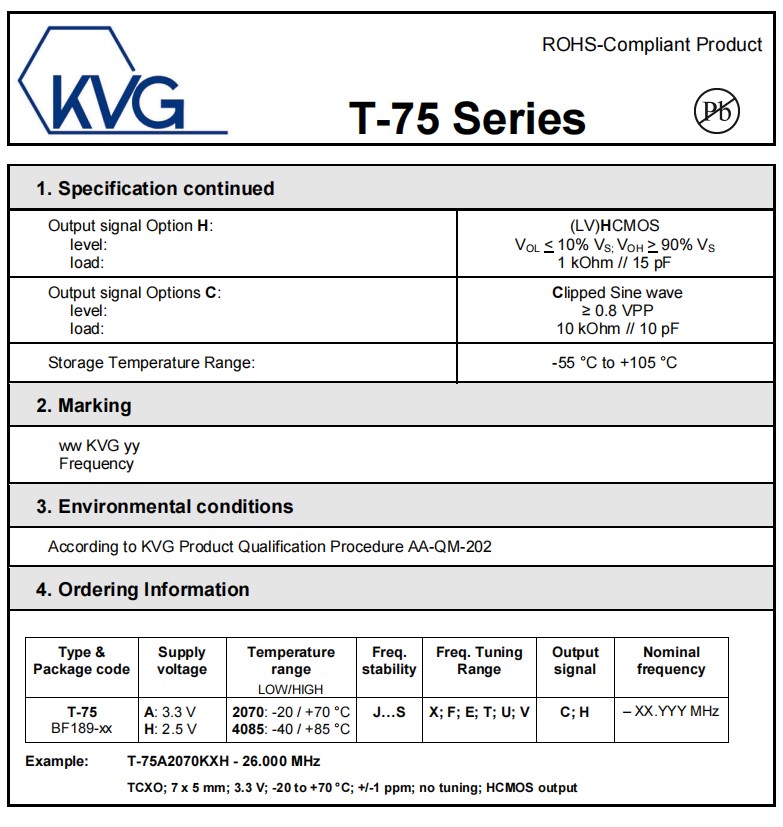

T-75H4085NXH-26.000MHz,7050mm,26MHz,KVG北斗定位晶振,尺寸图

T-75H4085NXH-26.000MHz,7050mm,26MHz,KVG北斗定位晶振

晶振是电子产品都得依赖的一款电子器件,它是通常应用到一些电子产品当中。削波正弦波形是TCXO温补晶振最受欢迎的输出选项,这是为什么呢,主要原因有两点.其一是低功耗,改善了热特性以及更好的老化和频率稳定性能;其二则是比CMOS输出更好的相位噪声性能.也就是说石英晶振在采用削波正玄波作为输出方式之后会减少谐波分量的数量,使得晶振产品具备低相位噪声的性能.
