表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择

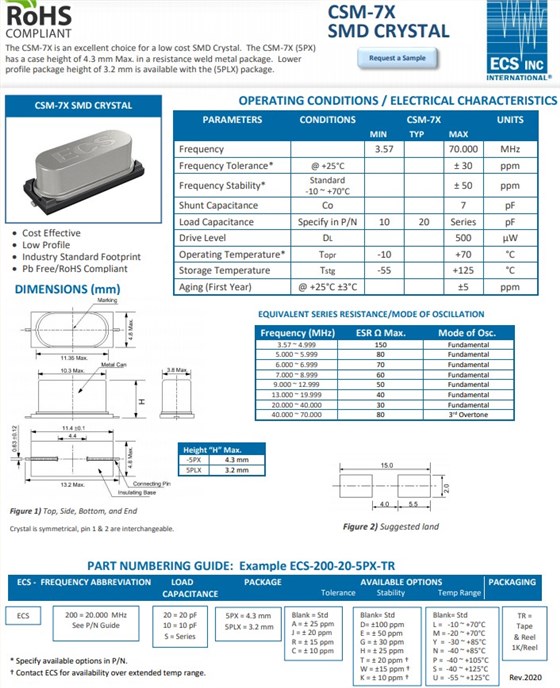

ECS Inc. International的表面贴装(SMD)晶体非常可靠，在许多应用中具有长期稳定性。石英晶振可在定制和标准频率下供应，也可定制具有紧密稳定性和低等效串联电阻(ESR)的产品。ECS Inc .提供市场上最广泛的封装尺寸选择之一，小到1.2mmx1.0mm封装，温度范围高达+150℃。 CSM-7X是一款紧凑型表面贴装晶体，小体积尺寸采用11.35毫米x4.8毫米x4.3毫米双焊盘封装，无源贴片晶振，频率范围：3.57MHz~70MHz，CSM-7X提供了50ppm在-10℃~70℃的温度范围内保持稳定。符合RoHS 3和REACH标准，该器件是对稳定性要求不高的应用的理想选择。表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择

晶振料号	厂家	型号	频率	工作温度	包装/封装
ECS-120-20-5PX-TR	ECS Crystal	CSM-7X	12MHz	-10°C ~ 70°C	HC49/US
ECS-49-20-5PX-TR	ECS Crystal	CSM-7X	4.9152MHz	-10°C ~ 70°C	HC49/US
ECS-50-20-5PX-TR	ECS Crystal	CSM-7X	5MHz	-10°C ~ 70°C	HC49/US
ECS-120-18-5PX-TR	ECS Crystal	CSM-7X	12MHz	-10°C ~ 70°C	HC49/US
ECS-40-20-5PX-TR	ECS Crystal	CSM-7X	4MHz	-10°C ~ 70°C	HC49/US
ECS-80-18-5PX-TR	ECS Crystal	CSM-7X	8MHz	-10°C ~ 70°C	HC49/US
ECS-184-18-5PX-TR	ECS Crystal	CSM-7X	18.432MHz	-10°C ~ 70°C	HC49/US
ECS-147.4-20-5PX-TR	ECS Crystal	CSM-7X	14.7456MHz	-10°C ~ 70°C	HC49/US
ECS-160-20-5PX-TR	ECS Crystal	CSM-7X	16MHz	-10°C ~ 70°C	HC49/US
ECS-245.7-20-5PX-TR	ECS Crystal	CSM-7X	24.576MHz	-10°C ~ 70°C	HC49/US
ECS-250-18-5PX-F-TR	ECS Crystal	CSM-7X	25MHz	-10°C ~ 70°C	HC49/US
ECS-240-12-5PX-TR	ECS Crystal	CSM-7X	24MHz	-10°C ~ 70°C	HC49/US
ECS-36-20-5PX-TR	ECS Crystal	CSM-7X	3.6864MHz	-10°C ~ 70°C	HC49/US
ECS-100-18-5PX-TR	ECS Crystal	CSM-7X	10MHz	-10°C ~ 70°C	HC49/US
ECS-98.3-20-5PX-TR	ECS Crystal	CSM-7X	9.8304MHz	-10°C ~ 70°C	HC49/US
ECS-184-20-5PX-TR	ECS Crystal	CSM-7X	18.432MHz	-10°C ~ 70°C	HC49/US
ECS-35-17-5PX-TR	ECS Crystal	CSM-7X	3.579545MHz	-10°C ~ 70°C	HC49/US
ECS-110.5-S-5PX-TR	ECS Crystal	CSM-7X	11.0592MHz	-10°C ~ 70°C	HC49/US
ECS-200-20-5PX-TR	ECS Crystal	CSM-7X	20MHz	-10°C ~ 70°C	HC49/US
ECS-36-S-5PX-TR	ECS Crystal	CSM-7X	3.6864MHz	-10°C ~ 70°C	HC49/US
ECS-41-20-5PX-TR	ECS Crystal	CSM-7X	4.096MHz	-10°C ~ 70°C	HC49/US
ECS-200-16-5PX-TR	ECS Crystal	CSM-7X	20MHz	-10°C ~ 70°C	HC49/US
ECS-240-20-5PX-TR	ECS Crystal	CSM-7X	24MHz	-10°C ~ 70°C	HC49/US
ECS-60-32-5PX-TR	ECS Crystal	CSM-7X	6MHz	-10°C ~ 70°C	HC49/US
ECS-73-20-5PX-TR	ECS Crystal	CSM-7X	7.3728MHz	-10°C ~ 70°C	HC49/US
ECS-92.1-20-5PX-TR	ECS Crystal	CSM-7X	9.216MHz	-10°C ~ 70°C	HC49/US
ECS-40-S-5PX-TR	ECS Crystal	CSM-7X	4MHz	-10°C ~ 70°C	HC49/US
ECS-160-S-5PX-TR	ECS Crystal	CSM-7X	16MHz	-10°C ~ 70°C	HC49/US
ECS-60-20-5PX-TR	ECS Crystal	CSM-7X	6MHz	-10°C ~ 70°C	HC49/US
ECS-184-S-5PX-TR	ECS Crystal	CSM-7X	18.432MHz	-10°C ~ 70°C	HC49/US
ECS-50-S-5PX-TR	ECS Crystal	CSM-7X	5MHz	-10°C ~ 70°C	HC49/US
ECS-110.5-32-5PX-TR	ECS Crystal	CSM-7X	11.0592MHz	-10°C ~ 70°C	HC49/US
ECS-61-32-5PX-TR	ECS Crystal	CSM-7X	6.144MHz	-10°C ~ 70°C	HC49/US
ECS-120-32-5PX-TR	伊西斯晶振	CSM-7X	12MHz	-10°C ~ 70°C	HC49/US
ECS-270-18-5PX-F-TR	ECS Crystal	CSM-7X	27MHz	-10°C ~ 70°C	HC49/US
ECS-49-S-5PX-TR	ECS Crystal	CSM-7X	4.9152MHz	-10°C ~ 70°C	HC49/US
ECS-100-S-5PX-TR	ECS Crystal	CSM-7X	10MHz	-10°C ~ 70°C	HC49/US
ECS-147.4-S-5PX-TR	ECS Crystal	CSM-7X	14.7456MHz	-10°C ~ 70°C	HC49/US
ECS-135.6-12-5PX-TR	ECS Crystal	CSM-7X	13.56MHz	-10°C ~ 70°C	HC49/US
ECS-120-S-5PX-TR	ECS Crystal	CSM-7X	12MHz	-10°C ~ 70°C	HC49/US
ECS-122.8-S-5PX-TR	ECS Crystal	CSM-7X	12.288MHz	-10°C ~ 70°C	HC49/US
ECS-200-18-5PX-TR	ECS Crystal	CSM-7X	20MHz	-10°C ~ 70°C	HC49/US
ECS-80-18-5PX-JEM-TR	ECS Crystal	CSM-7X	8MHz	-20°C ~ 70°C	HC49/US
ECS-49-18-5PX-JEM-TR	ECS Crystal	CSM-7X	4.9152MHz	-20°C ~ 70°C	HC49/US
ECS-40-18-5PXEN-TR	ECS Crystal	CSM-7X	4MHz	-40°C ~ 85°C	HC49/US
ECS-76.8-18-5PXEN-TR	ECS Crystal	CSM-7X	7.68MHz	-40°C ~ 85°C	HC49/US
ECS-98.3-18-5PXEN-TR	ECS Crystal	CSM-7X	9.8304MHz	-40°C ~ 85°C	HC49/US
ECS-42-18-5PXEN-TR	ECS Crystal	CSM-7X	4.194304MHz	-40°C ~ 85°C	HC49/US
ECS-110-18-5PXEN-TR	ECS Crystal	CSM-7X	11MHz	-40°C ~ 85°C	HC49/US
ECS-110.5-18-5PXEN-TR	ECS Crystal	CSM-7X	11.0592MHz	-40°C ~ 85°C	HC49/US
ECS-40.3-20-5PX-TR	ECS Crystal	CSM-7X	4.032MHz	-10°C ~ 70°C	HC49/US
ECS-143-20-5PX-TR	ECS Crystal	CSM-7X	14.31818MHz	-10°C ~ 70°C	HC49/US
ECS-120-18-5PLX-GN-TR	ECS Crystal	CSM-7X	12MHz	-40°C ~ 85°C	HC49/US
ECS-42-12-5PX-TR	ECS Crystal	CSM-7X	4.194304MHz	-10°C ~ 70°C	HC49/US
ECS-122.8-20-5PX-TR	ECS Crystal	CSM-7X	12.288MHz	-10°C ~ 70°C	HC49/US
ECS-80-S-5PX-TR	ECS Crystal	CSM-7X	8MHz	-10°C ~ 70°C	HC49/US
ECS-240-16-5PX-TR	ECS Crystal	CSM-7X	24MHz	-10°C ~ 70°C	HC49/US
ECS-92.1-S-5PX-TR	ECS Crystal	CSM-7X	9.216MHz	-10°C ~ 70°C	HC49/US
ECS-73-S-5PX-TR	ECS Crystal	CSM-7X	7.3728MHz	-10°C ~ 70°C	HC49/US
ECS-60-S-5PX-TR	ECS Crystal	CSM-7X	6MHz	-10°C ~ 70°C	HC49/US
ECS-80-32-5PX-TR	ECS Crystal	CSM-7X	8MHz	-10°C ~ 70°C	HC49/US
ECS-59.9-20-5PX-TR	ECS Crystal	CSM-7X	5.9904MHz	-10°C ~ 70°C	HC49/US
ECS-200-18-5PXEN-TR	ECS Crystal	CSM-7X	20MHz	-40°C ~ 85°C	HC49/US
ECS-35-18-5PXEN-TR	ECS Crystal	CSM-7X	3.579545MHz	-40°C ~ 85°C	HC49/US
ECS-36-18-5PXEN-TR	ECS Crystal	CSM-7X	3.6864MHz	-40°C ~ 85°C	HC49/US
ECS-73-18-5PXEN-TR	ECS Crystal	CSM-7X	7.3728MHz	-40°C ~ 85°C	HC49/US
ECS-163-18-5PXEN-TR	ECS Crystal	CSM-7X	16.384MHz	-40°C ~ 85°C	HC49/US
ECS-245.7-18-5PXEN-TR	ECS Crystal	CSM-7X	24.576MHz	-40°C ~ 85°C	HC49/US
ECS-286.3-18-5PX-F-EN-TR	ECS Crystal	CSM-7X	28.63636MHz	-40°C ~ 85°C	HC49/US
ECS-160-18-5PXEN-TR	ECS Crystal	CSM-7X	16MHz	-40°C ~ 85°C	HC49/US
ECS-240-18-5PXEN-TR	ECS Crystal	CSM-7X	24MHz	-40°C ~ 85°C	HC49/US
ECS-221-18-5PXEN-TR	ECS Crystal	CSM-7X晶体	22.1184MHz	-40°C ~ 85°C	HC49/US
ECS-122.8-18-5PXEN-TR	ECS Crystal	CSM-7X	12.288MHz	-40°C ~ 85°C	HC49/US
ECS-80-18-5PXDS-TR	ECS Crystal	CSM-7X	8MHz	-40°C ~ 125°C	HC49/US
ECS-160-18-5PX-TR	ECS Crystal	CSM-7X	16MHz	-10°C ~ 70°C	HC49/US
ECS-100-20-5PX-TR	ECS Crystal	CSM-7X	10MHz	-10°C ~ 70°C	HC49/US
ECS-200-18-5PX-JEM-TR	ECS Crystal	CSM-7X	20MHz	-20°C ~ 70°C	HC49/US
ECS-120-18-5PX-JEM-TR	ECS Crystal	CSM-7X	12MHz	-20°C ~ 70°C	HC49/US
ECS-250-18-5PX-JEM-TR	ECS Crystal	CSM-7X	25MHz	-20°C ~ 70°C	HC49/US
ECS-480-20-5PX-TR	ECS Crystal	CSM-7X	48MHz	-10°C ~ 70°C	HC49/US
ECS-250-18-5PLX-GN-TR	ECS Crystal	CSM-7X	25MHz	-40°C ~ 85°C	HC49/US
ECS-150-S-5PX-TR	ECS Crystal	CSM-7X	15MHz	-10°C ~ 70°C	HC49/US
ECS-200-S-5PX-TR	ECS Crystal	CSM-7X	20MHz	-10°C ~ 70°C	HC49/US
ECS-196.6-20-5PX-TR	ECS Crystal	CSM-7X	19.6608MHz	-10°C ~ 70°C	HC49/US
ECS-110.5-20-5PX-TR	ECS Crystal	CSM-7X	11.0592MHz	-10°C ~ 70°C	HC49/US
ECS-80-20-5PX-TR	ECS Crystal	CSM-7X	8MHz	-10°C ~ 70°C	HC49/US
ECS-41-18-5PXEN-TR	ECS Crystal	CSM-7X	4.096MHz	-40°C ~ 85°C	HC49/US
ECS-143-18-5PXEN-TR	ECS Crystal	CSM-7X	14.31818MHz	-40°C ~ 85°C	HC49/US
ECS-50-18-5PXEN-TR	ECS Crystal	CSM-7X	5MHz	-40°C ~ 85°C	HC49/US

表面贴装晶体ECS-120-18-5PLX-GN-TR对稳定性要求不高的应用理想选择，ECS Inc .的表面贴装(SMD)晶体为用户提供了一种解决方案，可为各种应用提供长期稳定性和可靠性。表面贴装功能允许您的器件封装时，将引脚直接焊接到电路板表面的焊盘上。SMD石英晶体提供定制和标准频率，非常适合以下应用:微处理器、物联网(IoT ),包括GPS系统和智能家居安全系统、汽车计算机和组件、智能手表等可穿戴技术、Wi-Fi、连接等。
