美国ECS伊西斯晶振ECS-2033，是一款2.5mmx2.0mmx0.8mm四脚贴片晶振，HCMOS表面贴装振荡器，时钟振荡器，有源晶振，具有低功耗特性，工作温度范围为：-40℃至+85℃标准工业温度范围，并提供扩展温度范围选项。ECS-2033的电源电压为+3.3V，频率范围为0.75MHz至75MHz。有源晶体超小型，轻薄型，该电子器件符合RoHS标准，被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位，导航仪，医疗保健，物联网等应用。SMD时钟振荡器ECS-2033-100-AU是当今高密度应用的理想选择
SMD时钟振荡器ECS-2033-100-AU是当今高密度应用的理想选择
晶振料号
品牌
型号
频率
工作温度
ECS-2033-147.4-AU
ECS晶振
ECS-2033
14.7456MHz
-55°C ~ 125°C
ECS-2033-080-AU
ECS晶振
ECS-2033
8MHz
-55°C ~ 125°C
ECS-2033-160-BN
ECS晶振
ECS-2033
16MHz
-40°C ~ 85°C
ECS-2033-240-BN
ECS晶振
ECS-2033
24MHz
-40°C ~ 85°C
ECS-2033-130-BN
ECS晶振
ECS-2033
13MHz
-40°C ~ 85°C
ECS-2033-250-BN
ECS晶振
ECS-2033
25MHz
-40°C ~ 85°C
ECS-2033-080-BN
ECS晶振
ECS-2033
8MHz
-40°C ~ 85°C
ECS-2033-270-BN
ECS晶振
ECS-2033
27MHz
-40°C ~ 85°C
ECS-2033-040-BN
ECS晶振
ECS-2033
4MHz
-40°C ~ 85°C
ECS-2033-073-BN
ECS晶振
ECS-2033
7.3728MHz
-40°C ~ 85°C
ECS-2033-100-BN
ECS晶振
ECS-2033
10MHz
-40°C ~ 85°C
ECS-2033-200-BN
ECS晶振
ECS-2033
20MHz
-40°C ~ 85°C
ECS-2033-320-BN
ECS晶振
ECS-2033
32MHz
-40°C ~ 85°C
ECS-2033-036-AU
ECS晶振
ECS-2033
3.6864MHz
-55°C ~ 125°C
ECS-2033-160-AU
ECS晶振
ECS-2033
16MHz
-55°C ~ 125°C
ECS-2033-100-AU
ECS晶振
ECS-2033
10MHz
-55°C ~ 125°C
ECS-2033-040-AU
ECS晶振
ECS-2033
4MHz
-55°C ~ 125°C
ECS-2033-240-AU
ECS晶振
ECS-2033
24MHz
-55°C ~ 125°C
ECS-2033-143-AU
ECS贴片晶振
ECS-2033
14.31818MHz
-55°C ~ 125°C
ECS-2033-320-AU
ECS晶振
ECS-2033
32MHz
-55°C ~ 125°C
ECS-2033-400-AU
ECS晶振
ECS-2033
40MHz
-55°C ~ 125°C
ECS-2033-147.4-BN
ECS晶振
ECS-2033
14.7456MHz
-40°C ~ 85°C
ECS-2033-300-BN
ECS晶振
ECS-2033
30MHz
-40°C ~ 85°C
ECS-2033-400-BN
ECS晶振
ECS-2033
40MHz
-40°C ~ 85°C
ECS-2033-500-BN
ECS晶振
ECS-2033
50MHz
-40°C ~ 85°C
ECS-2033-480-BN
ECS晶振
ECS-2033
48MHz
-40°C ~ 85°C
ECS-2033-143-BN
ECS晶振
ECS-2033
14.31818MHz
-40°C ~ 85°C
ECS-2033-060-BN
ECS晶振
ECS-2033
6MHz
-40°C ~ 85°C
ECS-2033-036-BN
ECS晶振
ECS-2033
3.6864MHz
-40°C ~ 85°C
ECS-2033-035-BN
ECS晶振
ECS-2033
3.579545MHz
-40°C ~ 85°C
ECS-2033-270-AU
ECS晶振
ECS-2033
27MHz
-55°C ~ 125°C
ECS-2033-130-AU
ECS晶振
ECS-2033
13MHz
-55°C ~ 125°C
ECS-2033-300-AU
ECS晶振
ECS-2033
30MHz
-55°C ~ 125°C
ECS-2033-120-AU
ECS晶振
ECS-2033
12MHz
-55°C ~ 125°C
ECS-2033-073-AU
ECS晶振
ECS-2033
7.3728MHz
-55°C ~ 125°C
ECS-2033-200-AU
ECS晶振
ECS-2033
20MHz
-55°C ~ 125°C
ECS-2033-250-AU
ECS晶振
ECS-2033
25MHz
-55°C ~ 125°C
ECS-2033-120-BN
ECS晶振
ECS-2033
12MHz
-40°C ~ 85°C
ECS-2033-035-AU
ECS晶振
ECS-2033
3.579545MHz
-55°C ~ 125°C
ECS-2033-060-AU
ECS晶振
ECS-2033
6MHz
-55°C ~ 125°C
ECS-2033-500-AU
ECS晶振
ECS-2033
50MHz
-55°C ~ 125°C
ECS-2033-1000-BN
ECS晶振
ECS-2033
100MHz
-40°C ~ 85°C
ECS-2033-1250-BN
ECS晶振
ECS-2033
125MHz
-40°C ~ 85°C

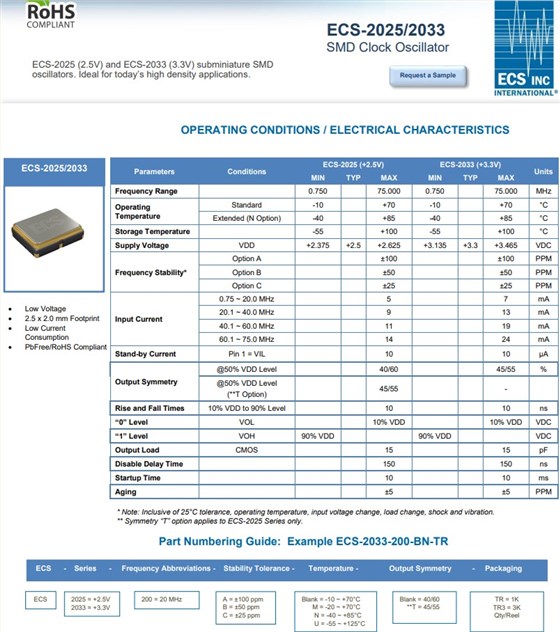

ECS-2033晶振特征：
包装尺寸：2.50x2.00mm
电源电压：3.3V
输出：HCMOS表面贴装振荡器
频率范围：0.75MHz至75MHz
稳定性：50ppm，100ppm
操作的温度：-40℃~85℃，-55℃~125℃
封装尺寸：2.5毫米x 2.0毫米x 0.8毫米
频率范围：0.75兆赫~ 75兆赫
温度范围：-10℃~70℃，-40℃~85℃，-55℃~125℃
符合RoHS 3和REACH标准
