亚陶晶振卓越相位噪声的绿色环保TCXO可满足电子产品的需求FD6600017,ECERA品牌

亚陶晶振卓越相位噪声的绿色环保TCXO可满足电子产品的需求FD6600017,ECERA品牌,百利通亚陶晶振公司主要研发生产石英晶振,贴片晶振,温补晶振,石英晶体振荡器等元器件,为了减少原料对环境的污染,减少污染物排放,对不可再生的资源进行有效利用.减少废物的产生,对其排放的责任进行有效管理,有效地使用能源.通过设计工艺程序对员工进行培训保护环境以及人们的健康和安全.提供安全使用和废置我们的产品的信息,对环境有重大健康安全和环境的运营现状进行纠正.

FD3600009	Diodes晶振	SaRonix-eCera™ FD	36MHz	±25ppm	-20°C ~ 70°C
FD3680001	Diodes晶振	SaRonix-eCera™ FD	36.864MHz	±50ppm	-20°C ~ 70°C
FD3680002	Diodes晶振	SaRonix-eCera™ FD	36.864MHz	±25ppm	-20°C ~ 70°C
FD3680003	Diodes晶振	SaRonix-eCera™ FD	36.864MHz	±50ppm	-40°C ~ 85°C
FD4000119	Diodes晶振	SaRonix-eCera™ FD	40MHz	±50ppm	-20°C ~ 70°C
FD4000120	Diodes晶振	SaRonix-eCera™ FD	40MHz	±25ppm	-20°C ~ 70°C
FD4000121	Diodes晶振	SaRonix-eCera™ FD	40MHz	±50ppm	-40°C ~ 85°C
FD4000123	Diodes晶振	SaRonix-eCera™ FD	40MHz	±25ppm	-20°C ~ 70°C
FD4100001	Diodes晶振	SaRonix-eCera™ FD	41MHz	±50ppm	-20°C ~ 70°C
FD4100002	Diodes晶振	SaRonix-eCera™ FD	41MHz	±50ppm	-20°C ~ 70°C
FD4400070	Diodes晶振	SaRonix-eCera™ FD	41MHz	±50ppm	-20°C ~ 70°C
FD4470001	Diodes晶振	SaRonix-eCera™ FD	44.736MHz	±25ppm	-20°C ~ 70°C
FD4800046	Diodes晶振	SaRonix-eCera™ FD	48MHz	±50ppm	-20°C ~ 70°C
FD4800047	Diodes晶振	SaRonix-eCera™ FD	48MHz	±25ppm	-20°C ~ 70°C
FD4800048	Diodes晶振	SaRonix-eCera™ FD	48MHz	±50ppm	-40°C ~ 85°C
FD4800050	Diodes晶振	SaRonix-eCera™ FD	48MHz	±50ppm	-20°C ~ 70°C
FD4910004	Diodes晶振	SaRonix-eCera™ FD	49.152MHz	±25ppm	-20°C ~ 70°C
FD5000032	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-20°C ~ 70°C
FD5000033	Diodes晶振	SaRonix-eCera™ FD	50MHz	±25ppm	-20°C ~ 70°C
FD5000034	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-40°C ~ 85°C
FD5000036	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-40°C ~ 85°C
FD5000037	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-20°C ~ 70°C
FD5000040	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-20°C ~ 70°C
FD5400017	Diodes晶振	SaRonix-eCera™ FD	54MHz	±50ppm	-40°C ~ 85°C

The TCXO (Temperature Compensated Crystal Oscillator) is used to create a stable frequency reference (0.5ppm) over a prescribed temperature range with a clipped sinewave output.

Our TCXOs support various power supply voltages, output frequencies, temperature stability and other features. Our TCXOs compensate for variables such as ambient temperature, voltage, or load environments. Our TCXOs have excellent phase-noise performance and is best for GPS, smart-phones and wireless-modules applications.

TCXO（温度补偿晶体振荡器）用于在规定的温度范围内产生稳定的频率参考 (0.5ppm)，并具有削波正弦波输出。

我们的 TCXO 支持各种电源电压、输出频率、温度稳定性和其他特性。我们的 TCXO 可补偿环境温度、电压或负载环境等变量。我们的 TCXO 具有出色的相位噪声性能，最适合 GPS、智能手机和无线模块应用。亚陶晶振卓越相位噪声的绿色环保TCXO可满足电子产品的需求FD6600017,ECERA品牌

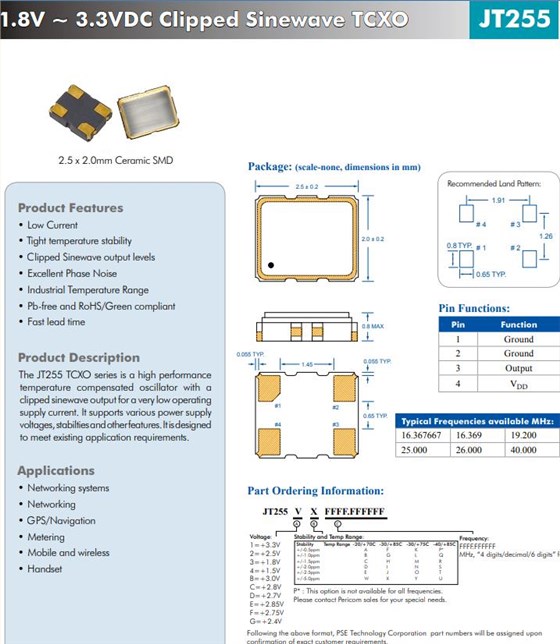

百利通亚陶晶振公司推出的JT255 TCXO系列是一款高性能产品温度补偿振荡器剪切正弦波输出非常低的工作电源电流。支持多种电源具有电压、稳定性等特点。它的目的是以满足现有的应用程序需求。

FD5670001	Diodes晶振	SaRonix-eCera™ FD	56.75MHz	±50ppm	-20°C ~ 70°C
FD6000016	Diodes晶振	SaRonix-eCera™ FD	60MHz	±50ppm	-20°C ~ 70°C
FD6250007	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
FD6250008	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±25ppm	-20°C ~ 70°C
FD6250009	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-40°C ~ 85°C
FD6250011	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
FD6400006	Diodes晶振	SaRonix-eCera™ FD	64MHz	±50ppm	-20°C ~ 70°C
FD6400007	Diodes晶振	SaRonix-eCera™ FD	64MHz	±25ppm	-20°C ~ 70°C
FD6400008	Diodes晶振	SaRonix-eCera™ FD	64MHz	±50ppm	-40°C ~ 85°C
FD6600015	Diodes晶振	SaRonix-eCera™ FD	66MHz	±25ppm	-20°C ~ 70°C
FD6600016	Diodes晶振	SaRonix-eCera™ FD	66MHz	±50ppm	-40°C ~ 85°C
FD6600017	Diodes晶振	SaRonix-eCera™ FD	66MHz	±50ppm	-20°C ~ 70°C
FD6660016	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±50ppm	-20°C ~ 70°C
FD6660017	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±25ppm	-20°C ~ 70°C
FD6660018	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±50ppm	-40°C ~ 85°C
FD6660019	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±50ppm	-20°C ~ 70°C
FD6660020	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±25ppm	-20°C ~ 70°C
FD6660021	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±50ppm	-40°C ~ 85°C
FD6660024	Diodes晶振	SaRonix-eCera™ FD	66.667MHz	±25ppm	-20°C ~ 70°C
FD6800001	Diodes晶振	SaRonix-eCera™ FD	68MHz	±50ppm	-40°C ~ 85°C
FD7420006	Diodes晶振	SaRonix-eCera™ FD	74.25MHz	±25ppm	-20°C ~ 70°C
FD7500010	Diodes晶振	SaRonix-eCera™ FD	75MHz	±50ppm	-20°C ~ 70°C
FD7500011	Diodes晶振	SaRonix-eCera™ FD	75MHz	±25ppm	-20°C ~ 70°C

产品特性
低电流
温度稳定性好
剪切正弦波输出电平
卓越的相位噪声
工业温度范围
无铅和RoHS/绿色环保
交货时间快
应用程序
网络系统
网络
GPS /导航
计量
移动和无线
手机
