亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器

亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器，百利通亚陶公司以超乎寻常的创新能力开发大量优质的有源晶振产品，成功实现自我的价值最大化的同时，也为自身增加无限的光辉时刻，为了纪念那些有意义的时光，亚陶公司针对性开发了具有里程碑意义的产品，产品代表着拥有无数光环与辉煌的Diodes，也见证着其成长的过程。

Manufacturer Part Number原厂代码	台产晶振品牌	Series型号	Frequency 频率	Frequency Stability频率稳定度	Operating Temperature工作温度
FD5000036	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-40°C ~ 85°C
FD5000037	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-20°C ~ 70°C
FD5000040	Diodes晶振	SaRonix-eCera™ FD	50MHz	±50ppm	-20°C ~ 70°C
FD5400017	Diodes晶振	SaRonix-eCera™ FD	54MHz	±50ppm	-40°C ~ 85°C
FD5670001	Diodes晶振	SaRonix-eCera™ FD	56.75MHz	±50ppm	-20°C ~ 70°C
FD6000016	Diodes晶振	SaRonix-eCera™ FD	60MHz	±50ppm	-20°C ~ 70°C
FD6250007	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
FD6250008	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±25ppm	-20°C ~ 70°C
FD6250009	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-40°C ~ 85°C
FD6250011	Diodes晶振	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
FD6400006	Diodes晶振	SaRonix-eCera™ FD	64MHz	±50ppm	-20°C ~ 70°C
FD6400007	Diodes晶振	SaRonix-eCera™ FD	64MHz	±25ppm	-20°C ~ 70°C
FD6400008	Diodes晶振	SaRonix-eCera™ FD	64MHz	±50ppm	-40°C ~ 85°C
FD6600015	Diodes晶振	SaRonix-eCera™ FD	66MHz	±25ppm	-20°C ~ 70°C
FD6600016	Diodes晶振	SaRonix-eCera™ FD	66MHz	±50ppm	-40°C ~ 85°C
FD6600017	Diodes晶振	SaRonix-eCera™ FD	66MHz	±50ppm	-20°C ~ 70°C
FD6660016	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±50ppm	-20°C ~ 70°C
FD6660017	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±25ppm	-20°C ~ 70°C
FD6660018	Diodes晶振	SaRonix-eCera™ FD	66.666MHz	±50ppm	-40°C ~ 85°C
FD6660019	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±50ppm	-20°C ~ 70°C
FD6660020	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±25ppm	-20°C ~ 70°C
FD6660021	Diodes晶振	SaRonix-eCera™ FD	66.6667MHz	±50ppm	-40°C ~ 85°C
FD6660024	Diodes晶振	SaRonix-eCera™ FD	66.667MHz	±25ppm	-20°C ~ 70°C
FD6800001	Diodes晶振	SaRonix-eCera™ FD	68MHz	±50ppm	-40°C ~ 85°C
FD7420006	Diodes晶振	SaRonix-eCera™ FD	74.25MHz	±25ppm	-20°C ~ 70°C
FD7500010	Diodes晶振	SaRonix-eCera™ FD	75MHz	±50ppm	-20°C ~ 70°C
FD7500011	Diodes晶振	SaRonix-eCera™ FD	75MHz	±25ppm	-20°C ~ 70°C
FD7500013	Diodes晶振	SaRonix-eCera™ FD	75MHz	±50ppm	-40°C ~ 85°C
FD7770004	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±50ppm	-20°C ~ 70°C
FD7770005	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±25ppm	-20°C ~ 70°C
FD7770006	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±50ppm	-40°C ~ 85°C
FD7770007	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±50ppm	-20°C ~ 70°C
FD7770008	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±25ppm	-20°C ~ 70°C
FD7770009	Diodes晶振	SaRonix-eCera™ FD	77.76MHz	±50ppm	-40°C ~ 85°C
FDC500014	Diodes晶振	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FK0100001	Diodes晶振	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0100002	Diodes晶振	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0180004	Diodes晶振	SaRonix-eCera™ FK	1.843MHz	±50ppm	-20°C ~ 70°C
FK0180005	Diodes晶振	SaRonix-eCera™ FK	1.843MHz	±25ppm	-20°C ~ 70°C
FK0180006	Diodes晶振	SaRonix-eCera™ FK	1.843MHz	±50ppm	-40°C ~ 85°C
FK0200002	Diodes晶振	SaRonix-eCera™ FK	2MHz	±50ppm	-20°C ~ 70°C
FK0360002	Diodes晶振	SaRonix-eCera™ FK	3.686MHz	±50ppm	-20°C ~ 70°C
FK0360003	Diodes晶振	SaRonix-eCera™ FK	3.686MHz	±25ppm	-20°C ~ 70°C
FK0360004	Diodes晶振	SaRonix-eCera™ FK	3.686MHz	±50ppm	-40°C ~ 85°C
FK0400005	Diodes晶振	SaRonix-eCera™ FK	4MHz	±25ppm	-20°C ~ 70°C
FK0400007	Diodes晶振	SaRonix-eCera™ FK	4MHz	±50ppm	-40°C ~ 85°C
FK0500002	Diodes晶振	SaRonix-eCera™ FK	5MHz	±50ppm	-40°C ~ 85°C
FK0530001	Diodes晶振	SaRonix-eCera™ FK	5.33MHz	±50ppm	-40°C ~ 85°C
FK0610001	Diodes晶振	SaRonix-eCera™ FK	6.14MHz	±25ppm	-20°C ~ 70°C
FK0670001	Diodes晶振	SaRonix-eCera™ FK	6.758MHz	±25ppm	-20°C ~ 70°C
FK0800004	Diodes晶振	SaRonix-eCera™ FK	8MHz	±50ppm	-40°C ~ 85°C
FK0810001	Diodes晶振	SaRonix-eCera™ FK	8.192MHz	±50ppm	-20°C ~ 70°C
FK0810002	Diodes晶振	SaRonix-eCera™ FK	8.192MHz	±25ppm	-20°C ~ 70°C
FK0810003	Diodes晶振	SaRonix-eCera™ FK	8.192MHz	±50ppm	-40°C ~ 85°C
FK1000006	Diodes晶振	SaRonix-eCera™ FK	10MHz	±50ppm	-20°C ~ 70°C
FK1000007	Diodes晶振	SaRonix-eCera™ FK	10MHz	±25ppm	-20°C ~ 70°C
FK1000008	Diodes晶振	SaRonix-eCera™ FK	10MHz	±50ppm	-40°C ~ 85°C
FK1200010	Diodes晶振	SaRonix-eCera™ FK	12MHz	±50ppm	-20°C ~ 70°C
FK1200013	Diodes晶振	SaRonix-eCera™ FK	12MHz	±25ppm	-20°C ~ 70°C
FK1220006	Diodes晶振	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220007	Diodes晶振	SaRonix-eCera™ FK	12.288MHz	±50ppm	-20°C ~ 70°C
FK1220008	Diodes晶振	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220009	Diodes晶振	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1300008	Diodes晶振	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1300010	Diodes晶振	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1430004	Diodes晶振	SaRonix-eCera™ FK	14.318MHz	±50ppm	-20°C ~ 70°C
FK1600003	Diodes晶振	SaRonix-eCera™ FK	16MHz	±25ppm	-20°C ~ 70°C
FK1600004	Diodes晶振	SaRonix-eCera™ FK	16MHz	±50ppm	-20°C ~ 70°C
FK1600005	Diodes晶振	SaRonix-eCera™ FK	16MHz	±50ppm	-40°C ~ 85°C
FK1630003	Diodes晶振	SaRonix-eCera™ FK	16.384MHz	±50ppm	-20°C ~ 70°C
FK1630004	Diodes晶振	SaRonix-eCera™ FK	16.384MHz	±25ppm	-20°C ~ 70°C
FK1630005	Diodes晶振	SaRonix-eCera™ FK	16.384MHz	±50ppm	-40°C ~ 85°C
FK1840001	Diodes晶振	SaRonix-eCera™ FK	18.432MHz	±50ppm	-20°C ~ 70°C
FK1840002	百利通亚陶晶振	SaRonix-eCera™ FK	18.432MHz	±25ppm	-20°C ~ 70°C
FK1840003	Diodes晶振	SaRonix-eCera™ FK	18.432MHz	±50ppm	-40°C ~ 85°C
FK1940001	Diodes晶振	SaRonix-eCera™ FK	19.44MHz	±50ppm	-20°C ~ 70°C
FK1940002	Diodes晶振	SaRonix-eCera™ FK	19.44MHz	±25ppm	-20°C ~ 70°C
FK1940004	Diodes晶振	SaRonix-eCera™ FK	19.44MHz	±50ppm	-40°C ~ 85°C
FK2000022	Diodes晶振	SaRonix-eCera™ FK	20MHz	±50ppm	-20°C ~ 70°C
FK2000023	Diodes晶振	SaRonix-eCera™ FK	20MHz	±25ppm	-20°C ~ 70°C
FK2000025	Diodes晶振	SaRonix-eCera™ FK	20MHz	±50ppm	-40°C ~ 85°C

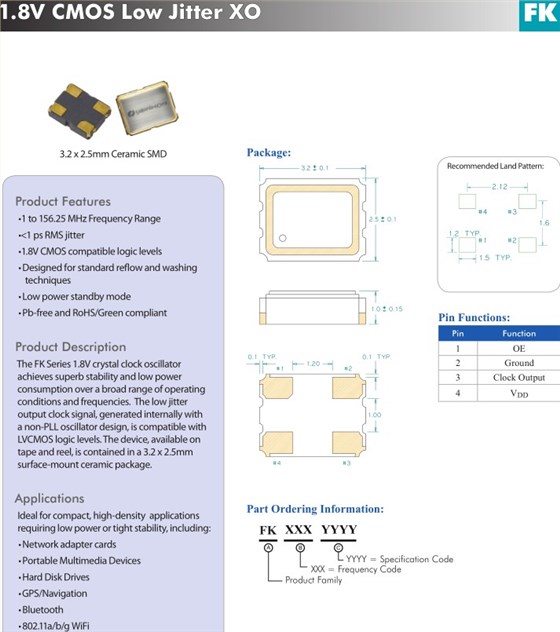

亚陶公司发布编码FK1200013，FK系列1.8V晶体时钟振荡器,石英晶体振荡器,在广泛的工作条件和频率范围内实现了卓越的稳定性和低功耗。低抖动输出时钟信号，内部产生的非PLL振荡器设计，是兼容的LVCMOS逻辑电平。该设备，可用在胶带和卷轴上，包含在一个3.2 x 2.5mm的表面安装陶瓷包装中。

晶体振荡器产品特点:1到156.25 MHz频率范围<1psRMS抖动1.8VCMOS兼容逻辑水平，为标准回流和洗涤技术设计，低功率待机模式无pb和RoHS/绿色兼容。亚陶编码FK1200013是一款支持CMOS低抖动XO振荡器.

应用程序适合紧凑、高密度、需要低功率或紧密稳定性的应用，包括：网络适配器卡便携式多媒体设备硬盘驱动器GPS/导航蓝牙802.11a/b/g WiFi.
