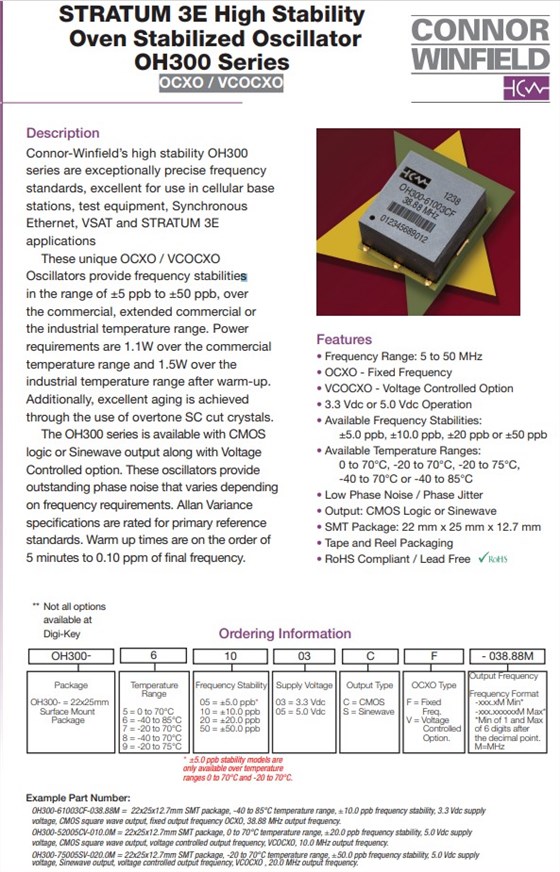

Connor-Winfield康纳-温菲尔德的高稳定性OH300系列是非常精确的频率标准，非常适用于蜂窝基站、测试设备、同步以太网、VSAT和3E层应用。这些独特的OCXO/VCOCXO振荡器提供了在±5ppb到±50ppb范围内的频率稳定性，超过了商业、扩展的商业或工业温度范围。预热后的功率要求为商业温度范围1.1W，超过工业温度范围1.5W。此外，通过使用泛音SC切割晶体，可以实现优良的老化。OH300系列有源晶体可与CMOS逻辑或正弦波输出以及电压控制选项。这些振荡器提供了突出的相位噪声，根据频率要求而变化。艾伦的方差规范被评级为主要的参考标准。预热时间为5分钟到0.10ppm。高稳定性VCOCXO振荡器OH300-70503CF-020.0M非常适用于蜂窝基站
高稳定性VCOCXO振荡器OH300-70503CF-020.0M非常适用于蜂窝基站
OH300晶振特征
频率范围：5MHz至50MHz
OCXO-固定频率
VCOCXO-电压控制选项
3.3 Vdc或5.0 Vdc操作高品质石英晶振
可用频率稳定性：
±5.0磅/平方英寸、±10.0磅/平方毫米、±20磅/平方英尺或±50磅/平方米
可用温度范围：0至70°C、-20至70°C.、-20至75°C，-40至70°C或-40至85°C
低相位噪声/相位抖动
输出：CMOS逻辑或正弦波
SMT封装：22x 25x 12.7mm
磁带和卷轴包装
符合RoHS标准/无铅
| 晶振料号 | 品牌 | 型号 | 频率 | 工作温度 | 包装/封装 |
| OH300-71003SV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CV-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61005CV-030.72M | ConnorWinfield晶振 | OH300 | 30.72MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-71003SV-100.0M | ConnorWinfield晶振 | OH300 | 100MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-70503CF-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CF-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CF-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-70503CF-024.576M | ConnorWinfield晶振 | OH300 | 24.576MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-60503CF-024.576M | ConnorWinfield晶振 | OH300 | 24.576MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CF-020.0M | 康纳温菲尔德晶振 | OH300 | 20MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CF-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CV-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | -40°C ~ 85°C | 7-SMD, No Lead |
