台湾厂商蓝牙智能音频耳机芯片与FA-128爱普生2016无源晶振编码Q22FA1280005400
原相科技PXIPAU1600系列蓝牙芯片符合蓝牙5.0版本规范,是一种EDR/BLE双模立体音频单芯片方案.它采用QFN-405x5mm封装,专为小型蓝牙无线立体耳机设计.其独特的绿波(GreenRadio)专利技术可支持双耳直连、不分主从共享模式、快速角色互换、超低延时、低辐射、低功耗、抗干扰等特点.无源贴片晶振其高音质音频功能支持SBC/mSBC、AAC、10段EQ调整、双麦克风杂音消除.另外,它还内置锂电池充电管理,5-400mA软件可调.TWS耳机蓝牙芯片-台湾厂商达发科技/络达AB1536瑞昱REALTEKRTL8773B原相科技PXIPAU1600瑞昱RTL8773B是一款主动式降噪蓝牙5双模音频芯片,适用于蓝牙智能耳机方案.除支持最新蓝牙规格外,它还支持HybridANC主动降噪架构,具有听音通话超低功耗优势,可实现个性化高清音质.它支持数字混响ANC,降噪效果最高可达40Db；HybridANC打开时功耗低于1Ma.

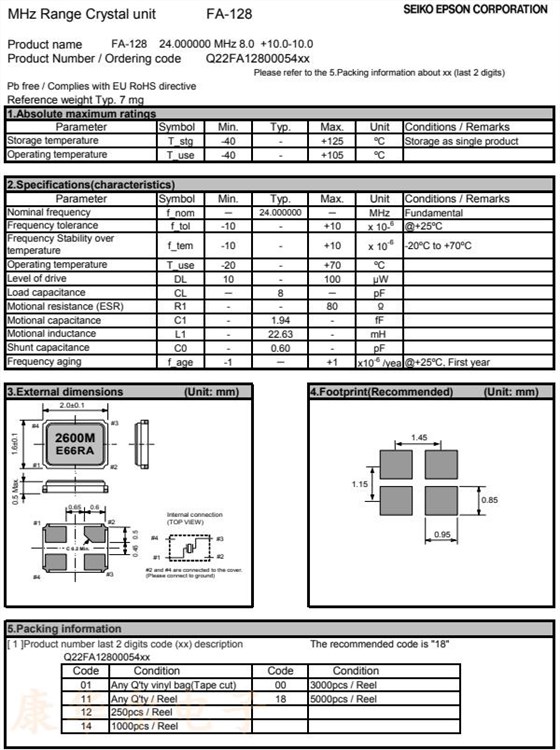

FA-128爱普生2016无源晶振编码Q22FA1280005400,台湾厂商蓝牙智能音频耳机晶振
| 爱普生晶振编码 | 长x宽x高 | 型号 | 石英晶振频率 | 负载 | 频率25°C | 频率公差 | 工作温度范围 |
| Q22FA1280005300 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA1280005400 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA1280006100 | 2x1.6x0.5mm | FA-128 | 44.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280006200 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA1280006400 | 2x1.6x0.5mm | FA-128 | 37.400000MHz | 18pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280006700 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280007000 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 7pF | +/-10ppm | +/-15ppm | -20to+70°C |
| Q22FA1280008500 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280008900 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 8pF | +/-30ppm | +/-50ppm | -30to+85°C |
| Q22FA1280009000 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12pF | +/-10ppm | +/-20ppm | -40to+85°C |
| Q22FA1280009100 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA1280009200 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| Q22FA1280009400 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280009900 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 8pF | +/-10ppm | -11/+13ppm | -30to+85°C |
| Q22FA1280010000 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 8pF | +/-10ppm | -11/+13ppm | -30to+85°C |
| Q22FA1280010100 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| Q22FA1280010500 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280010700 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
| Q22FA1280010800 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280011200 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+75°C |
| Q22FA1280011400 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280011600 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 12pF | +/-15ppm | +/-20ppm | -20to+70°C |
| Q22FA1280011900 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 10pF | +/-20ppm | +/-20ppm | -20to+75°C |
| Q22FA1280012000 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280012100 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 15pF | +/-10ppm | +/-18ppm | -40to+85°C |
| Q22FA1280012500 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280012600 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280012700 | 2x1.6x0.5mm | FA-128 | 24.576000MHz | 10pF | +/-30ppm | +/-20ppm | -20to+75°C |
| Q22FA1280012900 | 2x1.6x0.5mm | FA-128 | 27.120000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280013100 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 9pF | +/-10ppm | +/-9ppm | -20to+75°C |
| Q22FA1280013200 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 15pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA1280013500 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 12pF | +/-10ppm | +/-18ppm | -40to+85°C |
| Q22FA1280013700 | 2x1.6x0.5mm | FA-128 | 32.000000MHz | 9pF | +/-20ppm | +/-30ppm | -30to+85°C |
| Q22FA1280014000 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 9pF | +/-10ppm | +/-20ppm | -40to+85°C |
| Q22FA1280014100 | 2x1.6x0.5mm | FA-128 | 20.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA1280014300 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 6pF | +/-50ppm | +/-30ppm | -30to+85°C |
| Q22FA1280014500 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280014600 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280014700 | 2x1.6x0.5mm | FA-128 | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280014800 | 2x1.6x0.5mm | FA-128 | 26.000000MHz | 8pF | +/-10ppm | +/-12ppm | -30to+85°C |
| Q22FA1280014900 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 8pF | +/-10ppm | +/-18ppm | -40to+85°C |
| Q22FA1280015000 | 2x1.6x0.5mm | FA-128 | 48.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
| Q22FA1280015200 | 2x1.6x0.5mm | FA-128 | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280015600 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 6pF | +/-30ppm | +/-30ppm | -30to+85°C |
| Q22FA1280015800 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280015900 | 2x1.6x0.5mm | FA-128 | 27.000000MHz | 12pF | +/-27ppm | +/-50ppm | -20to+70°C |
| Q22FA1280016000 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| Q22FA1280016600 | 2x1.6x0.5mm | FA-128 | 25.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| Q22FA1280016800 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 12.5pF | +/-10ppm | +/-30ppm | -20to+75°C |
| Q22FA1280016900 | 2x1.6x0.5mm | FA-128 | 24.000000MHz | 7pF | +/-10ppm | +/-30ppm | -20to+75°C |
FA-128爱普生2016无源晶振编码Q22FA1280005400,台湾厂商蓝牙智能音频耳机晶振
