GPS模块主板会使用到晶振,GPS主板是由RF射频芯片,基带芯片和核心CPU,晶振且加上相关外围电路而组成的一个集成电路,其所有的功能一般都集成在一块PCB主板上,因此要求PCB的尺寸较小同时需要极好的工作稳定性,因此使用一款高稳定性晶振保证GPS定位系统的高精准性,需要一颗TCXO温补26MHz晶振,为了满足GPS系统的稳定性,同时又保证小型化设计,针对GPS模块市场的需求EPSON爱普生晶振公司推出的型号TG-5006CG,小体积温补晶体振荡器TCXO系列编码X1G004211000200晶振,具有高精度,高稳定性的优势,不仅可以运用于GPS的设计,还可用射频和无线通信设备,包括CDMA,WCDMA,LTE,WiMAX等.

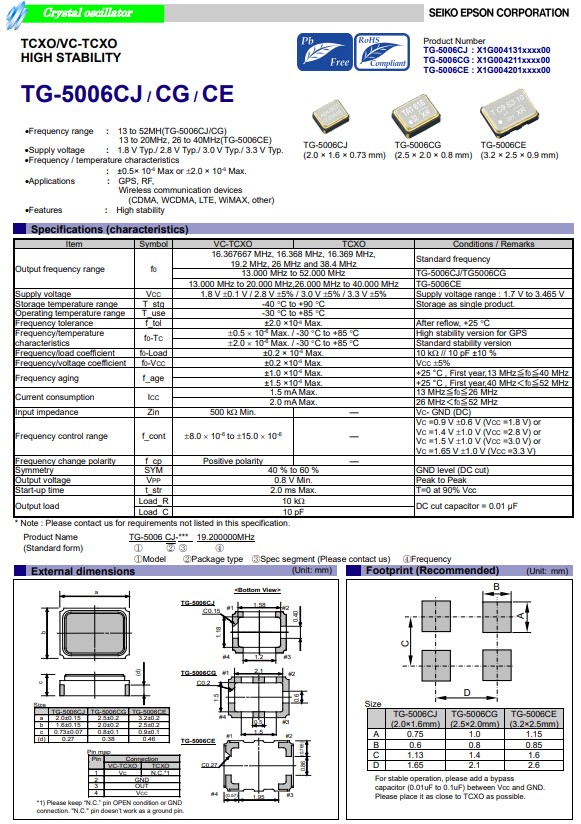

GPS模块主板专用晶振TG-5006CG编码X1G004211000200
| 产品编码 |
 型号
|
 频率
|
 有源晶体
|
 输出波
|
 电源电压
|
 精度
|
| X1G004211000100 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.660 to 2.940 V | +/-2.0 ppm |
| X1G004211000200 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211000300 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211000400 | TG-5006CG | 16.368000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211000500 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 1.900 V | +/-2.0 ppm |
| X1G004211000600 | TG-5006CG | 16.367667MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-1.0 ppm |
| X1G004211000800 | TG-5006CG | 16.369000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211001100 | TG-5006CG | 38.400000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211001500 | TG-5006CG | 16.369000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211001600 | TG-5006CG | 19.200000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211002700 | TG-5006CG | 30.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211003100 | TG-5006CG | 24.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm |
| X1G004211003300 | TG-5006CG | 49.999800MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 3.465 V | +/-2.0 ppm |
| X1G004211003400 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.520 to 3.080 V | +/-2.0 ppm |
| X1G004211003700 | TG-5006CG | 24.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 3.465 V | +/-1.5 ppm |
爱普生晶振料号X1G004211000200温补晶振其工作电压2.850V至3.150V范围,温补晶振,输出频率在经过回流焊之后,其频率变化不超过±2.0ppm,此款TG-5006CG温补振荡器具有超小型封装可为客户节省设计空间,TG-5006CG温补晶振的输出频率范围为13MHz至52MHz,多种频率输出为用户的设计提供了更加灵活的选择，该款TG-5006CG温补晶体振荡器还具有快速启动时间,其振荡启动时间最大仅为2.0ms,TG-5006CG晶振具有以下优势频率随温度变化稳定度可达±0.5ppm,在经过回流焊后的偏差小于±2.0ppm,符合RoHS标准要求。
