Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器,

Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器,Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器,

产品简介


Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器,尺寸7.0×5.0mm，频率400MHZ，输出逻辑LVPECL，电压3.3V，频率稳定性7ppm，欧美进口晶振，思佳讯差分晶振，Skyworks有源振荡器，六脚差分振荡器，石英差分振荡器，7050mm差分晶振，差分晶体振荡器，LVPECL差分输出晶振，贴片差分振荡器，有源差分晶振，低电压差分晶振，高频差分晶振，高品质差分晶振，高性能差分晶振，低损耗差分晶振，低功耗差分晶振，低相位差分晶振，低抖动差分晶振，低相噪差分晶振，小型设备差分晶振，测试测量差分晶振，仪器仪表专用晶振，信号发生器差分晶振，航空航天差分晶振，具有良好的稳定性能以及耐压性能。

振荡器产品特别适合用于小型设备，测试测量，仪器仪表，信号发生器，航空航天等领域。Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器.

产品详情

Japan1

Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器,尺寸7.0×5.0mm，频率400MHZ，输出逻辑LVPECL，电压3.3V，频率稳定性7ppm，欧美进口晶振，思佳讯差分晶振，Skyworks有源振荡器，六脚差分振荡器，石英差分振荡器，7050mm差分晶振，差分晶体振荡器，LVPECL差分输出晶振，贴片差分振荡器，有源差分晶振，低电压差分晶振，高频差分晶振，高品质差分晶振，高性能差分晶振，低损耗差分晶振，低功耗差分晶振，低相位差分晶振，低抖动差分晶振，低相噪差分晶振，小型设备差分晶振，测试测量差分晶振，仪器仪表专用晶振，信号发生器差分晶振，航空航天差分晶振，具有良好的稳定性能以及耐压性能。

振荡器产品特别适合用于小型设备，测试测量，仪器仪表，信号发生器，航空航天等领域。Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器.

Japan2Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML
400
MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 VOH 0.8 x VDD — VDD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %

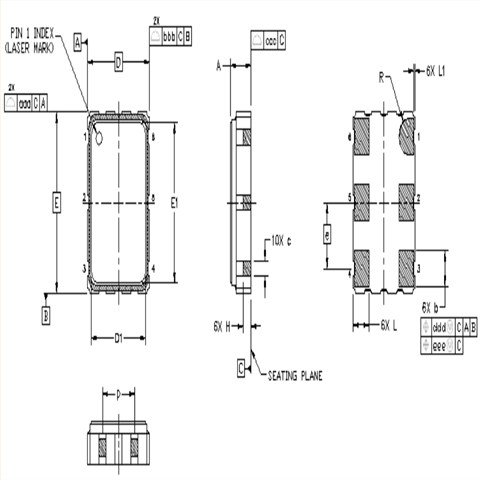

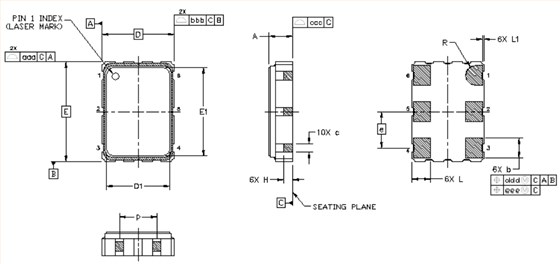

Japan3Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器 尺寸图

Si590 Si591 7050

Si591信号发生器晶振,591AD400M000DGR,Skyworks石英振荡器

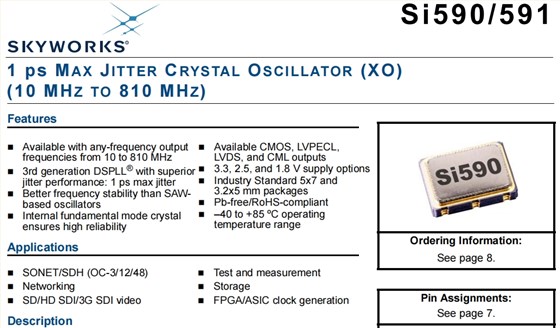

产品特性：

可用于任何频率输出频率从10到810兆赫

具有卓越性能的第三代DSPLL®抖动性能：最大抖动1ps

比基于SAW的振荡器具有更好的频率稳定性

内部基模晶体确保高可靠性

可用的CMOS、LVPECL差分输出晶振、LVDS差分晶体和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7和3.2x5mm包装

无铅/符合RoHS

–40至+85ºC运行温度范围

Si590 Si591 1 Si590 Si591 2

Mfr Part # Mfr Description Series Frequency Output
591FA000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si591 274 kHz LVDS
591FA644M531DG Skyworks有源晶振 XTAL OSC XO 644.5310MHZ LVDS SMD Si591 644.531 MHz LVDS
591NA810M000DG Skyworks晶振现货库存 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 810 MHz LVDS
591ME810M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 810 MHz LVPECL
591AB287M500DG Skyworks有源晶振 XTAL OSC XO 287.5000MHZ LVPECL Si591 287.5 MHz LVPECL
591AB622M080DG Skyworks有源晶振 XTAL OSC XO 622.0800MHZ LVPECL Si591 622.08 MHz LVPECL
591AB644M531DG Skyworks有源晶振 XTAL OSC XO 644.5310MHZ LVPECL Si591 644.531 MHz LVPECL
591AD311M040DG Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVPECL Si591 311.04 MHz LVPECL
591AD312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si591 312.5 MHz LVPECL
591AD360M000DG Skyworks有源晶振 XTAL OSC XO 360.0000MHZ LVPECL Si591 360 MHz LVPECL
591AD400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVPECL Si591 400 MHz LVPECL
591AD425M000DG Skyworks有源晶振 XTAL OSC XO 425.0000MHZ LVPECL Si591 425 MHz LVPECL
591BB000127DG Skyworks有源晶振 XTAL OSC XO 127.0000KHZ LVDS SMD Si591 127 kHz LVDS
591BB625M000DG Skyworks有源晶振 XTAL OSC XO 625.0000MHZ LVDS SMD Si591 625 MHz LVDS
591BD225M000DG Skyworks有源晶振 XTAL OSC XO 225.0000MHZ LVDS SMD Si591 225 MHz LVDS
591BD283M000DG Skyworks有源晶振 XTAL OSC XO 283.0000MHZ LVDS SMD Si591 283 MHz LVDS
591BD312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si591 312.5 MHz LVDS
591BD322M266DG Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si591 322.266 MHz LVDS
591BD400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si591 400 MHz LVDS
591BD435M000DG Skyworks有源晶振 XTAL OSC XO 435.0000MHZ LVDS SMD Si591 435 MHz LVDS
591FD000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si591 274 kHz LVDS
591FD350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si591 350 MHz LVDS
591FD400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si591 400 MHz LVDS
591MB311M040DG Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVPECL Si591 311.04 MHz LVPECL
591MD307M200DG Skyworks有源晶振 XTAL OSC XO 307.2000MHZ LVPECL Si591 307.2 MHz LVPECL
591AB287M500DGR Skyworks有源晶振 XTAL OSC XO 287.5000MHZ LVPECL Si591 287.5 MHz LVPECL
591AB622M080DGR Skyworks有源晶振 XTAL OSC XO 622.0800MHZ LVPECL Si591 622.08 MHz LVPECL
591AB644M531DGR Skyworks有源晶振 XTAL OSC XO 644.5310MHZ LVPECL Si591 644.531 MHz LVPECL
591AD311M040DGR Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVPECL Si591 311.04 MHz LVPECL
591AD312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si591 312.5 MHz LVPECL
591AD360M000DGR Skyworks有源晶振 XTAL OSC XO 360.0000MHZ LVPECL Si591 360 MHz LVPECL
591AD400M000DGR Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVPECL Si591 400 MHz LVPECL
591AD425M000DGR Skyworks有源晶振 XTAL OSC XO 425.0000MHZ LVPECL Si591 425 MHz LVPECL
591BB000127DGR Skyworks有源晶振 XTAL OSC XO 127.0000KHZ LVDS SMD Si591 127 kHz LVDS
591BB625M000DGR Skyworks有源晶振 XTAL OSC XO 625.0000MHZ LVDS SMD Si591 625 MHz LVDS
591BD225M000DGR Skyworks有源晶振 XTAL OSC XO 225.0000MHZ LVDS SMD Si591 225 MHz LVDS
591BD283M000DGR Skyworks有源晶振 XTAL OSC XO 283.0000MHZ LVDS SMD Si591 283 MHz LVDS
591BD312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si591 312.5 MHz LVDS
591BD322M266DGR Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si591 322.266 MHz LVDS
591BD400M000DGR Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si591 400 MHz LVDS
591BD435M000DGR Skyworks有源晶振 XTAL OSC XO 435.0000MHZ LVDS SMD Si591 435 MHz LVDS
591FD000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si591 274 kHz LVDS
591FD350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si591 350 MHz LVDS
591FD400M000DGR Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si591 400 MHz LVDS
591MB311M040DGR Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVPECL Si591 311.04 MHz LVPECL
591MD307M200DGR Skyworks有源晶振 XTAL OSC XO 307.2000MHZ LVPECL Si591 307.2 MHz LVPECL
591AB000127DGR Skyworks有源晶振 XTAL OSCILLATOR Si591 644.53125 MHz LVPECL
591FD004690DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 508.8875 MHz LVDS
591AB670M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 670 MHz LVPECL
591ED400M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 400 MHz LVPECL
591BD404M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 404 MHz LVDS
591AF000127DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 127 MHz LVPECL
591FF625M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 625 MHz LVDS
591BF625M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 625 MHz LVDS
591AF670M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 670 MHz LVPECL
591AC700M000DGR Skyworks有源晶振 XTAL OSC XO 700.0000MHZ LVPECL Si591 700 MHz LVPECL
591BC600M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si591 600 MHz LVDS
591EG700M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 700 MHz LVPECL
591BG644M531DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 644.531 MHz LVDS
591FG000127DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 127 MHz LVDS
591BC622M080DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 622.08 MHz LVDS
591AB000127DG Skyworks有源晶振 XTAL OSCILLATOR Si591 644.53125 MHz LVPECL
591BD404M000DG Skyworks Electronics DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 404 MHz LVDS
591FD004690DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 508.8875 MHz LVDS
591AB670M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 670 MHz LVPECL
591ED400M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 400 MHz LVPECL
591AF000127DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 127 MHz LVPECL
591AF670M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si591 670 MHz LVPECL
