515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器，尺寸7.0×5.0mm，频率240MHZ，输出逻辑LVPECL，电压3.3V，频率稳定性20ppm，欧美进口晶振，思佳讯有源LVPECL差分晶振，Skyworks压控振荡器，LVPECL输出晶振，差分晶体振荡器，7050mm差分晶振，LVPECL差分晶振，贴片差分晶振，压控晶体振荡器，压控差分晶振，六脚差分振荡器，石英差分振荡器，高频差分晶振，低电压差分晶振，低耗能差分晶振，低功耗差分晶振，低相位差分晶振，高品质差分晶振，高性能差分晶振，可视化智能家居专用差分晶振，仪器仪表差分晶振，广播视频差分晶振，交换机差分晶振，电信应用差分晶振，无线路由器差分晶振，具有高性能低电压低抖动的特点。
VCXO晶振产品非常适合用于可视化智能家居，仪器仪表，广播视频，交换机振，电信应用，无线路由器等领域。515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器.
515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Supply Voltage | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 24 | 29 | mA | |||||||||||||||||||
|
LVDS (output enabled) |
— | 22 | 26 | mA | |||||||||||||||||||||
|
LVPECL (output enabled) |
— | 42 | 46 | mA | |||||||||||||||||||||
|
HCSL (output enabled) |
— | 44 | 47 | mA | |||||||||||||||||||||
|
Tristate (output disabled) |
— | — | 22 | mA | |||||||||||||||||||||
| OE “1” Setting | VIH | See Note | 0.80 x VDD | — | — | V | |||||||||||||||||||
| OE “0” Setting | VIL | See Note | — | — | 0.20 x VDD | V | |||||||||||||||||||
|
OE Internal Pull-Up/ Pull-Down Resistor* |
RI | — | 45 | — | kΩ | ||||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | ||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Control Voltage Range | VC | 0.1 x VDD | VDD/2 | 0.9 x VDD | V | ||||||||||||||||||||
|
Control Voltage Tuning Slope (10 to 90% VDD) |
Kv |
Positive slope, ordering option |
60, 90, 120, 150 | ppm/V | |||||||||||||||||||||
| Kv Variation | Kv_var | — | — | ±10 | % | ||||||||||||||||||||
| Control Voltage Linearity | LVC | BSL | –5 | ±1 | +5 | % | |||||||||||||||||||
| Modulation Bandwidth | BW | — | 10 | — | kHz | ||||||||||||||||||||
| Vc Input Impedance | ZVC | — | 100 | — | kΩ | ||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | |||||||||||||||||||
| FO | LVDS/LVPECL/HCSL |
|
240 |
|
MHz | ||||||||||||||||||||
| Temperature Stability | ST | TA= –40 to +85oC | –20 | — | +20 | ppm | |||||||||||||||||||
| Aging | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm | |||||||||||||||||||
| Minimum Absolute Pull Range | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | |||||||||||||||||||||
| Startup Time | TSU |
Minimum VDDto output fre- quency (FO) within specification |
— | — | 10 | ms | |||||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | |||||||||||||||||||
| FO< 10 MHz | 40 | µs | |||||||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | |||||||||||||||||||
| FO< 10 MHz | 60 | µs | |||||||||||||||||||||||

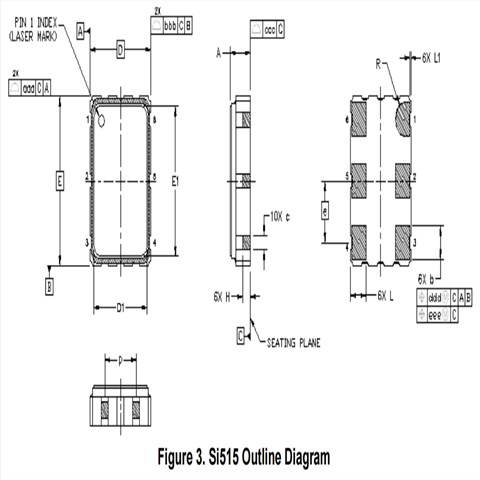

515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器 尺寸图
515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器
OSC晶振产品特性：
支持来自的任何频率100kHz至250MHz
低抖动操作
交付周期短：<2周
AT切基模晶体确保高可靠性/低老化
高电源噪声抑制
1%控制电压线性
可用CMOS、LVPECL、LVDS，和HCSL输出
可选集成1:2 CMOS扇出缓存
3.3和2.5 V电源选项
行业标准5x7、3.2x5和2.5x3.2 mm包装
无铅/符合RoHS
可选择的Kv（60、90、120，150 ppm/V）
| Mfr Part # | 晶振厂家 | Description | Series | Frequency | Output | Voltage - Supply |
| 515BCA148M500AAGR | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si515 | 148.5 MHz | LVDS | 3.3V |
| 515BCA169M406AAGR | Skyworks有源晶振 | XTAL OSC VCXO 169.4060MHZ LVDS | Si515 | 169.406 MHz | LVDS | 3.3V |
| 515EDA156M250AAGR | Skyworks有源晶振 | XTAL OSC VCXO 156.2500MHZ LVPECL | Si515 | 156.25 MHz | LVPECL | 2.5V |
| 515ACA144M575AAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 144.575 MHz | LVPECL | 3.3V |
| 515BAA156M250AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVDS | 3.3V |
| 515BCA156M250AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVDS | 3.3V |
| 515ACA144M390AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 144.39 MHz | LVPECL | 3.3V |
| 515BBA156M250AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 156.25 MHz | LVDS | 3.3V |
| 515ACA40M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 40 MHz | LVPECL | 3.3V |
| 515BCB125M000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 125 MHz | LVDS | 3.3V |
| 515FCA26M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 26 MHz | LVDS | 2.5V |
| 515ABA40M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 40 MHz | LVPECL | 3.3V |
| 515AAA125M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVPECL | Si515 | 125 MHz | LVPECL | 3.3V |
| 515AAA25M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 25.0000MHZ LVPECL | Si515 | 25 MHz | LVPECL | 3.3V |
| 515AAA7M10000AAG | Skyworks有源晶振 | XTAL OSC VCXO 7.1000MHZ LVPECL | Si515 | 7.1 MHz | LVPECL | 3.3V |
| 515ABA25M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 25.0000MHZ LVPECL | Si515 | 25 MHz | LVPECL | 3.3V |
| 515ABA80M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 80.0000MHZ LVPECL | Si515 | 80 MHz | LVPECL | 3.3V |
| 515ACA106M250AAG | Skyworks有源晶振 | XTAL OSC VCXO 106.2500MHZ LVPECL | Si515 | 106.25 MHz | LVPECL | 3.3V |
| 515ACA10M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVPECL | Si515 | 10 MHz | LVPECL | 3.3V |
| 515ACA10M7000AAG | Skyworks有源晶振 | XTAL OSC VCXO 10.7000MHZ LVPECL | Si515 | 10.7 MHz | LVPECL | 3.3V |
| 515ACA54M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 54.0000MHZ LVPECL | Si515 | 54 MHz | LVPECL | 3.3V |
| 515ACAM100000AAG | Skyworks有源晶振 | XTAL OSC VCXO 100.0000KHZ LVPECL | Si515 | 100 kHz | LVPECL | 3.3V |
| 515ACB10M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVPECL | Si515 | 10 MHz | LVPECL | 3.3V |
| 515ACB44M1000AAG | Skyworks有源晶振 | XTAL OSC VCXO 44.1000MHZ LVPECL | Si515 | 44.1 MHz | LVPECL | 3.3V |
| 515ADA50M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 50.0000MHZ LVPECL | Si515 | 50 MHz | LVPECL | 3.3V |
| 515BAA125M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si515 | 125 MHz | LVDS | 3.3V |
| 515BAA25M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 25.0000MHZ LVDS | Si515 | 25 MHz | LVDS | 3.3V |
| 515BBA100M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 100.0000MHZ LVDS | Si515 | 100 MHz | LVDS | 3.3V |
| 515BBA122M880AAG | Skyworks有源晶振 | XTAL OSC VCXO 122.8800MHZ LVDS | Si515 | 122.88 MHz | LVDS | 3.3V |
| 515BBA70M6560AAG | Skyworks有源晶振 | XTAL OSC VCXO 70.6560MHZ LVDS | Si515 | 70.656 MHz | LVDS | 3.3V |
| 515BBA74M2500AAG | Skyworks有源晶振 | XTAL OSC VCXO 74.2500MHZ LVDS | Si515 | 74.25 MHz | LVDS | 3.3V |
| 515BBB70M6560AAG | Skyworks有源晶振 | XTAL OSC VCXO 70.6560MHZ LVDS | Si515 | 70.656 MHz | LVDS | 3.3V |
| 515BCA100M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 100.0000MHZ LVDS | Si515 | 100 MHz | LVDS | 3.3V |
| 515BCA105M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 105.0000MHZ LVDS | Si515 | 105 MHz | LVDS | 3.3V |
| 515BCA106M250AAG | Skyworks有源晶振 | XTAL OSC VCXO 106.2500MHZ LVDS | Si515 | 106.25 MHz | LVDS | 3.3V |
| 515BCA27M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 27.0000MHZ LVDS | Si515 | 27 MHz | LVDS | 3.3V |
| 515BDA30M7200AAG | Skyworks有源晶振 | XTAL OSC VCXO 30.7200MHZ LVDS | Si515 | 30.72 MHz | LVDS | 3.3V |
| 515EDA125M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVPECL | Si515 | 125 MHz | LVPECL | 2.5V |
| 515EDA50M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 50.0000MHZ LVPECL | Si515 | 50 MHz | LVPECL | 2.5V |
| 515FCA10M0000AAG | Skyworks有源晶振 | XTAL OSC VCXO 10.0000MHZ LVDS | Si515 | 10 MHz | LVDS | 2.5V |
| 515ABA70M6560AAG | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 70.656 MHz | LVPECL | 3.3V |
| 515BCA20M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED | Si515 | 20 MHz | LVDS | 3.3V |
| 515AAB174M703AAGR | Skyworks有源晶振 | XTAL OSC VCXO 174.7030MHZ LVPECL | Si515 | 174.703 MHz | LVPECL | 3.3V |
| 515ABA170M240AAGR | Skyworks有源晶振 | XTAL OSC VCXO 170.2400MHZ LVPECL | Si515 | 170.24 MHz | LVPECL | 3.3V |
| 515ACB240M000AAGR | Skyworks有源晶振 | XTAL OSC VCXO 240.0000MHZ LVPECL | Si515 | 240 MHz | LVPECL | 3.3V |
| 515ADB173M370AAGR | Skyworks有源晶振 | XTAL OSC VCXO 173.3700MHZ LVPECL | Si515 | 173.37 MHz | LVPECL | 3.3V |
| 515BCA176M500AAGR | Skyworks有源晶振 | XTAL OSC VCXO 176.5000MHZ LVDS | Si515 | 176.5 MHz | LVDS | 3.3V |
| 515BCA236M500AAGR | Skyworks有源晶振 | XTAL OSC VCXO 236.5000MHZ LVDS | Si515 | 236.5 MHz | LVDS | 3.3V |
| 515ECA200M000AAGR | Skyworks有源晶振 | XTAL OSC VCXO 200.0000MHZ LVPECL | Si515 | 200 MHz | LVPECL | 2.5V |
| 515AAA250M000AAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 250 MHz | LVPECL | 3.3V |
| 515ABA250M000AAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 250 MHz | LVPECL | 3.3V |
| 515BCA200M000BAGR | Skyworks有源晶振 | XTAL OSC VCXO 200.0000MHZ LVDS | Si515 | 200 MHz | LVDS | 3.3V |
| 515AAB174M703AAG | Skyworks有源晶振 | XTAL OSC VCXO 174.7030MHZ LVPECL | Si515 | 174.703 MHz | LVPECL | 3.3V |
| 515ABA170M240AAG | Skyworks有源晶振 | XTAL OSC VCXO 170.2400MHZ LVPECL | Si515 | 170.24 MHz | LVPECL | 3.3V |
| 515ACB240M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 240.0000MHZ LVPECL | Si515 | 240 MHz | LVPECL | 3.3V |
| 515ADB173M370AAG | Skyworks有源晶振 | XTAL OSC VCXO 173.3700MHZ LVPECL | Si515 | 173.37 MHz | LVPECL | 3.3V |
| 515BCA176M500AAG | Skyworks有源晶振 | XTAL OSC VCXO 176.5000MHZ LVDS | Si515 | 176.5 MHz | LVDS | 3.3V |
| 515BCA236M500AAG | Skyworks有源晶振 | XTAL OSC VCXO 236.5000MHZ LVDS | Si515 | 236.5 MHz | LVDS | 3.3V |
| 515ECA200M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 200.0000MHZ LVPECL | Si515 | 200 MHz | LVPECL | 2.5V |
| 515AAA250M000AAG | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 250 MHz | LVPECL | 3.3V |
| 515ABA250M000AAG | Skyworks有源晶振 | XTAL OSCILLATOR | Si515 | 250 MHz | LVPECL | 3.3V |
| 515AAB167M332AAG | Skyworks有源晶振 | XTAL OSC VCXO 167.3320MHZ LVPECL | Si515 | 167.332 MHz | LVPECL | 3.3V |
| 515ABA155M520AAG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si515 | 155.52 MHz | LVPECL | 3.3V |
| 515ACA148M350AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.3500MHZ LVPECL | Si515 | 148.35 MHz | LVPECL | 3.3V |
| 515ACA155M520AAG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si515 | 155.52 MHz | LVPECL | 3.3V |
| 515ACA156M254AAG | Skyworks Crystal | XTAL OSC VCXO 156.2540MHZ LVPECL | Si515 | 156.254 MHz | LVPECL | 3.3V |
| 515BAA148M000AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.0000MHZ LVDS | Si515 | 148 MHz | LVDS | 3.3V |
| 515BAA148M500AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si515 | 148.5 MHz | LVDS | 3.3V |
| 515BBA148M350AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.3500MHZ LVDS | Si515 | 148.35 MHz | LVDS | 3.3V |
| 515BBA148M500AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si515 | 148.5 MHz | LVDS | 3.3V |
| 515BCA134M100AAG | Skyworks有源晶振 | XTAL OSC VCXO 134.1000MHZ LVDS | Si515 | 134.1 MHz | LVDS | 3.3V |
| 515BCA144M795AAG | Skyworks有源晶振 | XTAL OSC VCXO 144.7950MHZ LVDS | Si515 | 144.795 MHz | LVDS | 3.3V |
| 515BCA148M500AAG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si515 | 148.5 MHz | LVDS | 3.3V |
| 515BCA169M406AAG | Skyworks有源晶振 | XTAL OSC VCXO 169.4060MHZ LVDS | Si515 | 169.406 MHz | LVDS | 3.3V |
| 515EDA156M250AAG | Skyworks有源晶振 | XTAL OSC VCXO 156.2500MHZ LVPECL | Si515 | 156.25 MHz | LVPECL | 2.5V |
