8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振

8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振

产品简介

8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振,该型号属于8Q系列晶体谐振器,尺寸1.6×1.2mm超薄封装,32MHz基频,负载电容8pF,频率公差±10ppm,工作温度-20℃~70℃,ESR内阻低,起振稳定.体积小巧,适合PCB空间紧张的小型化产品,适配无铅回流焊SMT工艺,符合RoHS环保标准,是BLE蓝牙,TWS耳机,智能手环晶振,手表等穿戴设备主流基准时钟.TXC台厂工艺成熟,批次一致性高,频偏控制优异,有效降低无线模组丢包问题.康华尔原厂渠道供货,可提供规格书,样品测试,支持小批量试产与长期项目配套.欢迎来电咨询:0755-27838351.


产品详情

Japan1

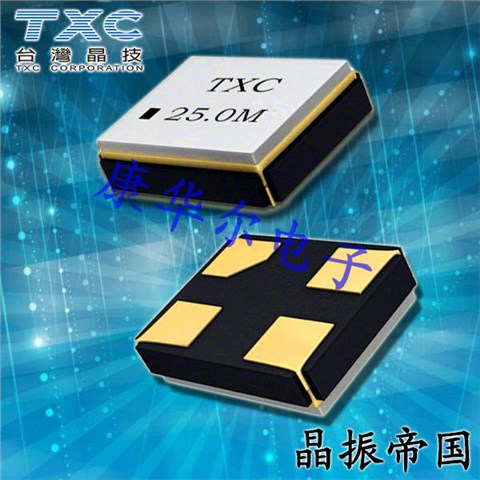

8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振

8Q-32.000MEEV-T是台湾TXC原装1612微型石英贴片无源晶振,康华尔电子作为TXC晶振代理,现货供应,品质可追溯.这款微型谐振器采用1.6×1.2mm贴片封装,32MHz基础频率,±10ppm频率精度,负载电容8pF,温区-20℃~70℃,晶体切割工艺稳定,低ESR,起振可靠.封装轻薄坚固,适合自动化贴片生产,经过原厂温循,振动,跌落可靠性测试,适合便携数码,微型摄像头,无线遥控器,便携检测设备等小型消费硬件.在狭小空间设计方案中优势明显,兼顾精度与稳定性.康华尔专注台系进口晶振供应链,常备库存,快速出样,支持长期框架订单,配套原厂资料与选型支持,帮助客户规避物料断供风险.欢迎来电:0755-27838351.

Japan2

8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振

品牌 TXC晶技
编码 8Q-32.000MEEV-T
型号 8Q
频率 32M
精度 ±10ppm
负载 8pF
尺寸 1612mm晶振
工作温度 -20+70°C

Japan3

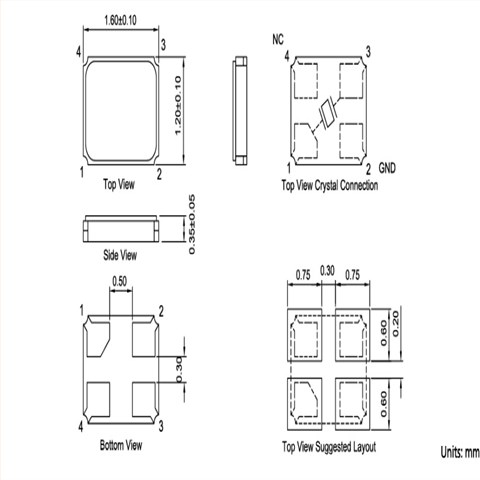

8Q-32.000MEEV-T,1612石英贴片晶振,TXC台产晶振

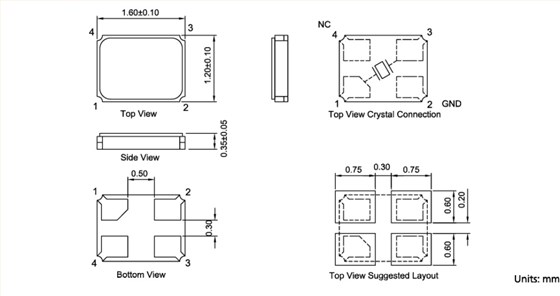

8Q 1612

更多相关晶振参考

编码 品牌 系列 频率 频率容差 负载电容
Q 40.0-JXS11-8-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 8pF
Q 26.0-JXS11-12-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 12pF
Q 32.0-JXS11-8-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 8pF
Q 50.0-JXS11-8-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 8pF
Q 32.0-JXS11-10-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 10pF
Q 27.120-JXS11-8-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 10pF
Q 40.0-JXS11-12-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 12pF
Q 40.0-JXS11-10-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 10pF
Q 25.0-JXS11-12-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 12pF
Q 25.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 12pF
Q 50.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 8pF
Q 50.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 10pF
Q 26.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 12pF
Q 38.40-JXS11-12-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 12pF
Q 25.0-JXS11-8-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 8pF
Q 27.120-JXS11-12-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 12pF
Q 24.0-JXS11-10-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 10pF
Q 38.40-JXS11-10-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 10pF
Q 38.40-JXS11-8-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 8pF
Q 50.0-JXS11-10-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 10pF
Q 40.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 8pF
Q 27.120-JXS11-10-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 10pF
Q 27.0-JXS11-12-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 12pF
Q 26.0-JXS11-10-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 10pF
Q 38.40-JXS11-10-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 10pF
Q 27.0-JXS11-10-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 10pF
Q 30.0-JXS11-12-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 12pF
Q 27.0-JXS11-8-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 8pF
Q 30.0-JXS11-10-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 10pF
Q 26.0-JXS11-8-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 8pF
Q 32.0-JXS11-12-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 12pF
Q 25.0-JXS11-10-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 10pF
Q 24.0-JXS11-12-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 12pF
Q 24.0-JXS11-8-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 8pF
Q 30.0-JXS11-8-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 8pF
Q 50.0-JXS11-12-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 12pF
Q 30.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 12pF
Q 27.120-JXS11-12-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 12pF
Q 26.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 8pF
Q 40.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 12pF
Q 30.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 10pF
Q 27.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 12pF
Q 24.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 8pF
Q 24.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 10pF
Q 24.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 12pF
Q 38.40-JXS11-8-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 8pF
Q 40.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 10pF
Q 25.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 10pF
Q 25.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 8pF
Q 30.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 8pF
Q 26.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 10pF
Q 32.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 8pF
Q 38.40-JXS11-12-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 12pF
Q 27.120-JXS11-10-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 10pF
Q 27.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 8pF
Q 27.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 10pF
Q 32.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 12pF

Japan5
