航空航天6G晶振,Statek斯塔克SMD晶振,CX18SCSM1-45.0M,50/50/-/I,6pF，尺寸1.6x1.0mm，频率45MHZ，美国进口晶振，斯塔克无源晶振，两脚贴片晶振，陶瓷晶振，音叉谐振器，无源贴片晶振，1610mm小尺寸晶振，SMD晶振，无源晶振，水晶振动子，轻薄型晶振，低损耗晶振，低成本晶振，高性能晶振，高品质晶振，航空航天专用晶振，军事应用晶振，航空电子指示器晶振，仪器设备晶振，数据通信晶振，发射器晶振，脉冲发电机专用晶振，具有低成本轻薄小的特点。

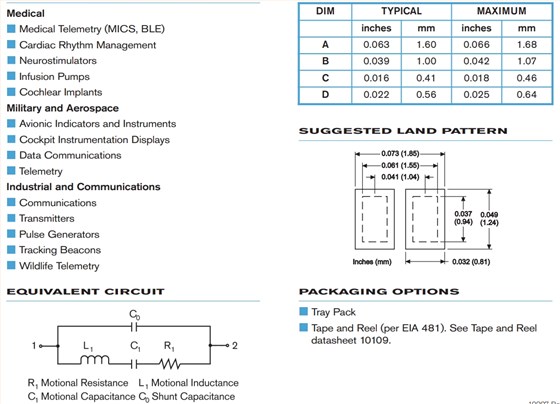

贴片晶振产品应用场景比较广泛，适合用于军事和航空航天，航空电子指示器和仪器，座舱仪表显示，数据通信，遥测工业及通讯，通信，发射器，脉冲发电机，跟踪信号，野生动物遥测等领域.航空航天6G晶振,Statek斯塔克SMD晶振,CX18SCSM1-45.0M,50/50/-/I,6pF.

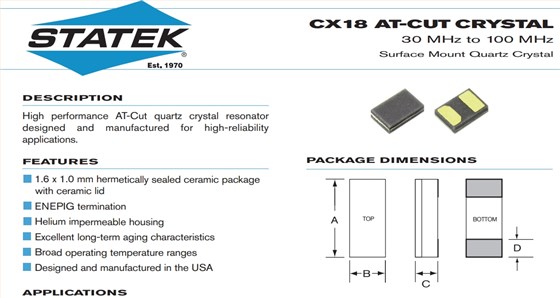

航空航天6G晶振,Statek斯塔克SMD晶振,CX18SCSM1-45.0M,50/50/-/I,6pF 参数表
Fundamental Frequency
32.0 MHz
49.0 MHz
Motional Resitance R1(Ω)
60
45
Motional Capacitance C1 (fF)
1.0
1.2
Quality Factor Q
80,000
60,000
Shunt Capacitance C0 (pF)
0.5
0.5
Calibration Tolerance1
±50 ppm to ± 10 ppm
Load Capacitance
Customer specified (9 pF standard)
Drive Level
100 µW MAX
Frequency-Temperature
Stability1,2,3
±50 ppm to ± 10 ppm (Commercial)
±50 ppm to ± 20 ppm (Industrial)
±50 ppm to ±30 ppm (Military)
Aging, First Year4
3 ppm MAX
Shock Survival
5,000 g, 0.3 ms, 1/2 sine
Vibration Survival5
20 g, 10-2,000 Hz swept sine
Operating Temperature Range3
- 10°C to +70°C (Commercial)
-40°C to +85°C (Industrial)
-55°C to +125°C (Military)
Storage Temperature Range3
-55°C to +125°C
Max Process Temperature
260°C for 20 seconds
Moisture Sensitivity Level (MSL)
This component is hermetically sealed and is not moisture sensitive.

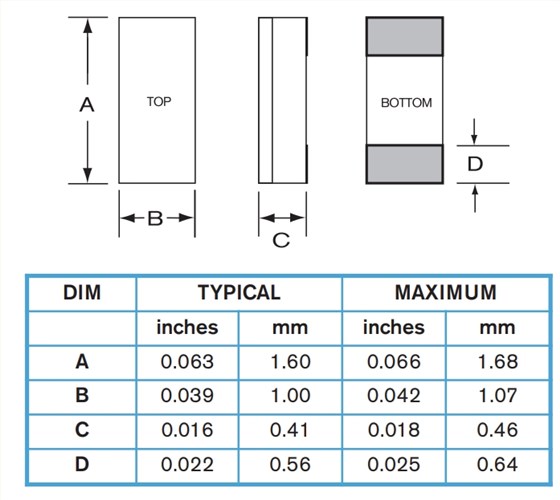

航空航天6G晶振,Statek斯塔克SMD晶振,CX18SCSM1-45.0M,50/50/-/I,6pF尺寸

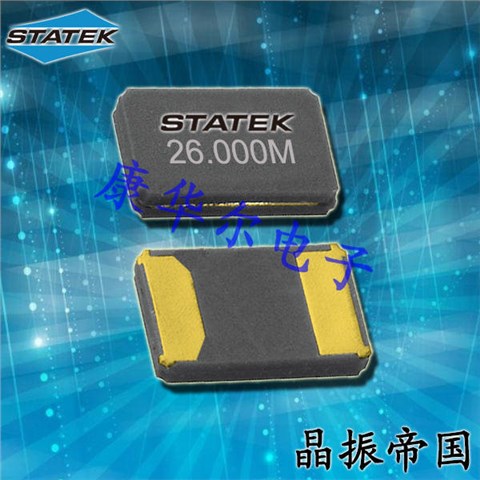

航空航天6G晶振,Statek斯塔克SMD晶振,CX18SCSM1-45.0M,50/50/-/I,6pF
无源晶振产品特性：
