Q13MC30610003,8038谐振器,EPSON时钟晶振

Q13MC30610003,8038谐振器,EPSON时钟晶振

Q13MC30610003是EPSON实时时钟晶振,8038谐振器外形尺寸8.0×3.8mm,经典大体积音叉石英晶振,标准32.768kHz基准频率,专为各类RTC计时电路设计.产品负载电容匹配主流单片机实时时钟方案,常温频稳表现优异,工作温度覆盖-40℃~+85℃,常规工业与消费场景均可稳定运行.金属外壳气密密封,防潮,抗震动,抗温漂,可耐受标准无铅回流焊接工艺,直插贴片两用结构装配灵活.等效串联电阻低,大幅降低设备休眠功耗,卷带批量包装适配自动化贴装,出厂经过老化,温循严苛检测,批次参数一致性高,符合RoHS环保标准,广泛应用工控主板,电表,家电控制板等计时设备.

Q13MC30610003,8038谐振器,EPSON时钟晶振

品牌	EPSON
编码	Q13MC30610003
型号	MC-306晶振
频率	32.768KHz
精度	±20ppm
负载	12.5pF

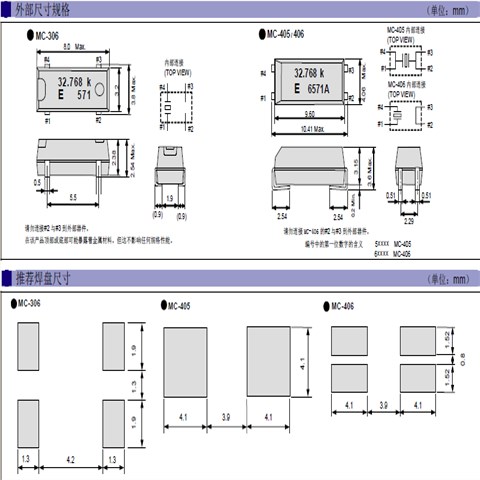

尺寸	8038mm
工作温度	-40+85℃

Q13MC30610003,8038谐振器,EPSON时钟晶振
