Q22FA23V00327,FA-238V智能手环晶振,3225无源晶振

Q22FA23V00327,FA-238V智能手环晶振,3225无源晶振

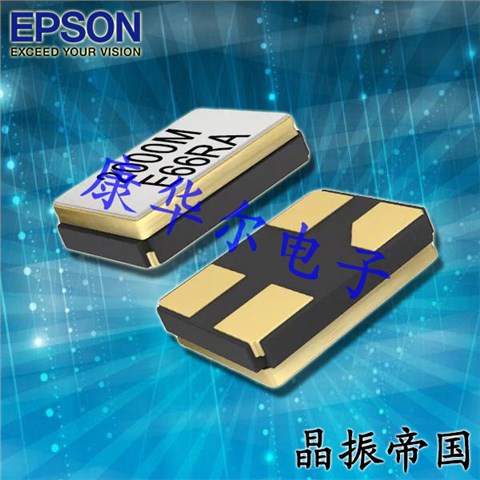

Q22FA23V00327为爱普生FA-238V系列进口晶振,尺寸3.2×2.5mm,是智能手环专用高精度时钟元器件.采用精密AT切割石英晶片,ESR数值低,起振稳定充足,适配手环主控MCU,蓝牙通信电路,保障心率采集,运动数据同步,蓝牙连接稳定流畅.工作温区覆盖-40℃~+85℃,日常佩戴冷热温差,充电发热环境下频率漂移极小,长期使用无音画延迟,断连故障.金属气密密封结构防潮抗振,可抵御运动磕碰,汗液水汽侵蚀,四脚接地外壳屏蔽射频杂波,减少信号干扰.标准负载电容适配主流手环方案,电路调试简单,兼容全自动SMT回流焊,RoHS环保合规,批量参数一致性高,广泛用于健康监测手环,运动智能手环,儿童定位手环主板.

Q22FA23V00327,FA-238V智能手环晶振,3225无源晶振

品牌	爱普生晶振
编码	Q22FA23V00327
型号	FA-238V
频率	12MHz
精度	±20ppm
负载	12pF
尺寸	3225mm
工作温度	-40+85℃

Q22FA23V00327,FA-238V智能手环晶振,3225无源晶振

更多相关晶振参考

编码	品牌	系列	频率	频率容差	负载电容
Q 40.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	40MHz	±10ppm	8pF
Q 26.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	12pF
Q 32.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	8pF
Q 50.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	8pF
Q 32.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	10pF
Q 27.120-JXS11-8-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	10pF
Q 40.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	40MHz	±10ppm	12pF
Q 40.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	40MHz	±10ppm	10pF
Q 25.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	12pF
Q 25.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	12pF
Q 50.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	8pF
Q 50.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	10pF
Q 26.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	12pF
Q 38.40-JXS11-12-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	12pF
Q 25.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	8pF
Q 27.120-JXS11-12-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	12pF
Q 24.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	10pF
Q 38.40-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	10pF
Q 38.40-JXS11-8-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	8pF
Q 50.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	10pF
Q 40.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	8pF
Q 27.120-JXS11-10-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	10pF
Q 27.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	12pF
Q 26.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	10pF
Q 38.40-JXS11-10-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	10pF
Q 27.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	10pF
Q 30.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	12pF
Q 27.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	8pF
Q 30.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	10pF
Q 26.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	8pF
Q 32.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	12pF
Q 25.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	10pF
Q 24.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	12pF
Q 24.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	8pF
Q 30.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	8pF
Q 50.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	12pF
Q 30.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	12pF
Q 27.120-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	12pF
Q 26.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	8pF
Q 40.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	12pF
Q 30.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	10pF
Q 27.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	12pF
Q 24.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	8pF
Q 24.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	10pF
Q 24.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	12pF
Q 38.40-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	8pF
Q 40.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	10pF
Q 25.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	10pF
Q 25.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	8pF
Q 30.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	8pF
Q 26.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	10pF
Q 32.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	8pF
Q 38.40-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	12pF
Q 27.120-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	10pF
Q 27.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	8pF
Q 27.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	10pF
Q 32.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	12pF
